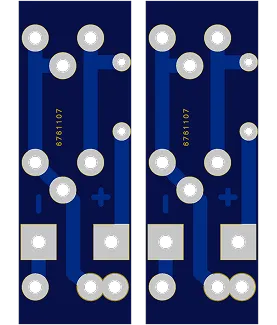

1 Layer FR4 PCB Production Record #FR4-20251224-031
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | FR4 PCB | Quantity | 200 pcs |
| Layers | 1 Layers | Board Type | Single PCB |
| Dimensions | 16.5 x 47 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 6/6mil↑ |
| Surface Finish | HASL Lead Free | Min Hole Size | 0.3mm↑ |
| Solder Mask | Blue | Silkscreen | None |
| Stack-up | Custom | Impedance Control | No |
For the batch of 200 single-sided 1-layer FR4 PCBs, production focused on the compact 16.5 x 47 mm dimensions and standard 1.6 mm board thickness using 1 oz copper. The conventional 6/6 mil track and spacing along with 0.3 mm minimum holes presented no unusual challenges, enabling a direct and efficient manufacturing path without impedance control requirements.
After material preparation and circuit imaging with etching, a blue soldermask was applied according to specifications, with no silkscreen layer needed. We then performed molten solder coating and hot air leveling to deliver a uniform HASL Lead Free finish, followed by full electrical testing to ensure each board performed as designed.
The complete order was fulfilled in 1.5 days, resulting in consistent quality across all units and supporting straightforward assembly for the customer.
Single-sided FR4 boards form the foundation for numerous electronic products. We provide an optimal balance of cost, reliability, and manufacturability for diverse applications.
Discover the most common engineering queries (EQ) in 1 layer FR4 PCB production, from hole plating confusion to solder mask mismatches. Learn practical file preparation tips to minimize delays and speed up approval.
