1 Layer FR4 PCB Production Record #FR4-20260102-003
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | FR4 PCB | Quantity | 20 pcs |
| Layers | 1 Layers | Board Type | Panel PCB |
| Dimensions | 190.2 x 278.9 mm | Copper Weight | 1oz |
| Thickness | 1 mm | Min Track / Spacing | 10/10mil |
| Surface Finish | HASL Lead Free | Min Hole Size | 0.8mm↑ |
| Solder Mask | Green | Silkscreen | None |
| Stack-up | Custom | Impedance Control | No |

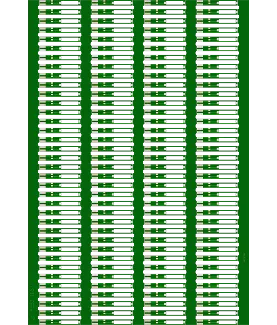

The manufacturing of these 20 single-layer FR4 panel PCBs centered on their substantial panel dimensions of 190.2 x 278.9 mm and 1 mm board thickness. Equipped with 1 oz copper weight, a standard 10/10 mil track and spacing, and 0.8 mm minimum holes, the design followed conventional geometry without impedance control or silkscreen. A custom stackup guided material preparation to achieve the precise mechanical profile.
Circuit imaging and etching defined the single-side conductors with clean edges before green soldermask was applied. The HASL Lead Free surface finish was then created through molten solder coating and hot air leveling, producing a uniform, solderable coating suited to the panel format. Final electrical testing verified continuity and isolation on every panel.
Production progressed steadily through the full sequence, resulting in consistent thickness control and finish quality that matched the order requirements exactly. The completed panels left the line ready for reliable downstream assembly.
