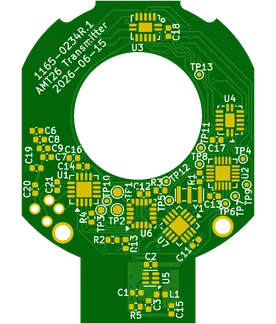

4 Layer HDI PCB Production Record #HDI-20260718-0002

Start HDI PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type HDI PCB Quantity 20 pcs
Layers 4 Layers Board Type Panel PCB
Dimensions 37 x 26.6 mm Copper Weight 1oz
Thickness 0.8 mm Min Track / Spacing 6/6mil↑
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.3mm↑
Solder Mask Green Silkscreen White
HDI Structure 1 Blind/Buried Vias Yes

Manufacturing Timeline

Order Created
Jun 16 01:28
Files Ready
Jun 16 01:28
Engineering Review Completed
Jun 16 01:51
Payment down
Jun 24 01:30
Production Started
Jun 24 09:58
Production Completed
Jul 17 08:19
Progress: 0/6
Engineering Review time: 0.4 h
Production time: 23.0d

Logistics Information

Production Completed→Shipping : 1.4d
Carrier
FedEx IP
Destination
UNITED STATES OF AMERICA
Shipping Method
Express Air
Shipping Time
Jul 18 16:25

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Sequential Lamination
08
Laser Microvia Drilling
09
Via Filling & Plating
10
Solder Mask Application
11
Electroless Nickel Deposition
12
Immersion Gold Deposition
13
Electrical Testing

Manufacturing Summary

This order comprised 20 panels of 4-layer HDI PCBs built on 0.8 mm thin FR4 material with overall dimensions of 37 x 26.6 mm. The HDI configuration featured blind vias implemented through laser drilling and sequential lamination techniques, creating a reliable 1-step structure. Given the thin profile, strict controls were maintained during high-pressure lamination and stack alignment to achieve flatness and layer registration within tolerance. The standard 6/6 mil track and spacing with 1 oz copper layers presented no particular geometry challenges, allowing production focus to remain on the via processes including filling and plating.



Green soldermask and white silkscreen were applied prior to electroless nickel and immersion gold deposition that delivered a uniform ENIG surface finish suitable for assembly. Full electrical testing confirmed circuit integrity across the batch. The complete manufacturing sequence from engineering review through final test extended over 23 days, providing adequate time for thorough inspection and process verification at each critical stage. The resulting boards exhibited strong consistency in via reliability and overall surface quality for this thin-profile HDI PCB run.
