Patient-connected medical devices—from ECG monitors and infusion pumps to portable diagnostic systems—require power architectures that prioritize patient safety, ultra-low power consumption, and long-term reliability. At the core of these systems lies the printed circuit board (PCB), where power distribution networks, isolation barriers, voltage regulators, and analog front-ends must be meticulously designed to meet IEC 60601 standards while minimizing noise, heat, and electromagnetic interference.
For PCB manufacturers and design engineers, medical power design introduces unique constraints: reinforced isolation, creepage and clearance distances, low-quiescent-current components, and robust thermal paths in compact enclosures. Proper PCB-level implementation of these requirements directly determines device safety, battery runtime, measurement accuracy, and regulatory compliance.
Power Architecture Requirements for Patient-Connected Systems
Patient-connected devices must maintain galvanic isolation between the patient interface and the mains-powered or battery-backed sections to prevent leakage currents that could cause electric shock. Modern architectures typically employ a primary AC/DC or battery input stage followed by isolated DC/DC converters that deliver regulated rails to analog, digital, and wireless subsystems.

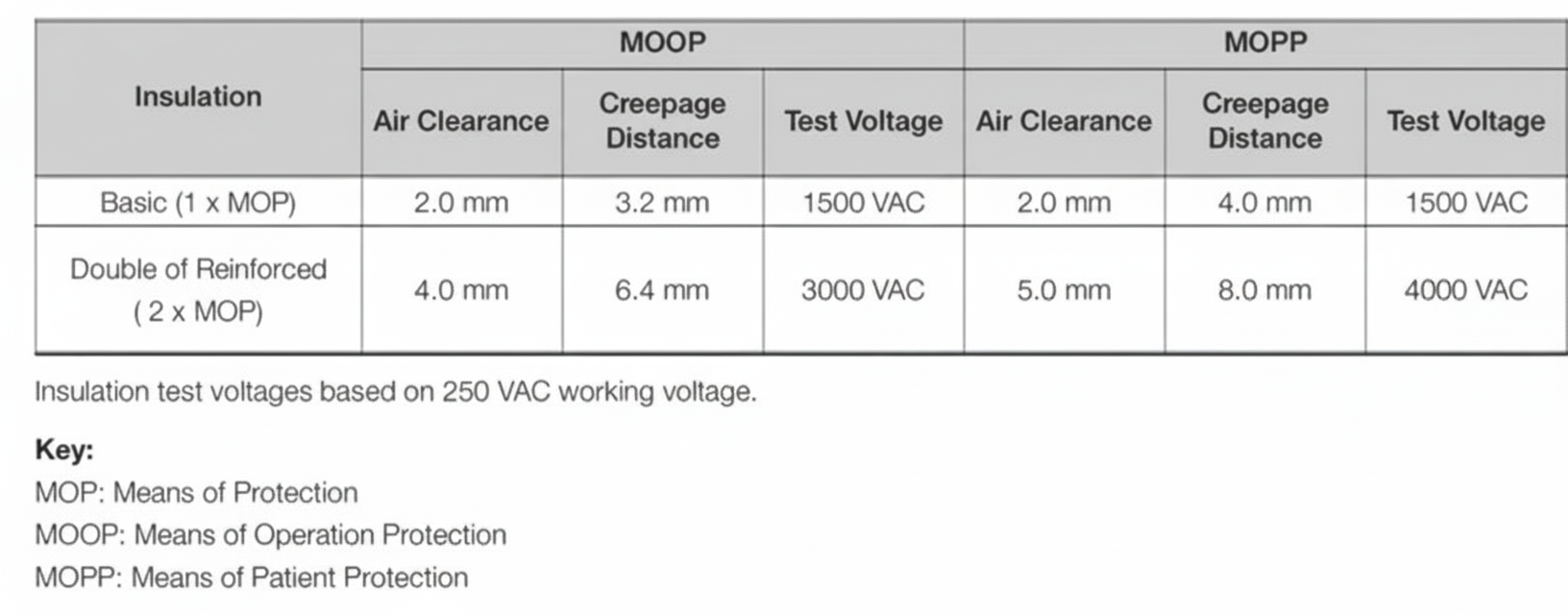

On the medical PCB, designers implement these architectures through careful partitioning of power domains. Dedicated ground planes, star grounding topologies, and sufficient copper pours for high-current paths reduce voltage drops and noise. Isolation transformers or optocouplers are placed with adequate creepage distances (typically 8 mm or more for reinforced isolation at 250 V working voltage), while multilayer stack-ups incorporate extra prepreg layers or slotting to increase effective creepage.
Low-power operation is essential for battery-backed or wearable devices. Quiescent currents below 1 µA in standby modes and efficient conversion at light loads extend runtime from hours to days, directly influencing user adoption and clinical utility.
Secondary DC/DC Isolation Techniques on Medical PCBs
Secondary-side DC/DC converters provide the necessary isolation after the primary power stage. These isolated regulators convert an intermediate bus voltage (commonly 5 V or 12 V) into clean, low-noise rails suitable for sensitive analog circuitry.
PCB layout for isolated DC/DC modules requires:
- Separate primary and secondary ground planes connected only through the isolation barrier
- Controlled-impedance routing for feedback loops to maintain regulation accuracy
- Adequate spacing and slotting between primary and secondary sides to meet safety standards
- Proper placement of input and output capacitors close to the converter pins to minimize loop inductance
Advanced medical power supplies integrate synchronous rectification and spread-spectrum switching to reduce EMI, allowing tighter PCB routing without additional shielding cans. High-Tg laminates and ENIG surface finishes ensure reliable solder joints and long-term performance under thermal cycling and sterilization conditions.
Low-Power Medical Power Supplies Using LTC3388 and Similar ICs
The LTC3388 family exemplifies highly integrated, low-power buck converters optimized for medical applications. These devices deliver up to 200 mA at efficiencies exceeding 90 % while consuming only 720 nA of quiescent current in sleep mode.
On the PCB, key design considerations include:
- Short, wide traces for the high-current switching node to minimize parasitic inductance and voltage spikes
- Proper placement of the inductor and output capacitor to form a tight switching loop
- Separate analog and digital power domains with careful decoupling to prevent ripple from affecting sensor front-ends
- Use of low-ESR capacitors and optional spread-spectrum operation to further suppress EMI
These techniques allow designers to achieve multi-year battery life in implantable or wearable monitors while maintaining the clean power rails required for microvolt-level ECG or SpO2 measurements.
Simplifying Portable Medical Device Design with Integrated Analog ICs
Modern analog ICs combine power management, signal conditioning, and wireless connectivity in single packages, dramatically reducing component count and board area. Examples include highly integrated power management ICs (PMICs) with multiple buck/boost converters, battery chargers, and fuel gauges.
PCB engineers benefit from reduced layout complexity but must still address:
- Thermal relief for power-dissipating sections in dense layouts
- Proper sequencing of power rails during startup and shutdown
- Isolation between patient-connected analog sections and digital processing cores
- High-density interconnect (HDI) or rigid-flex constructions to fit complex power and signal routing into small form factors
These integrated solutions lower BOM cost, improve reliability through fewer solder joints, and accelerate time-to-market while meeting stringent medical power and safety requirements.
PCB Layout, Thermal Management, and Reliability Best Practices
Effective medical power PCB design incorporates:
- Wide copper traces and multiple vias for high-current paths
- Thermal vias and copper pours under power ICs and inductors
- Careful component placement to separate heat sources from temperature-sensitive sensors
- Conformal coatings and potting for moisture and sterilization protection
Failure modes such as thermal runaway, ground bounce, or insufficient isolation clearance are mitigated through early design-for-manufacturability (DFM) reviews, impedance modeling, and thermal simulation. Controlled manufacturing processes—including precise etching, via filling, and medical-grade laminates—ensure consistent performance across production volumes.
Conclusion
Successful patient-connected medical devices ultimately depend on sophisticated PCB power architecture and execution. By prioritizing reinforced isolation, efficient low-quiescent-current conversion, optimized power distribution networks, robust thermal paths, and rigorous manufacturing processes, PCB engineers enable safer, longer-lasting, and more accurate diagnostic and therapeutic equipment. Collaboration between medical device developers and specialized PCB manufacturers remains essential for delivering power solutions that meet both regulatory standards and real-world clinical demands.
