Large vs Small Panel Utilization: Where Each Makes Sense in Production
In FPC fabrication, the choice between a large panel (like 30pcs array) and a smaller panel (like 14pcs) boils down to balancing material efficiency against process risks. From the factory floor, larger panels usually win for high-volume stable designs by spreading fixed processing costs thinner, dropping unit price noticeably once you clear a few hundred pieces. Smaller panels shine in prototypes, complex outlines, or when yield is uncertain because defects impact fewer good parts and handling damage stays contained.
We see the sweet spot shift around 500-1000 pieces depending on part size and complexity. Below that, smaller panels often deliver better overall economics and faster turnaround; above it, larger arrays pull ahead if the design nests cleanly.
Quick Engineering Comparison: FPC 14pcs vs 30pcs Panel Tradeoffs
| Factor | Large Panel (e.g. 30pcs) | Smaller Panel (e.g. 14pcs) |
|---|---|---|
| Unit Cost | Lower due to better material utilization | Higher per piece from increased waste and setup |
| Yield Impact | One defect can scrap more parts; riskier for new designs | Defects affect fewer units; easier to maintain high yield |
| Handling & Stability | More prone to flexing, wrinkling during processing | Better control, less mechanical stress |
| Lead Time | Faster for volume once running | Quicker setup for small runs and prototypes |
| Design Flexibility | Requires good nesting; irregular shapes waste more | More forgiving for odd outlines |
| Typical Applications | Mass production, standardized designs | Prototypes, complex geometries, low-to-medium volume |
Decision Matrix: Choosing Panel Size by Priority
| If your priority is... | Better Choice | Why |
|---|---|---|
| Lowest unit cost in volume | Large Panel (30pcs) | Fixed panel processing costs spread across more circuits; material utilization often exceeds 75-80% |
| Highest first-pass yield | Smaller Panel (14pcs) | Localized defects or handling issues scrap fewer boards |
| Fast prototype delivery | Smaller Panel | Simpler CAM prep and reduced risk during initial runs |
| Complex or irregular outlines | Smaller Panel | Better nesting control and less waste on odd shapes |
| Mass production stability | Large Panel | Consistent process once qualified; lower per-piece overhead |
| Extreme handling sensitivity | Smaller Panel | Less panel flex and easier operator control in fab and assembly |
How Panel Size Drives Cost Differences in FPC Production

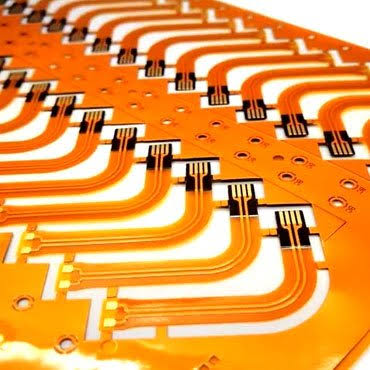

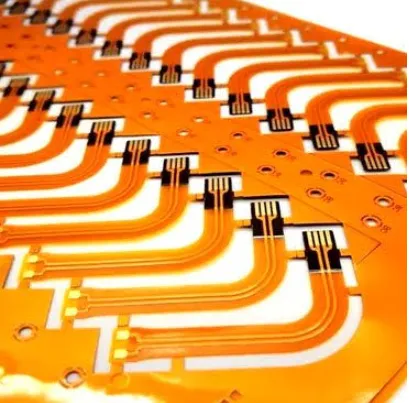

During CAM review, we calculate panel utilization as the biggest lever on FPC pricing. A larger 30pcs array maximizes substrate area on standard processing sheets, spreading polyimide, adhesive, and copper costs effectively. This often cuts unit price by 15-30% compared to 14pcs once volumes justify the setup.
However, the savings erode fast if the design doesn't nest well. Irregular FPC shapes common in wearables or medical devices leave more scrap on big panels, pushing effective material cost back up. Smaller panels let us optimize margins and tabs per array without as much waste, making them the practical choice for runs under a few hundred where setup time dominates.
In production we see the crossover point clearly: large panels pay off strongly above 500-1000 pieces for rectangular or repeatable designs; below that, smaller configurations avoid overpaying for unused real estate.
Yield and Stability Tradeoffs Between Large and Small FPC Panels
Flex materials move during etching, plating, and coverlay lamination. On a 30pcs panel the cumulative stress from handling and thermal cycles raises the chance of wrinkles, delamination, or trace cracks across the whole array. A single registration error or particle can scrap significantly more good circuits.
Smaller 14pcs panels give better dimensional stability and easier tension control in the production line. Yield typically runs 3-8% higher on first articles or complex builds because problems stay isolated. This stability matters most when adding stiffeners or shield layers that increase panel rigidity unevenly.
We monitor this in real runs: for new FPC designs, we default to smaller panels until process parameters prove stable, then scale to larger if volumes support it.
Manufacturing Complexity and Process Risks in Panel Selection
Large panels require more precise fiducial alignment and tighter control on vacuum hold-down during drilling and routing. Any panel bow from flex material amplifies across the larger area, complicating automated processes. Depaneling also carries higher risk of edge damage to individual circuits when tabs connect more densely packed boards.
Smaller panels simplify many of these steps. Operators handle them with less specialized tooling, and inspection stations catch issues faster. The trade-off is increased total processing time across more individual panels, which adds labor and queue time in high-mix environments.
Factory Perspective on DFM Review and Production Strategy for FPC Panels
In the fab, we evaluate panel size during DFM based on part dimensions, outline complexity, layer count, and requested quantity. Large panels demand strong panelization proposals from the designer or our CAM team to maximize utilization without violating minimum spacing and tab rules. We often adjust customer arrays to fit our standard processing sheets for best throughput.
Process stability favors smaller panels for anything with tight tolerances or multiple coverlay/stiffener operations. Tooling wear and setup time increase with larger arrays, so we recommend them primarily for qualified repeat orders. Panel utilization directly affects our quoting—poor nesting on large panels can make small-panel pricing more competitive than expected.
Most factories prefer scaling from smaller to larger panels as the program matures. This approach minimizes early scrap costs and lets us refine parameters before committing high volumes to bigger arrays.
Which Panel Size Should You Choose for Your FPC Order?
Choose Large Panel (around 30pcs) if you:
- Have volume above 500-1000 pieces with repeatable orders
- Design nests efficiently with good rectangular or array-friendly outlines
- Prioritize lowest possible unit cost once process is locked
- Can afford initial qualification runs to validate stability
Choose Smaller Panel (around 14pcs) if you:
- Are in prototype or low-to-medium volume phase
- Have irregular shapes, tight tolerances, or complex stackups
- Need to protect yield and minimize scrap risk on first builds
- Require faster initial delivery and simpler handling downstream
There is no universal winner in FPC 14pcs vs 30pcs panel decisions. The right choice depends on where you sit in the product lifecycle and your specific design constraints.
FAQs
Q1: Does larger panel size always mean lower cost for flex PCBs?
A1: No. It does for high-volume runs with good nesting, but poor utilization on irregular designs can erase the advantage. We often see smaller panels win on total landed cost for orders under 500 pieces.
Q2: How does panel size affect FPC yield in manufacturing?
A2: Larger panels increase the impact of any single defect or handling issue. Smaller panels isolate problems, typically delivering higher effective yield during development and for sensitive builds.
Q3: When should we switch from small to large panels in a flex PCB program?
A3: After stabilizing the process with a smaller panel configuration and confirming volumes justify the change. Most factories recommend this transition around the 500-1000 piece mark for standard designs.
Q4: Does assembly house preference influence panel size choice?
A4: Yes. SMT lines often prefer smaller panels or added carriers for flex to reduce warping during paste printing and reflow. We coordinate panelization with both fab and assembly needs.
Q5: Can we mix panel sizes within one FPC order?
A5: Technically possible but rarely economical. It complicates CAM, inspection, and tracking. Better to standardize on one size per release unless volumes split dramatically.
