Introduction to Radioisotope Power Systems
Radioisotope batteries, also known as isotope batteries or radioisotope thermoelectric generators (RTGs), convert the energy from radioactive decay into electrical power. They provide reliable, maintenance-free energy in environments where solar power, chemical batteries, or fuel cells are impractical due to extreme temperatures, darkness, or inaccessibility.
Notable examples include powering the Chang'e-4 lunar probe during the lunar night and enabling long-duration missions on Mars with systems like the Multi-Mission Radioisotope Thermoelectric Generator (MMRTG) on the Curiosity rover. Unlike nuclear fission reactors, these devices rely on the natural decay of radioisotopes, producing heat that is converted to electricity through thermoelectric or other mechanisms.
Radioisotope Batteries vs. Nuclear Fission Power
Radioisotope batteries differ fundamentally from nuclear power plants. Fission reactors use controlled chain reactions to generate high-temperature steam for turbines. In contrast, radioisotope systems harness the steady, predictable heat from spontaneous radioactive decay. This results in simpler, solid-state designs with no moving parts in thermoelectric variants, offering exceptional reliability over decades.
Core Working Principles and Energy Conversion
The primary energy source is a radioisotope fuel (commonly Pu-238, Sr-90, or Po-210) that releases high-energy particles (alpha or beta) during decay. This process generates heat independent of external conditions such as temperature, pressure, or electromagnetic fields.
Main Conversion Mechanisms:
- Thermoelectric Conversion (RTGs): The most common approach. Heat from the isotope creates a temperature gradient across thermoelectric materials (e.g., bismuth telluride, lead telluride, SiGe), generating voltage via the Seebeck effect. Typical efficiencies range from 5-20%.

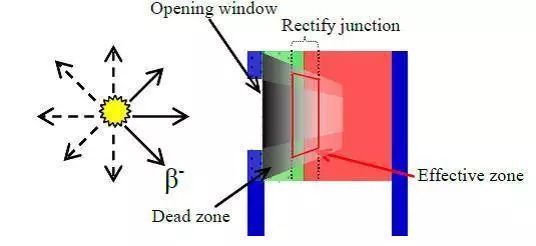

- Direct Conversion Methods: Include betavoltaic (radiation-voltaic) cells that use beta particles to create electron-hole pairs in semiconductors, similar to photovoltaic operation but powered by radiation.
- Other Approaches: Thermionic emission, thermophotovoltaic, and heat-engine systems.
Low-voltage types (mV to ~1V) suit most power electronics, while high-voltage variants reach hundreds or thousands of volts for specialized applications.

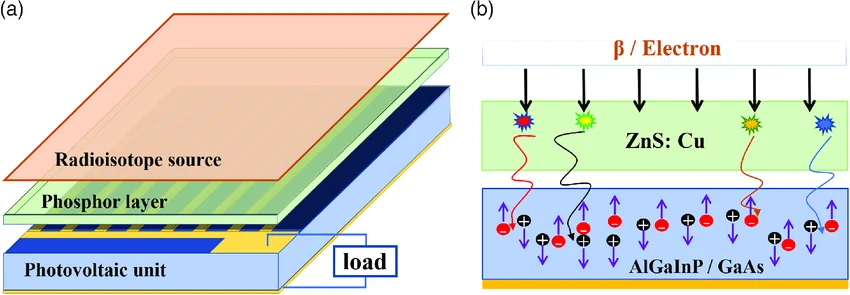

Key Materials and Construction
A typical radioisotope battery features layered construction for safety and performance:
- Fuel Core: Sealed radioisotope (e.g., Pu-238O2 pellets) with high power density and long half-life.
- Conversion Layer: Thermoelectric couples or semiconductor junctions.
- Radiation Shielding: Materials like graphite, pyrolytic carbon, zirconium carbide, or heavy metals to contain radiation and helium buildup.
- Outer Shell: High-strength alloys (aluminum, titanium, or platinum alloys for medical use) with thermal management features.
Advanced claddings such as pyrolytic carbon and ZrC enhance containment and thermal conductivity while mitigating mechanical stress from helium generation.
Major Applications in Harsh Environments
- Aerospace and Space Exploration: RTGs power deep-space probes, rovers, and landers where solar energy is insufficient. Examples include Voyager, Cassini, and Mars rovers, delivering consistent power for 10-20+ years.
- Medical Devices: Compact betavoltaic or thermoelectric units have powered pacemakers and other implants, providing years of operation without replacement surgeries.
- Industrial and Remote Systems: Underwater sensors, polar stations, navigation beacons, and remote monitoring equipment benefit from decades-long operation in extreme conditions.
- Emerging Uses: MEMS devices, potential micro-power sources for consumer electronics, and specialized high-voltage applications.
Electronics and PCB Integration Challenges
Radioisotope power systems require sophisticated low-power electronics for voltage regulation, power conditioning, monitoring, and load management. Key engineering considerations include:
- Radiation Hardening: Electronics must withstand prolonged radiation exposure without degradation.
- Thermal Management: Efficient heat sinking and isolation between the hot isotope source and sensitive circuits.
- Power Management Circuits: DC-DC converters, MPPT-like control (where applicable), and ultra-low-power monitoring systems to maximize limited output.
- High-Reliability Design: Redundancy, fault tolerance, and long-term stability for mission-critical applications.
Role of Advanced PCBs in Radioisotope Power Systems
High-reliability PCBs and flexible PCBs play a critical enabling role in radioisotope battery-powered systems:
- Radiation-Tolerant Materials: Use of polyimide, ceramic substrates, or specialized laminates that maintain performance under radiation and extreme temperatures.
- Thermal Solutions: Heavy copper layers, thermal vias, and insulated metal substrates (IMS) for effective heat distribution and dissipation.
- High-Density Interconnects: HDI and rigid-flex PCBs support compact integration of power conditioning, telemetry, and sensor electronics in space-constrained designs.
- Signal Integrity and EMI Control: Careful layout for low-noise analog circuits and robust power distribution in electrically noisy or high-vibration environments.
- Manufacturing and Assembly: Precision processes, traceability, and stringent quality systems (e.g., aerospace standards) ensure long-term reliability of the electronic subsystems interfacing with the nuclear heat source.
Electronics manufacturing partners experienced in extreme-environment applications help optimize these aspects, bridging the isotope generator with downstream digital and control systems.
Industry Outlook
Advancements in higher-efficiency thermoelectric materials, betavoltaic semiconductors, and safer isotope containment continue to expand the viability of radioisotope power. While regulatory, safety, and cost challenges remain, these systems are indispensable for missions and installations where no other power source matches their longevity and reliability.
For OEMs developing electronics for aerospace, medical, or remote industrial applications, collaboration with specialized PCB manufacturers ensures seamless integration of power electronics with radioisotope sources.
FAQ
Q1: What is the difference between RTGs and betavoltaic batteries?
A1: RTGs use thermoelectric conversion of decay heat, while betavoltaic cells directly convert beta particle energy into electricity via semiconductor junctions.
Q2: Why are radioisotope batteries ideal for space missions?
A2: They provide consistent power independent of sunlight, with multi-year to multi-decade operational life in extreme temperatures and radiation environments.
Q3: How do PCBs support radioisotope power systems?
A3: Through radiation-hardened materials, advanced thermal management, high-reliability layouts, and precision manufacturing that ensure stable power conditioning and system integration.
