Modern network security infrastructure — including firewalls, routers, switches, and related systems — depends heavily on advanced printed circuit boards (PCBs) to deliver reliable, high-throughput performance under continuous operation. Whether protecting enterprise perimeters, enabling secure key distribution, or facilitating NAT traversal, the underlying hardware must handle complex packet processing, stateful inspection, encryption, and high-speed interfaces while maintaining signal integrity, thermal stability, and long-term reliability.
At Aivon, we specialize in manufacturing PCBs that power these demanding security applications, from multilayer boards for next-generation firewalls (NGFWs) to rugged designs for industrial and telecommunication deployments.
Firewall Fundamentals: Security Zones, Policies, and Stateful Processing

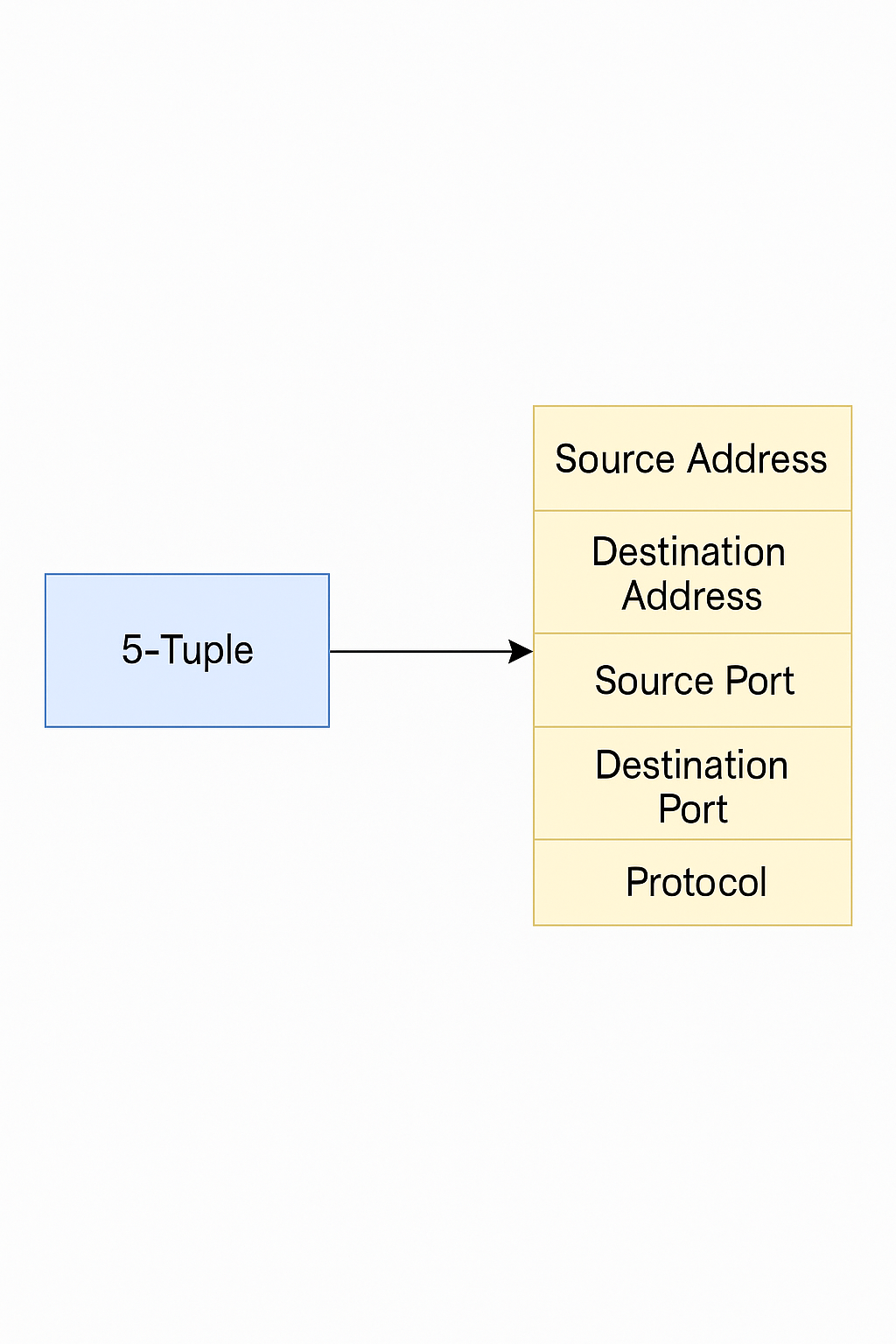

Firewalls form the cornerstone of network security by enforcing boundaries between trusted and untrusted zones. Typical implementations divide interfaces into zones such as Trust (internal networks), Untrust (external/Internet), DMZ (for public-facing servers), and Local (the device itself). Security policies then control traffic based on five-tuple matching (source/destination IP, ports, protocol), user, time, and other attributes, with actions to permit, deny, or apply deep content inspection.
Stateful inspection relies on a session table that tracks connection states for TCP, UDP, and ICMP. Only the first packet of a new flow undergoes full policy evaluation; subsequent packets are processed efficiently against the established session. This architecture demands high-speed memory access and parallel processing — requirements directly addressed through optimized PCB layouts featuring controlled impedance traces, dedicated power planes, and high-density interconnects (HDI).
Server-map tables further extend capabilities by handling protocol-specific behaviors, such as active FTP data connections initiated from the server side. These mechanisms require precise timing and low-latency packet forwarding, placing strict demands on PCB signal integrity to prevent jitter or crosstalk at multi-gigabit speeds.

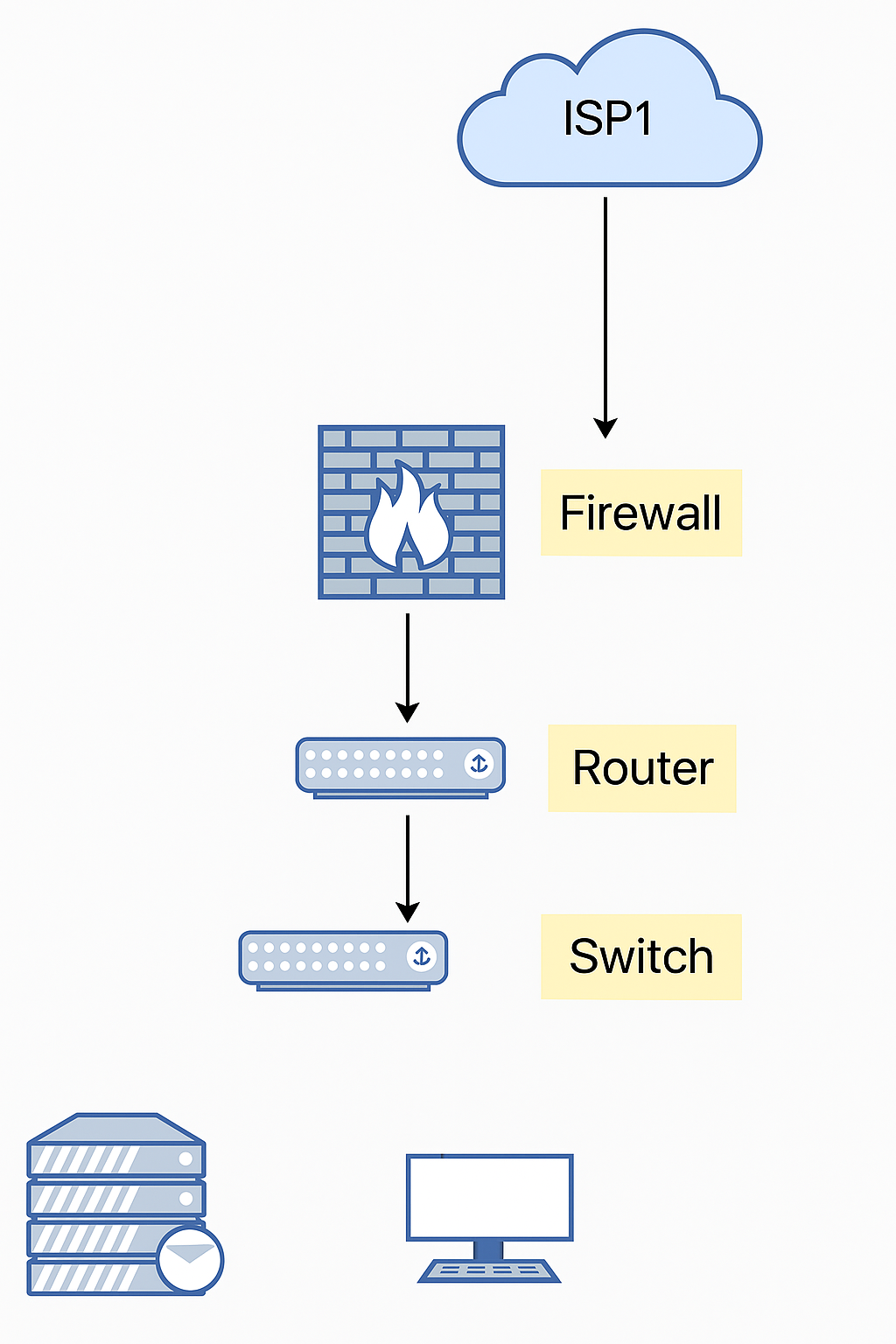

Firewalls vs. Routers and Switches: Functional and Hardware Distinctions
While routers focus on Layer 3 IP forwarding and path determination, and switches optimize Layer 2 connectivity with MAC learning and VLAN support, firewalls add deep packet inspection, stateful tracking, and security policy enforcement. In practice, enterprise devices often integrate these functions, requiring PCBs that support mixed high-speed Ethernet interfaces (1G/10G/25G+), cryptographic accelerators, and specialized ASICs or NPUs (Network Processing Units).
PCB design here must prioritize:
- Signal integrity (SI) for high-speed SerDes lanes and backplanes.
- Power integrity (PI) to support power-hungry processors and multiple voltage domains.
- EMI/EMC compliance critical for certification in security and telecom environments.
Multilayer stack-ups with thick copper planes aid thermal dissipation in fan-cooled or fanless enclosures common to 24/7 security appliances.
Next-Generation Firewalls (NGFW): Key Parameters and Performance Drivers
NGFWs from vendors like Palo Alto Networks, Cisco ASA, Fortinet FortiGate, Check Point, Juniper SRX, SonicWall, and Sophos integrate application awareness, intrusion prevention (IPS), VPN, antivirus, and advanced threat protection. Critical parameters include throughput under full inspection, concurrent sessions, new connections per second, latency, and high-availability (HA) features.
Hardware implications are significant:
- High-speed interfaces and aggregation: Link aggregation (static or dynamic) and virtual wire modes require precise differential pair routing and length matching.
- NAT and policy routing: Complex SNAT/DNAT processing and WAN attribute handling demand robust memory subsystems and low-latency interconnects on the PCB.
- HA and bypass: Optical port bypass, heartbeat links, and configuration synchronization necessitate reliable connector footprints and redundant power distribution.
- Security modules (WAF, IPS, botnet detection): These benefit from tight integration with dedicated hardware accelerators, requiring dense BGA fanouts and advanced via technologies (back-drilled or filled vias) to minimize stubs.
Thermal management is paramount. Continuous deep packet inspection generates significant heat, making copper thickness, thermal vias, and metal-core or high-Tg materials essential choices for reliable long-term operation.
Key Distribution and Encryption in Network Security Hardware
Secure communication relies on robust key management. Symmetric key distribution often uses a Key Distribution Center (KDC) or protocols like Kerberos, while public key infrastructure (PKI) depends on Certification Authorities (CAs) to issue signed certificates.
On the hardware side, PCBs in security appliances must accelerate cryptographic operations:
- Dedicated crypto engines or hardware security modules (HSMs).
- Secure boot and key storage with anti-tamper features.
- Low-noise power supplies to protect sensitive random number generation for key material.
Material selection (e.g., low-loss laminates for RF sections) and careful routing help maintain timing accuracy for encryption/decryption at line rate.
NAT Traversal Solutions: Enabling Secure Remote Access
Tools like NPS (nps-npc), frp, EW, and ngrok provide practical NAT traversal for exposing internal services (SSH, RDP, web apps, databases) through public endpoints. These reverse proxy and tunneling solutions are widely used for remote access, debugging, and IoT deployments.
The client-server architecture stresses client-side devices (often embedded or edge systems) and server-side proxies. PCB considerations include:
- Compact, cost-effective designs for client hardware with reliable Ethernet PHY integration.
- Support for encryption and compression to secure tunnels without excessive CPU overhead.
- Ruggedized boards for industrial environments where these tools enable secure connectivity.
High-density interconnects and impedance-controlled routing ensure stable performance even in variable network conditions.
PCB Engineering Challenges in Security Device Manufacturing
Designing and fabricating PCBs for firewalls and network security systems involves several critical considerations:
1. High-Speed Design and Signal Integrity Multi-gigabit Ethernet, PCIe, and processor interconnects require meticulous impedance control, crosstalk minimization, and length matching. Back-drilling, blind/buried vias, and HDI build-ups are often necessary.
2. Thermal Management Always-on security appliances benefit from heavy copper layers, thermal vias under hot components, and optimized stack-ups to spread heat effectively, especially in compact or sealed enclosures.
3. Power Distribution Multiple voltage rails for CPUs, NPUs, PHYs, and memory demand robust planes, decoupling, and careful PDN (Power Distribution Network) analysis to prevent noise that could corrupt packet processing or cryptographic operations.
4. Reliability and Compliance Telecom, enterprise deployments and industrial PCB often require high-Tg materials, halogen-free laminates, and designs meeting stringent EMI, vibration, and temperature cycling standards. Controlled impedance and tight tolerances ensure consistent performance across production volumes.
5. Miniaturization and Density HDI, microvias, and advanced surface finishes support the shrinking form factors of modern security appliances while maintaining I/O count and thermal performance.
Choosing and Manufacturing the Right PCB for Your Security Solution
When selecting a firewall or building custom security hardware, match throughput, session capacity, interface types, and HA features to your network scale. On the manufacturing side, partner with an experienced PCB supplier capable of supporting complex multilayer builds, tight tolerances, and rapid iteration for security product development.
Aivon provides end-to-end support — from design for manufacturability (DFM) feedback to volume production — helping security device manufacturers achieve the performance, reliability, and cost targets essential for competitive solutions.
Whether developing next-generation enterprise firewalls, implementing secure key management hardware, or deploying NAT traversal gateways, the quality of the underlying PCB directly impacts system uptime, threat detection efficacy, and overall network security posture.
Ready to discuss your security hardware PCB requirements? Contact the Aivon team for expert guidance on stack-up design, material selection, and manufacturing solutions tailored to demanding network security applications.
