Intrusion Detection Systems (IDS) and Intrusion Prevention Systems (IPS) are essential components in modern network security architectures. IDS focuses on monitoring and alerting on suspicious activities, while IPS actively blocks threats in real time. These systems demand continuous high-speed traffic analysis, accurate anomaly detection, and reliable response capabilities. Behind this performance lies sophisticated printed circuit board (PCB) technology that enables real-time packet capture, deep analysis, and sustained operation under heavy security workloads.
At Aivon, we specialize in manufacturing high-performance PCBs for IDS/IPS appliances and network security hardware. This article explores the core principles of IDS and IPS, detection mechanisms, intrusion symptoms, investigation methods, and situation awareness — all examined through the critical lens of PCB design, material selection, fabrication, and reliability engineering.
Core Differences Between IDS and IPS

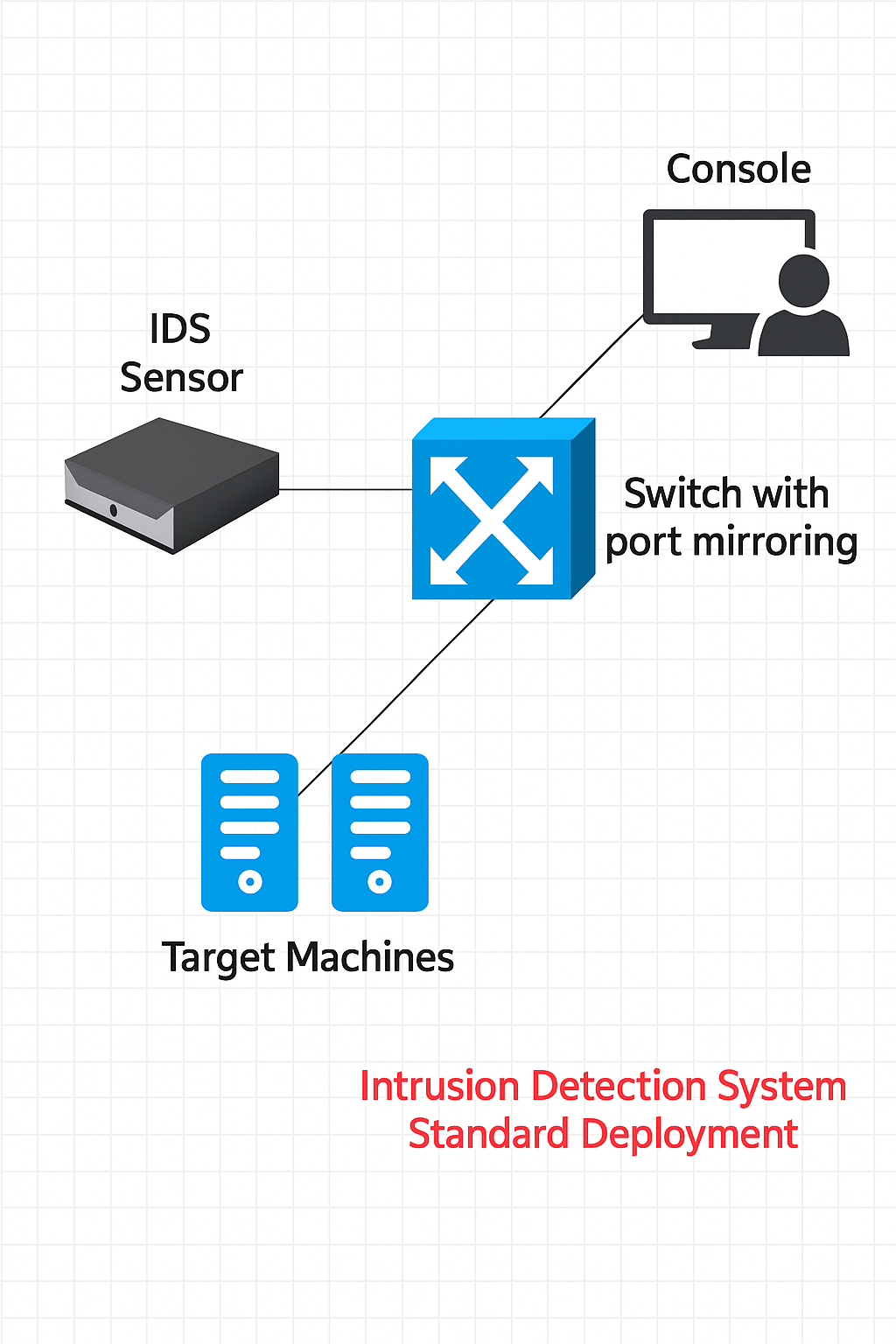

IDS (Intrusion Detection Systems) operate in a passive or out-of-band mode, analyzing copies of network traffic to identify potential threats using signature-based, anomaly-based, or behavior-based methods. They generate alerts but do not block traffic directly.
IPS (Intrusion Prevention Systems) work inline, inspecting traffic in real time and actively dropping malicious packets, resetting connections, or applying blocking rules. This inline operation places significantly higher demands on hardware performance and reliability.
Both systems require low-latency packet processing and high-throughput analysis. These requirements directly influence PCB architecture: multilayer designs (12–24+ layers) with high-speed SerDes interfaces, dedicated NPUs or FPGAs for pattern matching, and optimized memory buses for signature databases and session tracking.
Detection Mechanisms and PCB Performance Requirements
Effective threat detection relies on multiple complementary techniques:
- Signature-Based Detection: Matches known attack patterns. This demands fast content inspection engines, requiring PCBs with excellent signal integrity for high-speed Ethernet interfaces (10G/25G/100G+) and minimal jitter on data paths.
- Anomaly and Behavior-Based Detection: Identifies deviations from normal traffic baselines. These methods involve complex statistical analysis and machine learning inference, stressing power delivery networks (PDN) and thermal management.
- Graph Techniques for Network Threat Detection: Advanced systems model network behavior as graphs to detect lateral movement, command-and-control channels, or unusual node relationships. Real-time graph processing requires high-bandwidth memory interfaces and low-latency interconnects on the PCB, often achieved through HDI (High-Density Interconnect) stack-ups with blind and buried vias.
Data Security Situation Awareness Mechanisms aggregate multi-source telemetry for comprehensive visibility. This continuous correlation workload necessitates robust thermal solutions — heavy copper PCBs (2oz+), dense thermal via arrays under processors, and high-Tg laminates to maintain stability during prolonged high-load operation.
Server Intrusion Symptoms, Investigation, and Response
Common signs of server intrusion include unusual CPU/memory usage, unexpected network connections, modified system files, and anomalous logs. Rapid investigation and response are critical to limit damage.
Hardware-level reliability directly impacts response effectiveness. PCB designs for IDS/IPS must support:
- Redundant power distribution to prevent false negatives during power fluctuations.
- Stable clock distribution for accurate timestamping of security events.
- High-reliability connectors and surface finishes (ENIG/ENEPIG) to maintain probe and monitoring port integrity over years of continuous service.
Manual Checks for System Intrusion and Hardware Implications
Manual verification often involves checking running processes, open ports, file integrity, and network connections. While these are software-oriented tasks, the underlying hardware must provide trustworthy telemetry. Poor signal integrity or thermal-induced timing drift on the PCB can lead to inaccurate packet captures or corrupted monitoring data, undermining the entire detection chain.
Advanced PCB manufacturing practices — including impedance control, back-drilling, and comprehensive electrical testing — help ensure the monitoring hardware itself remains trustworthy and free from subtle degradation that could mask real intrusions.
PCB Design Challenges in IDS/IPS Hardware
IDS/IPS appliances operate in demanding environments where any performance degradation can result in missed threats:
Signal Integrity (SI): High-speed traffic inspection requires precise impedance matching, length-tuned differential pairs, and minimized crosstalk to maintain packet fidelity during deep inspection.
Thermal Management: Continuous DPI and behavioral analysis generate substantial heat. Solutions include optimized copper thickness, thermal vias under high-power components, and advanced laminates that prevent throttling or component failure.
Power Integrity (PI): Multiple voltage domains for processors, memory, and accelerators need robust PDN design with heavy ground planes and strategic decoupling to avoid noise that could corrupt detection algorithms.
EMI/EMC Compliance: Security devices often require strict certification. Proper layer stacking, grounding strategies, and shielding techniques on the PCB help meet these standards.
Reliability and Longevity: High-Tg FR4, halogen-free materials, and rigorous burn-in testing ensure the system maintains detection accuracy throughout its operational life in enterprise and data center deployments.
Best Practices for PCB Manufacturing in Intrusion Detection Systems
When developing PCBs for IDS and IPS solutions, consider the following:
- Use HDI technology for higher component density and shorter signal paths in compact 1U/2U appliances.
- Implement low-loss laminates for RF-sensitive or high-frequency sections.
- Prioritize full DFM (Design for Manufacturability) analysis to balance performance, cost, and yield.
- Conduct thorough signal integrity simulation and thermal analysis during the design phase.
- Apply strict process controls during etching, lamination, and drilling for consistent batch quality.
Conclusion
Understanding IDS and IPS reveals that their effectiveness depends not only on sophisticated detection algorithms but fundamentally on the underlying hardware platform. From real-time graph-based threat analysis to reliable situation awareness and rapid intrusion response, every capability traces back to expert PCB design and manufacturing.
Aivon delivers specialized PCB solutions for intrusion detection and prevention systems, helping security hardware manufacturers achieve the signal integrity, thermal performance, and long-term reliability required in today’s threat landscape. From prototype validation to high-volume production, we support optimized stack-ups and materials tailored to your specific IDS/IPS requirements.
For expert PCB engineering support on your next intrusion detection or prevention project, contact the Aivon team to discuss your performance, density, and reliability targets.
