2 Layer FR4 PCB Production Record #FR4-20260421-006
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | FR4 PCB | Quantity | 5 pcs |
| Layers | 2 Layers | Board Type | Single PCB |
| Dimensions | 198 x 128 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 6/6mil↑ |
| Surface Finish | HASL Lead Free | Min Hole Size | 0.3mm↑ |
| Solder Mask | Green | Silkscreen | White |
| Stack-up | Default | Impedance Control | No |

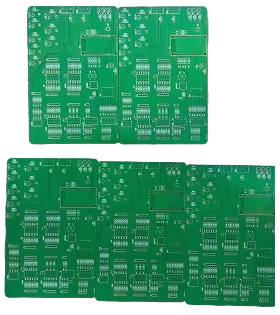

Five single 2-layer FR4 PCBs were produced for this order, each measuring 198 × 128 mm with a finished thickness of 1.6 mm and 1 oz copper weight. The design called for 6/6 mil minimum track and spacing together with 0.3 mm minimum hole size, placing the geometry within conventional parameters. Without impedance control requirements, engineering review and material preparation focused on maintaining precise registration and etch uniformity during circuit imaging.
Green solder mask and white silkscreen were applied prior to surface finishing. Molten solder coating followed by hot air leveling created a uniform HASL Lead Free layer that supports reliable component assembly. Every board then completed full electrical testing to confirm continuity and isolation across the small five-piece run.
The entire sequence from initial review through final inspection took 2.8 days. Process parameters were adjusted for the board size and thickness to minimize warp and ensure consistent copper distribution, resulting in stable mechanical and electrical performance suited to the customer’s application.
This order also received positive feedback from the customer regarding the consistent quality and reliable delivery. View the full customer review→
2 layer FR4 PCBs deliver cost-effective solutions for most electronic designs. Their simple structure enables consistent quality and efficient production cycles.
