AI****5A
- Order ID: H8P-C1RF-AI****5A
- Rigid-Flex, 8-Layer, 69.1mm * 82.14mm, Green, ENIG (Immersion Gold), 5 PCS
What Our Customer Say

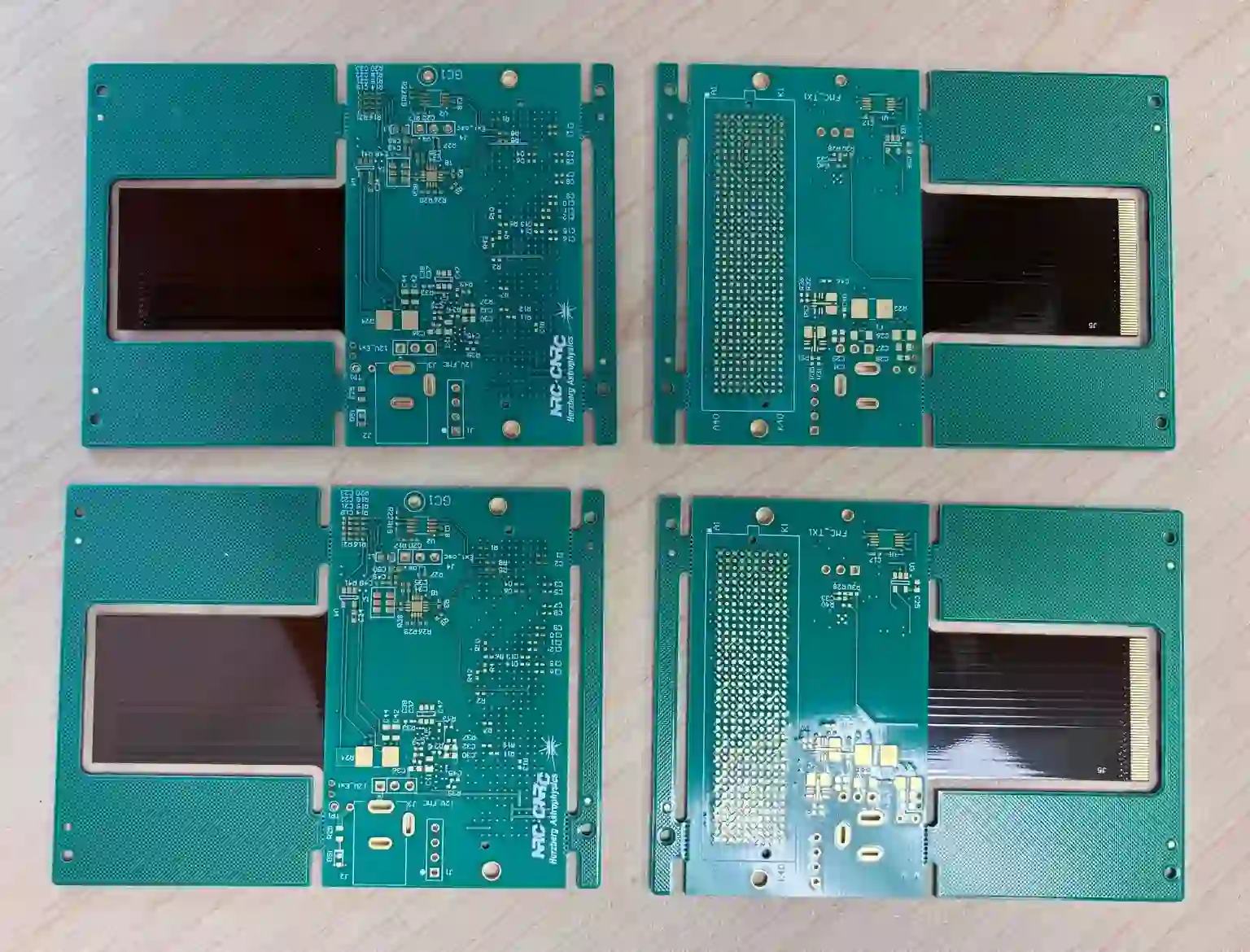

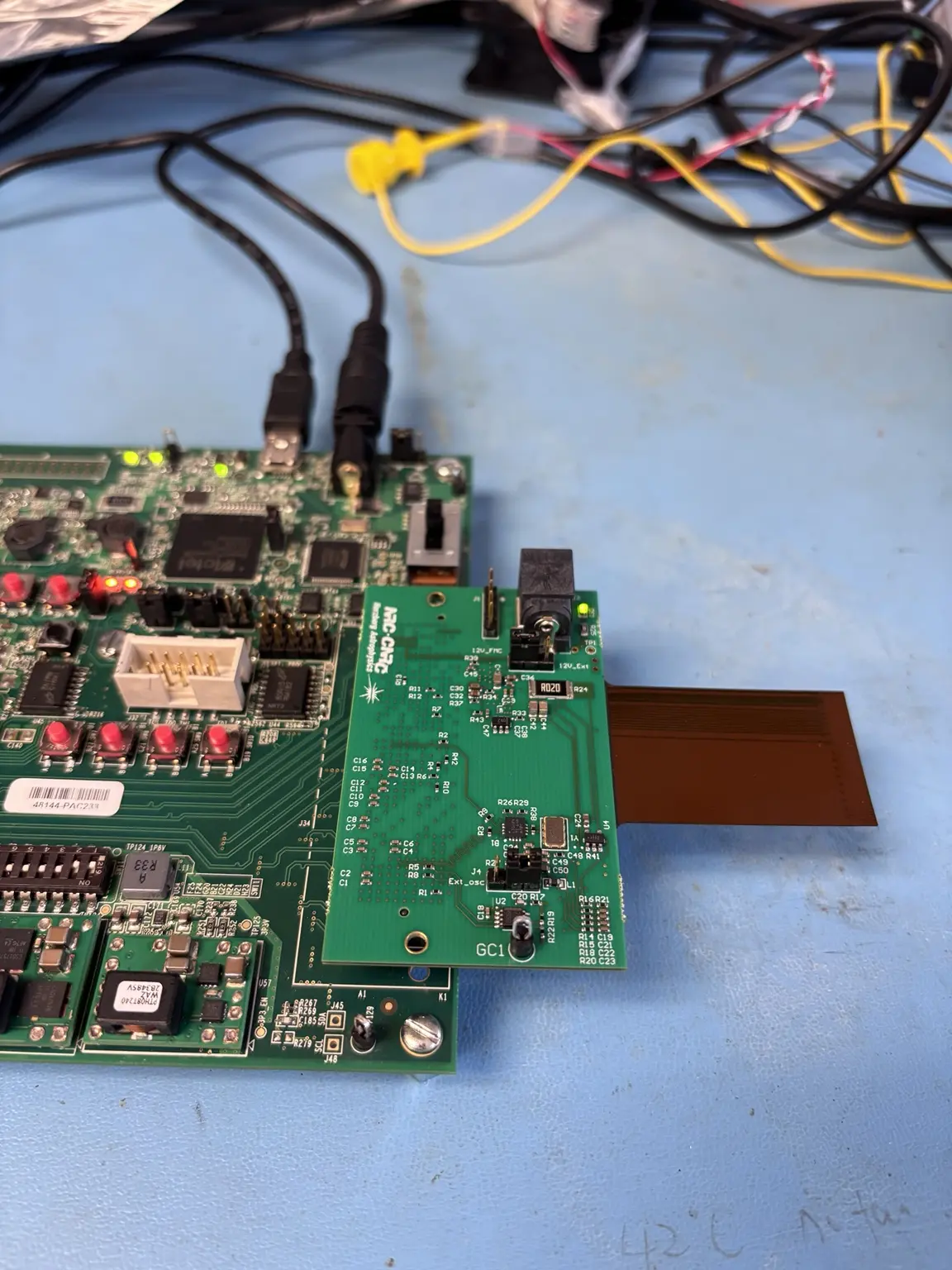

Hi AIVON Team, Thank you for following up. I received order GP8288 successfully and have now also completed the initial testing. Everything is working properly so far. This was a relatively complex rigid-flex prototype, including an 8-layer rigid section, 3-layer flex section, controlled-impedance high-speed differential routing, and specific mechanical requirements for the flex and contact areas. I especially appreciated the engineering support before fabrication. Your team worked with me through several EQ reviews to optimize the rigid-flex stack-up, materials and manufacturing details, and also recalculated the 50-ohm single-ended and 100-ohm differential controlled-impedance traces based on the final production stack-up. The finished boards look very good. The rigid-flex transition, flex section, contact area, solder mask/coverlay, PCB fabrication and assembly quality are all clean and well finished. More importantly, I have now installed one of the assembled boards on our FPGA evaluation platform and performed the initial bring-up and testing. So far, the board is operating as expected and I have not found any fabrication or assembly issues. I have attached several photos showing the fabricated boards, assembled boards, rigid-flex construction, and the board during actual bench testing. Overall, I am very satisfied with both the engineering communication and the final manufacturing quality. Thank you to the AIVON engineering, fabrication and assembly teams for the support on this project. Best regards, Erning
