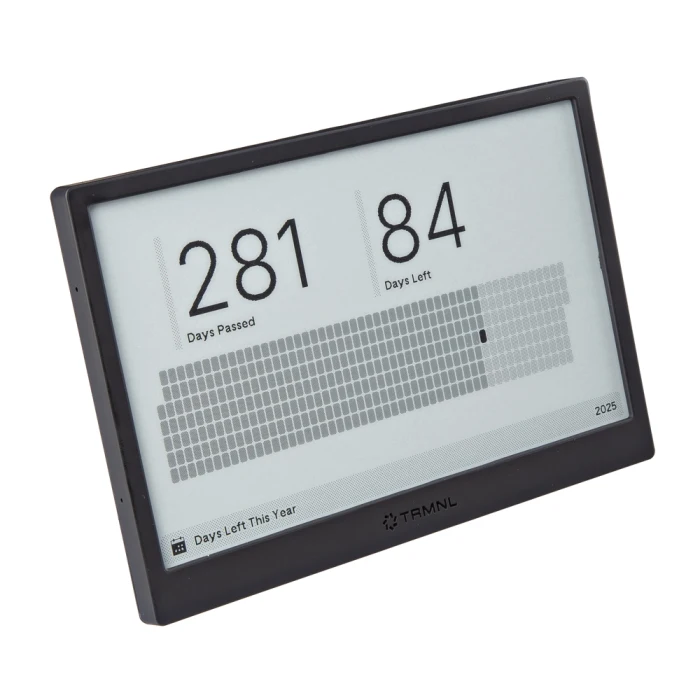

E-Ink displays, also known as electronic paper or electrophoretic displays, have transformed reading devices, digital signage, and low-power IoT applications. Unlike traditional emissive screens (LCD/OLED), E-Ink reflects ambient light like real paper, delivering exceptional readability and energy efficiency. For electronics engineers and PCB manufacturers, E-Ink technology presents unique requirements in driver circuitry, power management, and flexible substrate integration.
Working Principles of E-Ink Technology

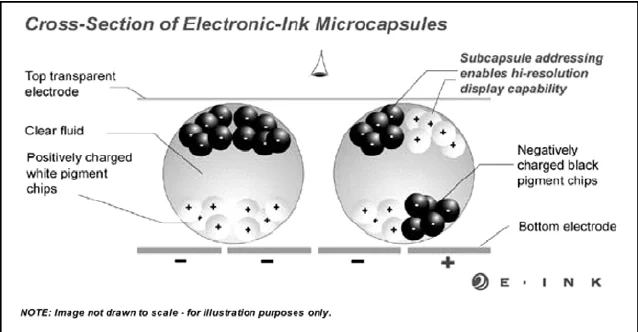

E-Ink displays rely on electrophoretic technology. Tiny microcapsules (about 100 microns in diameter) filled with a clear fluid contain charged pigment particles - typically negatively charged black particles and positively charged white particles.
When an electric field is applied via electrodes on the display substrate:
- White particles move to the top surface -> pixel appears white
- Black particles move to the top surface -> pixel appears black
The display is bistable: once particles reach their position, they remain there without continuous power. This bistability is the foundation of E-Ink's ultra-low power consumption - energy is only required during image updates or refreshes.
Modern variants include:
- Advanced color filters or multiple particle types for limited color reproduction
- Microcup structures for improved durability and faster response
- Active matrix backplanes (TFT) for higher resolution and faster updates
Key Advantages of E-Ink Displays
Ultra-Low Power Consumption
Power is drawn only when changing the image. This enables months of battery life in e-readers and makes E-Ink ideal for always-on applications like shelf labels and smart cards.
Superior Readability
Matte, paper-like surface with high contrast and wide viewing angles. Performs exceptionally well in direct sunlight and causes less eye strain during prolonged reading compared to backlit displays.
Thin and Flexible Form Factors
Compatible with flexible substrates and rigid-flex PCBs, enabling curved or rollable displays.
Environmental Benefits
No constant backlight reduces energy use and heat generation. Many implementations support partial updates for even greater efficiency.
Main Drawbacks and Technical Limitations
Slow Refresh Rates
Typical full-screen refresh takes 0.5 - 2 seconds (or longer for color versions), making E-Ink unsuitable for video or highly interactive applications. Ghosting can occur without proper waveform driving.
Limited Color and Brightness
Most commercial displays are grayscale. Color versions exist but suffer from lower brightness, slower updates, and higher cost.
Temperature Sensitivity
Performance can degrade in extreme cold or heat, affecting particle mobility.
Manufacturing Complexity
Requires precise control of microcapsule deposition and electrode patterning, which demands advanced PCB/FPC fabrication and lamination processes.
PCB Design and Electronics Manufacturing Considerations for E-Ink Systems
Integrating E-Ink displays into products creates specific challenges and opportunities for PCB and FPC manufacturers:
High-Voltage Driver Circuits: E-Ink requires specialized driver ICs capable of generating precise voltage waveforms (often ±15V to ±40V). PCBs must support clean high-voltage traces with proper isolation from low-voltage digital sections.
Flexible Circuit Integration: Many E-Ink applications use flexible printed circuits (FPC) to connect the display to the main board. Controlled impedance, fine-pitch connectors, and robust bend relief are critical for reliability under flexing.
Power Management: Although average consumption is low, peak currents during updates require stable power delivery networks (PDN), efficient DC-DC converters or charge pumps, and adequate decoupling.
Signal Integrity and Timing: Waveform timing is crucial to minimize ghosting. PCB layouts must minimize noise on control lines (SPI, I2C, or parallel interfaces) and ensure precise timing from the microcontroller or dedicated controller.
Thermal and Mechanical Reliability: While E-Ink generates little heat, mechanical integration with flexible substrates demands careful stack-up design, strain relief, and environmental sealing for long-term durability.
Scalability: From small e-reader panels to large signage, manufacturing must support high-yield lamination of display films onto custom PCBs or rigid-flex assemblies.
Industry Applications and Trends
E-Ink is widely used in e-readers (Kindle, etc.), electronic shelf labels (ESL), smart wearables, industrial instrumentation, and emerging applications in medical devices and automotive displays. Trends include faster partial updates, improved color gamuts, integration with NFC/energy harvesting, and hybrid displays combining E-Ink with LCD/OLED layers.
Supporting E-Ink Technologies Through Advanced PCB Manufacturing
High-performance E-Ink systems depend on expert PCB fabrication and assembly. Capabilities in flexible circuits, high-voltage design, precision lamination, and mixed-signal integration enable OEMs to create reliable, energy-efficient products that leverage the unique strengths of electronic paper technology.
From prototype development to volume production, optimized electronics manufacturing ensures E-Ink displays deliver their full potential in readability, battery life, and durability.
FAQs
Q1: How does E-Ink achieve such low power consumption?
A1: Its bistable nature means the display retains the image without power after the initial update, unlike LCDs that require constant backlight and refresh.
Q2: What are the main limitations of E-Ink displays?
A2: Slow refresh rates, limited color reproduction in most implementations, and reduced performance in extreme temperatures.
Q3: Can E-Ink displays be used with flexible PCBs?
A3: Yes. E-Ink is highly compatible with flexible and rigid-flex PCB solutions, making it ideal for wearable, curved, or foldable electronics.
