Flexible PCBs can be folded to 180 degrees, but it's rarely straightforward. In practice, most FPCs handle it only under specific conditions. Push the limits without proper design and you'll see trace fractures or coverlay cracks after just a few cycles.
The question "can flexible PCB be folded 180 degrees" comes up constantly in layout reviews. The FPC fold angle limit depends heavily on material stackup, bend radius, and whether the application is static or dynamic. I've reviewed hundreds of these designs. The ones that survive production and field use follow tight rules around radius and copper placement.
What Does Folding an FPC 180 Degrees Actually Mean?
Folding FPC refers to bending a flexible circuit into a compact shape to fit the mechanical structure of a device. A 180-degree fold brings two sections of the circuit back toward each other, but whether this is practical depends on the bend radius, flex thickness, copper construction, and whether the fold is static or repeated.
Why 180° Folding Often Causes Immediate Problems

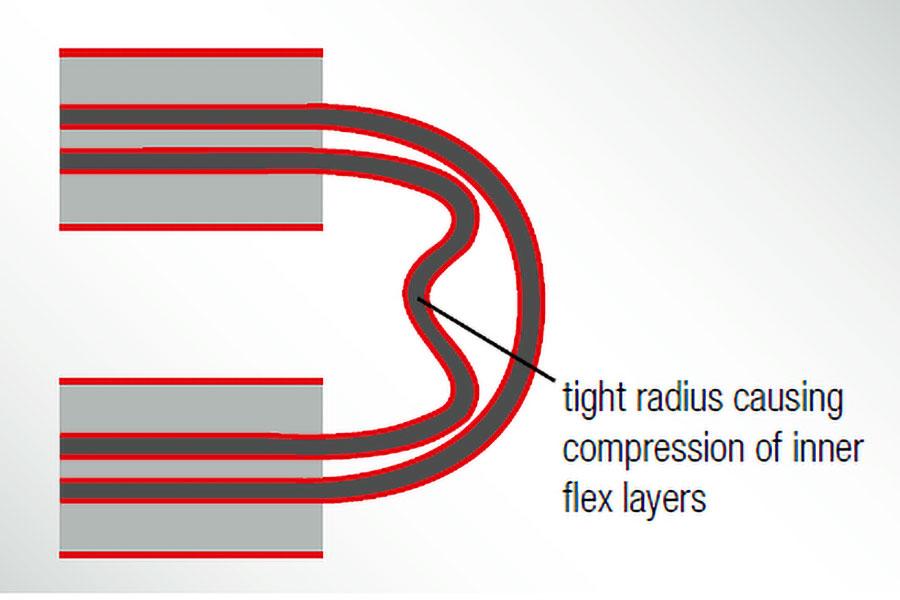

A true 180° fold creates an extremely tight inner radius. For standard 1oz copper on 25μm polyimide, the minimum recommended dynamic bend radius is usually 6-10 times the total flex thickness. At 180°, that requirement gets violated quickly unless you deliberately design for it.
Copper strain becomes the dominant failure mode. The outer layer stretches while the inner compresses. Exceed the material's elongation limit and microcracks form. These start small but propagate fast under thermal cycling or vibration.
Key Factors That Determine FPC Fold Angle Limit
Material thickness dominates. A single-layer adhesiveless polyimide with 12μm copper tolerates tighter folds than a 4-layer stack with adhesive. Typical total thickness for reliable 180° static folds stays under 100-150μm.
Copper weight matters too. 0.5oz or 1oz works best. Heavier copper increases stiffness and cracking risk. Rolled annealed copper outperforms electrodeposited in bend areas because of its grain structure.
Coverlay type and thickness add another variable. Thicker coverlay improves protection but reduces flexibility. Many designs use 12.5μm or 25μm polyimide coverlay with acrylic adhesive. Adhesiveless options give better performance at tight radii but cost more.
Reinforcements and stiffeners in the bend zone kill foldability. Keep them well away from the fold area. Even silkscreen or soldermask in the wrong spot can create stress risers.
Bend Radius Guidelines for 180° Folds
For static applications, aim for an inner flex PCB bend radius of at least 0.5mm to 1mm depending on stackup. Dynamic applications need significantly larger radii — often 5mm or more for repeated folding. These aren't arbitrary numbers; they come from IPC-6013 and real fab feedback on yield and reliability.
Static vs Dynamic Applications — Critical Difference
Static folds are common in fold-and-stay designs like flip phones or compact modules. The PCB gets folded once during assembly and stays there. These tolerate tighter radii because fatigue isn't the main concern.
Dynamic flexing is different. Hinges, sliding mechanisms, or wearables that open and close repeatedly demand much more attention. Copper fatigue life drops dramatically below certain radius thresholds. I've seen designs pass initial 180° testing only to fail after 5,000-10,000 cycles in the lab.
The transition between static and dynamic isn't always obvious. Even "static" designs experience some movement during thermal expansion or shipping vibration. Treat borderline cases as dynamic.

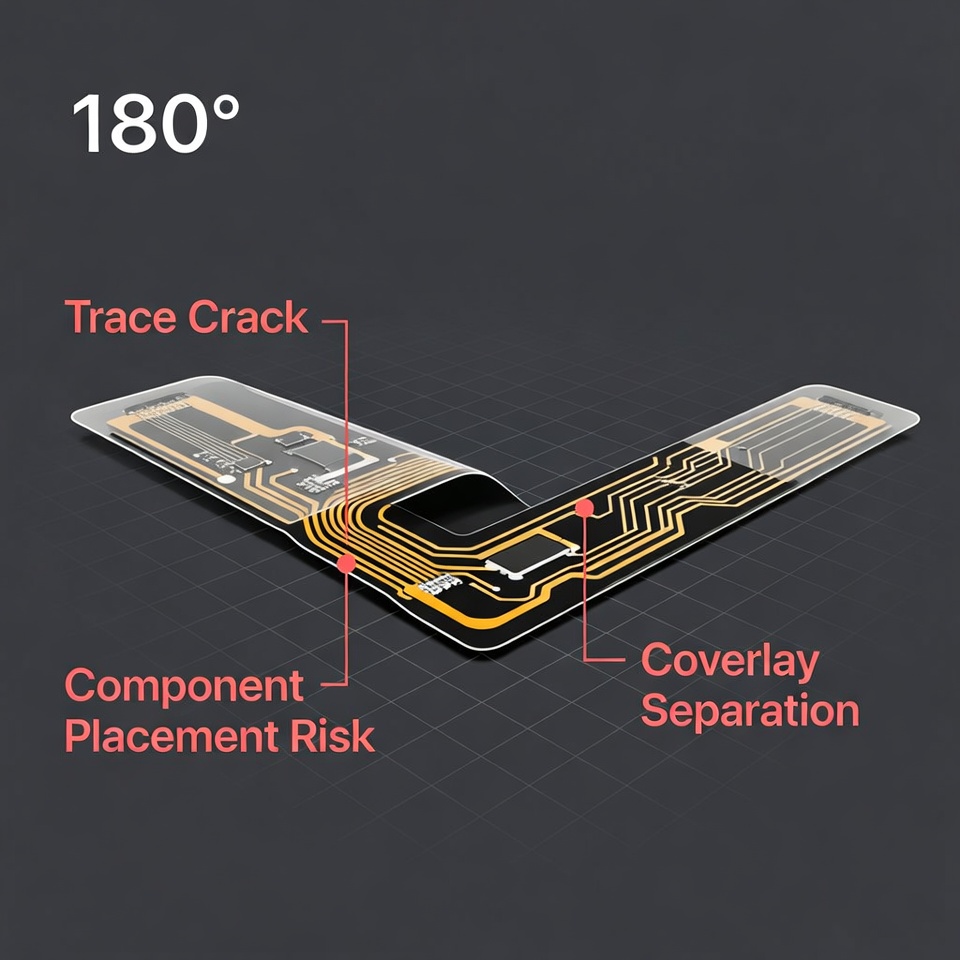

Common Failure Modes in Over-Folded FPCs
Trace cracking near the fold entry point tops the list. Delamination between copper and polyimide follows. Coverlay tenting or wrinkling at the apex creates assembly issues later. In extreme cases, the entire flex tears along the bend line.
During DFM reviews, we frequently flag designs where components sit too close to the fold. Even small SMD parts create stress concentrations that crack solder joints over time.
Practical Layout Adjustments That Actually Work
Keep the bend area free of components and vias. Route traces perpendicular to the fold line when possible. Parallel traces experience more strain. Use teardrops and generous neckdowns at the transition zones.
For multilayer flex, consider selective layer removal in the bend region — the "I-beam" or "window pane" construction. This reduces thickness locally and improves foldability while maintaining rigidity elsewhere.
Specify the exact bend radius and fold direction clearly on the fabrication drawing. Many fabs will ask for a sample folded part or detailed notes. Include the number of expected flex cycles if it's dynamic.
Material and Stackup Recommendations
Stick with proven combinations for 180° capability. Common working stackups include 1-layer 50μm polyimide with 18μm copper and thin coverlay, or 2-layer adhesiveless constructions. Avoid heavy adhesive layers in the flexing zone.
Talk to your fab early. Factory capabilities vary. Some can reliably produce tighter folds with specialized processes, but yield drops and cost rises fast.
Testing and Validation Steps
Don't rely on simulation alone. Build prototypes and perform actual fold testing. Cycle counters, thermal chambers, and visual inspection under magnification reveal issues early. IPC standards give baseline guidance, but application-specific testing is essential.
Watch for "book cover" effect where multiple folds create cumulative stress. Also check for crease formation after repeated folding — a sure sign the radius or material is marginal.
How to Design an FPC for 180-Degree Folding
Designing an FPC for a 180-degree fold requires more than selecting a flexible circuit material. The mechanical design and circuit layout must work together so that the fold occurs in a controlled area without creating excessive stress.
The following design considerations can help improve the reliability of a folding FPC.
Keep Components Away from the Fold Zone
Components and other rigid features should generally be kept away from areas that experience significant bending.
Placing components directly in the fold zone can increase local stiffness and create stress concentrations. When the application requires a compact folded structure, the component placement should be planned together with the mechanical folding path.
Control the Bend Radius
The bend radius should be established before finalizing the FPC layout. Instead of designing the circuit first and determining the folding radius afterward, the mechanical requirements should be considered during the initial design stage.
A controlled bend radius helps reduce excessive strain on the copper and insulating layers. The appropriate value depends on the FPC construction and whether the application involves static folding or repeated dynamic flexing.
Avoid Stress Concentration in the Fold Area
Sharp corners, abrupt changes in width, closely spaced vias, and other layout features can create localized stress in the flex area.
A smoother transition between rigid and flexible sections can help distribute mechanical stress. The folding area should also have enough space for the circuit to bend without being compressed or forced against nearby mechanical structures.
Consider the Folding Direction
The folding direction should be defined during the mechanical and PCB design stages. Folding the circuit in an unintended direction can place additional stress on the copper and dielectric layers.
For applications with a defined 180-degree fold, the FPC outline, copper routing, coverlay, and surrounding enclosure should be checked together to make sure the actual assembly matches the intended folding path.
What Can Happen When an FPC Is Folded Too Tightly?
A folding FPC may experience reliability problems when the bend radius is too small or when the fold is repeated beyond the capability of the circuit construction.
The potential failure mode depends on the material stack-up, copper type, folding frequency, and location of the bending area.
Copper Cracking
Excessive mechanical strain can cause cracks in the copper layer, particularly when the FPC is repeatedly bent beyond its intended radius.
Copper cracking can interrupt electrical continuity and may eventually result in an intermittent or open circuit. For dynamic folding applications, the expected number of bending cycles should therefore be considered during material and construction selection.
Coverlay or Insulation Damage
The coverlay protects the conductive layers and contributes to the overall mechanical structure of the FPC. Excessive folding can place stress on the coverlay or other insulating materials.
Damage to these layers can reduce the protection of the copper and may create additional reliability concerns, particularly in applications where the FPC is repeatedly flexed.
Delamination
Excessive mechanical stress can also affect the bonding between different layers of an FPC. If the circuit is repeatedly folded beyond its intended mechanical limits, localized separation between layers may occur.
Proper material selection, lamination control, bend-radius design, and manufacturing quality are important for reducing this type of risk.
How Can Folding FPC Reliability Be Improved?
For applications that require a compact 180-degree fold, reliability should be considered from the initial design stage through manufacturing and assembly.
A reliable folding FPC should have a construction that matches its actual mechanical requirements. This includes selecting appropriate materials, controlling the flex thickness, defining the bend radius, and keeping sensitive features away from the fold zone.
For dynamic applications, the expected bending frequency and service life should also be considered. Prototyping and mechanical testing can help verify whether the final FPC construction performs as expected under actual operating conditions.
FAQ
Q1: What is a folding FPC used for?
A1: Folding FPCs are commonly used when a circuit needs to fit into a compact or three-dimensional product structure. Typical applications include foldable displays, cameras, wearable devices, compact consumer electronics, and assemblies where the available installation space is limited.
Q2: What is the difference between a folding FPC and a regular FPC?
A2: A folding FPC is designed with a specific folding requirement in mind, including the location and direction of the fold. A regular FPC may provide flexibility without being designed for a defined folding configuration or compact folded assembly.
Q3: Can an FPC be folded during assembly?
A3: Yes. An FPC can be shaped or folded during assembly when the circuit and mechanical structure have been designed for that process. The assembly method should avoid forcing the circuit into an unintended shape or placing mechanical pressure on sensitive areas.
Q4: How should an FPC be stored before assembly?
A4: FPCs should be stored according to the manufacturer's packaging and environmental requirements. They should be protected from excessive moisture, contamination, and mechanical deformation before assembly. Avoid placing heavy objects on flexible circuits or storing them in a permanently distorted condition.
Q5: Can folded FPCs be used in small electronic devices?
A5: Yes. One of the main advantages of FPCs is their ability to accommodate limited installation space. A folded FPC can route signals around components or through narrow mechanical spaces while reducing the space required by a conventional rigid PCB.
Q6: What should be checked before ordering a folding FPC?
A6: Before production, provide the manufacturer with the required folded shape, installation space, fold location, circuit dimensions, layer structure, and expected assembly conditions. Mechanical drawings or 3D models can also help the manufacturer verify the FPC against the final product structure.
