Small Text Saves Space But Larger Text Wins on the Production Floor
In FPC manufacturing, the choice between small silkscreen text (under 1.0mm height) and larger text (1.2mm+) boils down to a daily trade-off we see in CAM review: space utilization versus reliable legend reproduction. From the factory standpoint, larger text is almost always the safer, lower-risk option for most production runs because it maintains higher yield and reduces inspection time. Small text shines only when board real estate is extremely tight in high-volume consumer products where every square millimeter counts and assembly is highly automated.

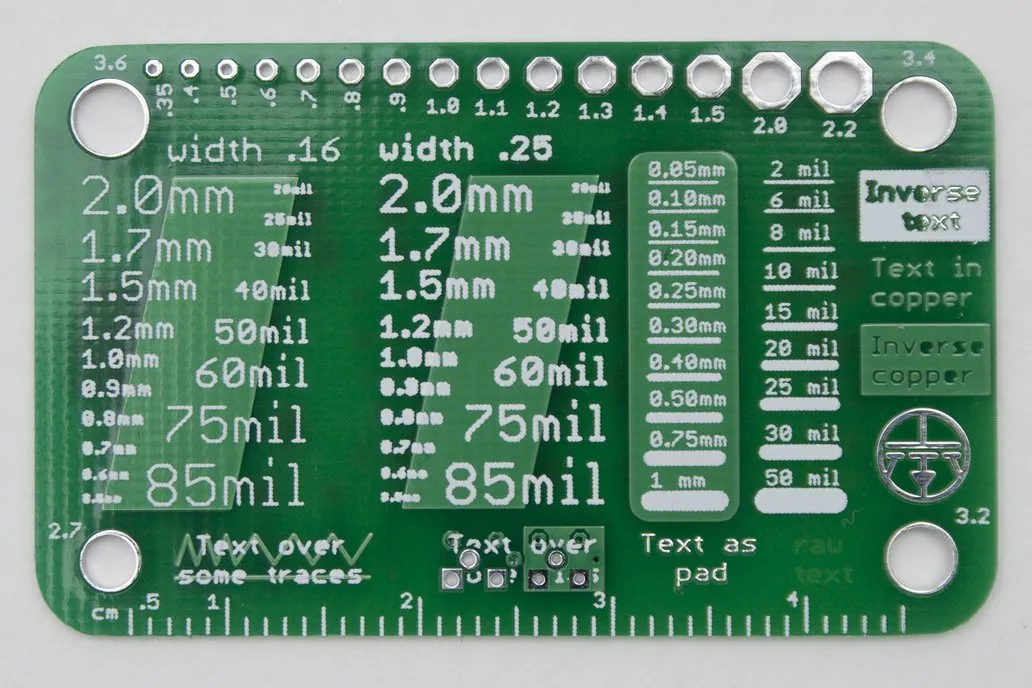

FPC Silkscreen Text Size Comparison at a Glance
| Parameter | Small Text (<1.0mm) | Larger Text (≥1.2mm) |
|---|---|---|
| Manufacturing Yield | Lower (more defects from ink spread) | Higher (stable process) |
| Space Utilization | Excellent for dense layouts | Requires more clearance |
| Readability in Assembly | Poor under normal lighting | Clear for operators |
| Production Cost Impact | Higher due to rework/inspection | Lower overall |
| Lead Time | Longer (extra DFM fixes) | Standard |
| Best For | Consumer electronics, ultra-dense FPCs | Industrial, medical, automotive flex |
Decision Matrix: Choosing Text Size Based on Project Priorities
| If your priority is... | Better Choice | Why from Factory View |
|---|---|---|
| Maximum space savings / densest layout | Small Text | Allows tighter component placement on limited FPC area |
| Highest production yield and lowest defects | Larger Text | Reduces ink bleeding and registration issues common in flex processing |
| Fastest turnaround and minimal DFM revisions | Larger Text | Fewer CAM adjustments and cleaner panel utilization |
| Best readability for manual assembly or field service | Larger Text | Operators can identify references quickly without magnification |
| Cost optimization in high-volume consumer runs | Small Text (if tested) | Saves material but only after validating process capability |
| Reliability in harsh environments (vibration, flexing) | Larger Text | Legend holds up better during repeated bending |
Space Utilization vs Readability Trade-offs in FPC Legend Design
During layout review, small text clearly wins when trying to squeeze component designators into crowded flex areas. Designers often push down to 0.8mm or even 0.6mm height to avoid overlapping traces or stiffeners. In production, however, we see the downside immediately: ink spread on polyimide surfaces causes characters to blur or bridge, especially with standard legend inks.
Larger text (1.2–1.5mm) gives operators reliable visibility but eats into valuable routing space. The practical compromise we recommend in most FPC silkscreen text size comparisons is 1.0–1.2mm height with 0.15–0.20mm stroke width. This range balances density and manufacturability without constant process tweaks.
Manufacturing Complexity and Yield Differences
Small characters increase manufacturing complexity significantly on flex materials. The substrate moves and stretches during printing and curing, making precise registration harder. We often see yield drops of 5-15% when pushing below 1.0mm because fine features require slower print speeds, tighter process controls, and more frequent screen cleaning. Larger text allows standard parameters with stable high-volume output.
In FPC silkscreen text size comparison, the larger option consistently shows better first-pass success rates, especially on multi-layer or dynamically flexing boards where legend adhesion faces extra stress.
Cost Implications Across Production Volumes
For prototypes or low volumes, small text rarely justifies the extra engineering time during DFM. Larger text keeps costs predictable. In mass production, the equation shifts slightly—consumer gadgets can absorb higher setup costs for optimized small legend if it enables smaller overall FPC size, but industrial applications prefer larger text to minimize field failures and warranty claims.

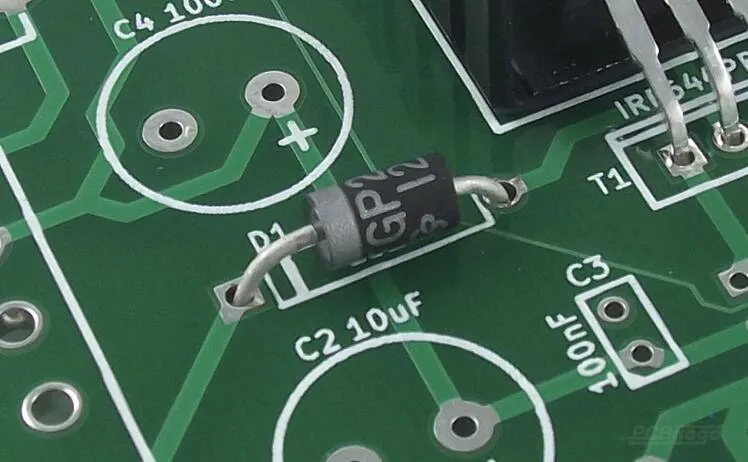

Factory Perspective on FPC Silkscreen Legend Processing
In our CAM department, legend size is one of the first flags during DFM review for flex PCBs. Small text triggers requests for vector adjustments, font changes, or even removal of non-critical markings. We evaluate panel utilization carefully—larger text can sometimes improve overall yield by reducing scrap from localized printing defects. Process stability favors 1.2mm+ because it tolerates minor substrate movement better during the full fabrication flow, including coverlay lamination and final testing. For high-reliability orders, we strongly advise against pushing minimums unless the customer provides validated samples.
Performance in Different Product Categories
Consumer electronics (smartphones, wearables) often succeed with smaller text because assembly is highly automated and boards see limited flex cycles post-production. Industrial and automotive flex circuits demand larger, more robust legend for traceability and maintenance in the field. Medical devices usually fall in the middle but lean conservative due to regulatory requirements on identification.
Which FPC Silkscreen Text Size Should You Choose?
Choose Smaller Text (0.8–1.0mm) if you:
- Face severe space constraints in consumer-grade dense FPCs
- Have automated optical assembly with barcode/ machine reading support
- Can validate the design through multiple prototype runs with your fabricator
- Prioritize overall product miniaturization over manual readability
Choose Larger Text (1.2mm+) if you:
- Need high yield and fast production scaling
- Target industrial, automotive, or medical applications
- Want to minimize DFM iterations and inspection overhead
- Require clear identification during field service or repair
Frequently Asked Questions
Q1: What is the absolute minimum silkscreen text height for reliable FPC production?
A1: Most factories can attempt 0.8mm, but yield and clarity suffer. We recommend staying at or above 1.0mm for consistent results unless space forces otherwise.
Q2: Does smaller text significantly increase FPC manufacturing cost?
A2: Yes, through lower yields, extra inspection, and potential rework. The impact is more noticeable in medium-to-high volumes where defects accumulate.
Q3: How does flexing affect legend durability for small vs larger text?
A3: Smaller text cracks or wears faster under repeated bending. Larger, thicker strokes hold up better in dynamic flex applications.
Q4: Can we use different text sizes on the same FPC for critical vs non-critical markings?
A4: Yes, this is a common and effective approach. Use larger text for key references and smaller for secondary labels after DFM approval.

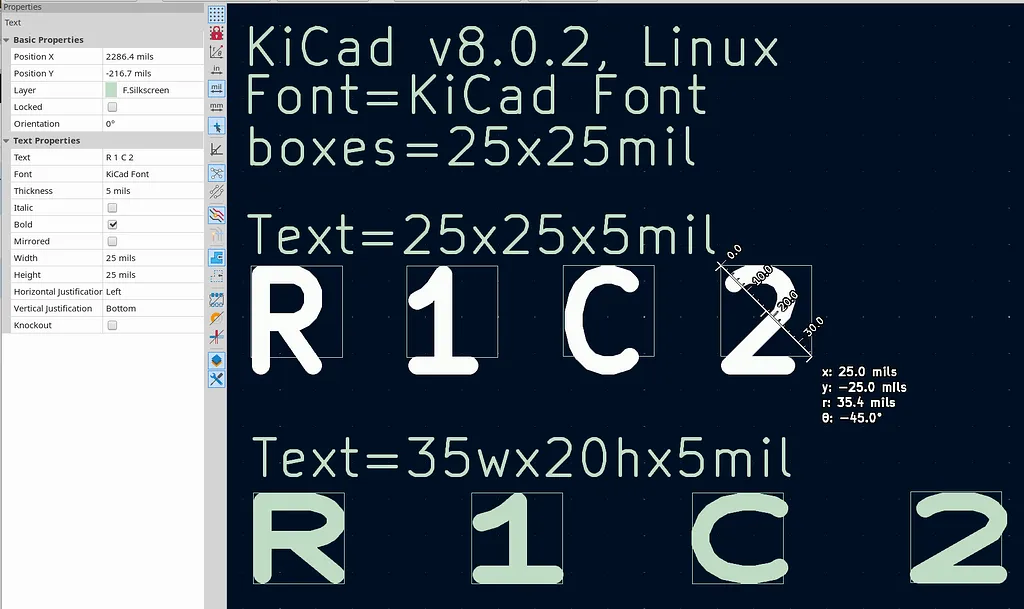

Q5: What stroke width pairs best with 1.2mm height text on flex PCBs?
A5: 0.15–0.20mm stroke provides good definition without excessive ink buildup. Adjust based on specific ink and substrate combination.
Q6: Should we remove silkscreen entirely to save cost and space on FPCs?
A6: Only if your assembly process is fully automated and components are unambiguous. Most projects still benefit from some legend for quality control and traceability.
