Missing or unclear FPC adhesive specification creates more production headaches than most designers realize. Getting the flex PCB tape thickness control right from the start avoids delays, yield loss, and reliability issues later.
Common Issues When Adhesive Details Are Not Specified
When the drawing just says "add back adhesive" without details, the fab has to guess. Different suppliers use different default tapes. The result is inconsistency across builds.
Too thick, and the FPC becomes stiff in areas that should flex. Too thin, and it lacks the holding strength needed for assembly or final installation. Thickness mismatch also affects overall stackup and impedance on controlled lines.
Downstream Manufacturing Problems
Unspecified adhesive leads to surprises during lamination, die cutting, or SMT. Panels may warp differently. Release liners can cause handling issues. These small variations compound in high-volume production.
Recommended Common Adhesive Types and Thicknesses

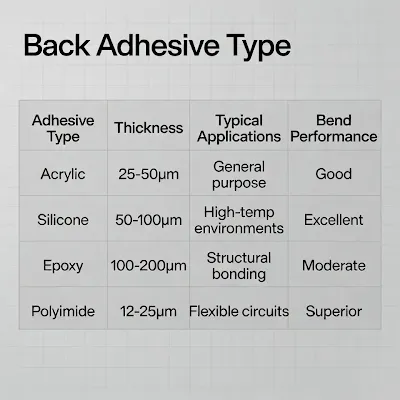

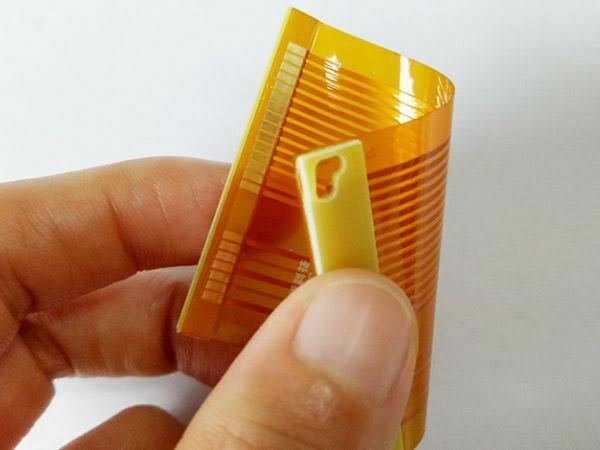

For most consumer and industrial FPCs, 0.025 mm to 0.05 mm acrylic adhesive tape works well. 0.05 mm is a solid default for general use — it balances flexibility and adhesion strength.
Thinner 0.025 mm options suit ultra-flex applications or tight bend radii. Thicker 0.075–0.1 mm tapes are better when you need stronger bonding to housings or heat dissipation paths.
Choosing the Right Adhesive Family
Acrylic-based tapes dominate because they offer good temperature stability and chemical resistance. Silicone types appear in high-temperature or medical applications but cost more and behave differently during assembly.
Double-sided options with different release forces on each side help with assembly flow. Always confirm the exact part number or spec with your fab — generic "3M equivalent" leaves room for variation.
How to Clearly Mark Adhesive Requirements in Design
Put the specification directly on the fabrication drawing. Include type, thickness, coverage area, and any keep-out zones. A simple note like "Back adhesive: 0.05 mm acrylic PSA, coverage per gerber layer ADH" removes ambiguity.
Use a dedicated adhesive layer in your CAD output. This gives the manufacturer precise boundaries and eliminates interpretation errors. Reference the exact material part number when possible.
For partial coverage designs, clearly dimension the adhesive boundaries relative to board outline or fiducials. Vague callouts cause misalignment during application.
Stackup Documentation Matters
Include the adhesive in your full stackup callout. Show position, thickness, and material. This helps the fab understand how it affects total thickness tolerance and flexibility.
Relationship Between Adhesive Thickness and Overall Structure

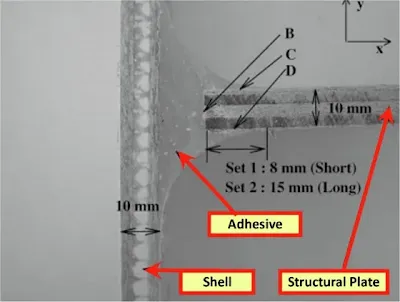

Thicker adhesive increases total board thickness and reduces flexibility. In tight hinge areas this can cause premature fatigue. Thinner adhesive preserves bend performance but may not provide enough bond strength for larger components or mechanical stress.
Adhesive thickness also influences thermal performance. Thicker layers can act as insulators — important if the FPC sits against a heat sink or metal housing. In signal layers, it shifts impedance slightly if not accounted for in calculations.
During DFM review, check how the chosen thickness interacts with stiffeners, component heights, and enclosure fit. Small adjustments here prevent bigger problems at assembly.
Best Practices for Reliable FPC Adhesive Specification
Always specify early. Prototype with the exact tape you plan for production. Test bend cycles and environmental stress with the final adhesive choice.
Work with your manufacturer's recommended materials. They know which tapes run best on their equipment and have proven reliability data for common thicknesses.
For FPC adhesive specification and flex PCB tape thickness control, clarity beats assumptions. A few minutes documenting the details saves weeks of back-and-forth and improves final product quality.
Review your current FPC designs. If adhesive is only vaguely noted, update the drawings before the next tape-out. It's one of the highest-ROI DFM improvements you can make.
