2 Layer FR4 PCB Production Record #FR4-20260403-027
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | FR4 PCB | Quantity | 15 pcs |
| Layers | 2 Layers | Board Type | Panel PCB |
| Dimensions | 161.5 x 177.5 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 6/6mil↑ |
| Surface Finish | HASL Lead Free | Min Hole Size | 0.3mm↑ |
| Solder Mask | Green | Silkscreen | White |
| Stack-up | Default | Impedance Control | No |

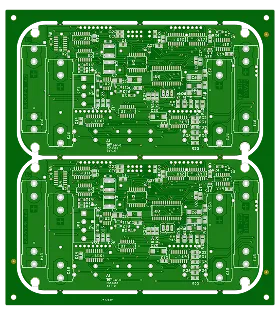

This 2-layer FR-4 board measured 161.5 × 177.5 mm with 1.6 mm thickness, TG150 material, and 1 oz copper on both sides. Produced as 30 pieces in 1×2 panels for 15 sets, the order used lead-free HASL surface finish, green solder mask, and white silkscreen. Line/space remained at standard 6 mil with 0.3 mm minimum holes, and the 1-day schedule included 100% flying probe testing together with routing separation.
DFM review addressed two key layout points. Arrow-indicated features showed half-hole designs, yet the order documentation did not specify whether castellated processing was required; this was clarified to determine plating and routing intent. Multiple silkscreen characters overlapped pads, creating potential interference with soldering; the recommendation to remove text from pad surfaces was confirmed to preserve solderability.
Confirmed castellated hole attributes and silkscreen adjustments were implemented prior to production. The short-turn boards achieved consistent lead-free HASL coverage within the accelerated timeline. Full electrical test reports, quality certificates, and outgoing inspection documentation accompanied the shipment, confirming the panels met the specified mechanical and electrical requirements.
