0.1mm vs 0.15mm Microvia: Which Size Is Better for HDI PCB?

Author : Alex Chen | PCB Design & High-Speed Engineering Specialist

July 16, 2026


In HDI production, 0.1mm microvias push laser and plating limits for higher density, while 0.15mm vias offer better process windows and higher yields. From the factory perspective, the choice depends on your layer count, reliability targets, and volume requirements in 0.1mm vs 0.15mm microvia decisions.

0.1mm vs 0.15mm Microvia: Manufacturing Reality Check

0.1mm microvias enable finer routing and more stacked structures in advanced HDI but demand tighter laser control and plating processes. 0.15mm vias provide more forgiving manufacturing with improved reliability and lower defect rates, especially in volume production. Most fabs prefer 0.15mm as the sweet spot unless density forces smaller sizes.

HDI PCB Cross-Section with Microvias

Quick Comparison: 0.1mm vs 0.15mm Microvia Specifications

Aspect 0.1mm Microvia 0.15mm Microvia
Laser Drilling Difficulty High precision required Standard capability
Plating Reliability Higher risk of voids Better copper fill
Cost Impact Higher due to lower yield Lower processing cost
Density Potential Superior for ultra-HDI Good for most designs
Mass Production Stability Challenging High yield

Decision Matrix: Choosing 0.1mm or 0.15mm Microvia

Priority Better Choice Why in Production
Maximum routing density 0.1mm Allows tighter pad spacing and more vias
Highest reliability & yield 0.15mm Easier plating and lower defect rates
Lowest overall cost 0.15mm Better process efficiency in volume
High-volume mass production 0.15mm Stable parameters and higher throughput
Advanced ultra-HDI designs 0.1mm Necessary for extreme miniaturization

Laser Drilling Capability: Limits of 0.1mm vs 0.15mm Microvia

Modern UV and CO2 lasers handle 0.15mm vias with wide process windows and excellent depth control. Dropping to 0.1mm requires finer beam focus, slower speeds, and more frequent parameter calibration. In CAM review, 0.1mm vias often trigger extra DFM checks for taper control and entry/exit quality, increasing setup time. Factories with advanced laser systems manage 0.1mm reliably, but not all lines achieve consistent results.

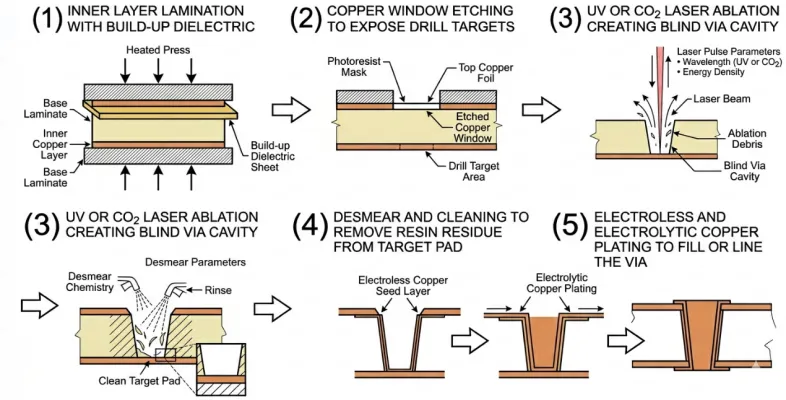

HDI laser drilling process

Cost Differences in 0.1mm vs 0.15mm Microvia Production

0.1mm microvias raise costs through lower first-pass yields, additional plating cycles, and higher scrap rates. 0.15mm vias allow faster drilling, simpler plating, and better panel utilization. In high-volume HDI, the cumulative cost savings with 0.15mm often outweigh the slight density loss unless the design absolutely requires smaller features.

Reliability Comparison: Via Size Impact on HDI Performance

Smaller 0.1mm vias have higher aspect ratios that challenge uniform copper deposition, leading to potential weak points under thermal cycling. 0.15mm vias plate more reliably with thicker barrel copper, improving IST and thermal shock performance. In reliability testing, 0.15mm configurations typically show fewer via cracks and better long-term stability.

Mass Production Stability and Yield Considerations

For stable mass production, 0.15mm microvias deliver higher yields and repeatable quality across panels. 0.1mm vias introduce more variability in laser drilling and plating, requiring tighter process controls and statistical monitoring. When scaling HDI to thousands of panels, the 0.15mm option reduces overall risk and supports higher throughput.

microvias across different HDI layer counts

Factory Perspective on 0.1mm vs 0.15mm Microvia in HDI

In DFM reviews, we frequently recommend upsizing to 0.15mm wherever possible to improve manufacturability. Laser depth control, plating uniformity, and registration all benefit from the larger feature size. While 0.1mm is achievable on high-end equipment, it increases process risk and requires experienced operators. For most commercial HDI programs, 0.15mm strikes the best balance of density, cost, and reliability.

Which Microvia Size Should You Choose?

Choose 0.1mm Microvia if you:

  • Require maximum interconnect density in ultra-compact HDI
  • Have advanced equipment and strong DFM collaboration
  • Can accept higher costs for premium performance
  • Target high-end consumer or computing applications

Choose 0.15mm Microvia if you:

  • Prioritize reliability and mass production stability
  • Want lower costs and higher yields
  • Need robust performance under thermal stress
  • Are designing for automotive, industrial, or standard HDI

Frequently Asked Questions

Q1: What is the smallest reliable microvia size in standard HDI production?

A1: 0.15mm is widely considered reliable and stable, while 0.1mm requires advanced capabilities and carries higher risk.

Q2: Does smaller microvia size always mean better HDI performance?

A2: No. While 0.1mm offers density advantages, 0.15mm often provides superior reliability and lower manufacturing costs.

Q3: How does via size affect plating quality in HDI?

A3: Larger 0.15mm vias allow more uniform copper deposition and reduce void risks compared to 0.1mm vias.

Q4: Which size is more cost-effective for volume HDI production?

A4: 0.15mm microvias are typically more cost-effective due to higher yields and simpler processing.

Q5: Can I mix 0.1mm and 0.15mm microvias in the same HDI design?

A5: Yes, but it complicates laser and plating processes. Consistent sizing is preferred for production stability.

```
