In HDI manufacturing, resin filled vias provide cost-effective planarization for Via in Pad designs, while copper filled vias deliver superior thermal and electrical performance at higher processing cost. The choice depends on your BGA density, reliability requirements, and volume in resin filled via vs copper filled via decisions.

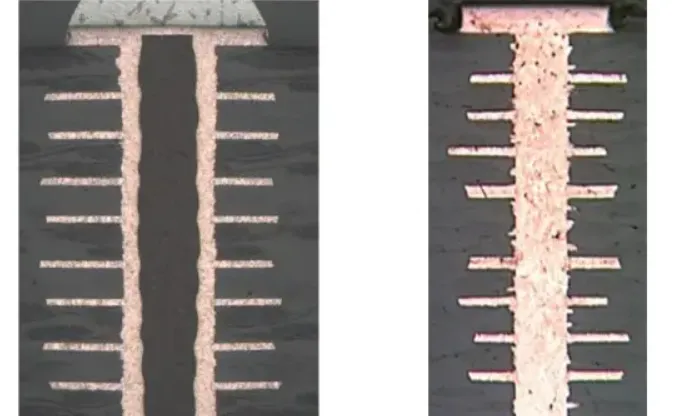

Resin Filled Via vs Copper Filled Via at a Glance
Resin filling is simpler and cheaper for most Via in Pad HDI applications, especially consumer electronics. Copper filling offers better conductivity and heat dissipation but requires more complex plating and planarization steps. Factories see resin as the default for standard builds and copper for high-performance or high-power designs.
HDI Filled Via Comparison: Key Manufacturing Factors
| Aspect | Resin Filled Via | Copper Filled Via |
|---|---|---|
| Filling Method | Screen print or vacuum resin | Electroplating overfill |
| Cost | Lower | Higher |
| Thermal/Electrical Performance | Moderate | Excellent |
| Via in Pad Suitability | Good for most BGA | Superior for high-density/high-power |
| Reliability | Solid with proper resin | Higher under stress |
Decision Matrix for Resin Filled Via vs Copper Filled Via
In HDI manufacturing, resin filled vias provide cost-effective planarization for Via in Pad designs, while copper filled vias deliver superior thermal and electrical performance at higher processing cost. The choice depends on your BGA density, reliability requirements, and volume in resin filled via vs copper filled via decisions.
Resin Filled Via vs Copper Filled Via at a Glance
Resin filling is simpler and cheaper for most Via in Pad HDI applications, especially consumer electronics. Copper filling offers better conductivity and heat dissipation but requires more complex plating and planarization steps. Factories see resin as the default for standard builds and copper for high-performance or high-power designs.
HDI Filled Via Comparison: Key Manufacturing Factors
| Priority | Better Choice | Factory Perspective |
|---|
| Aspect | Resin Filled Via | Copper Filled Via |
|---|---|---|
| Filling Method | Screen print or vacuum resin | Electroplating overfill |
| Cost | Lower | Higher |
| Thermal/Electrical Performance | Moderate | Excellent |
| Via in Pad Suitability | Good for most BGA | Superior for high-density/high-power |
| Reliability | Solid with proper resin | Higher under stress |
Decision Matrix for Resin Filled Via vs Copper Filled Via
| Priority | Better Choice | Factory Perspective |
|---|---|---|
| Lowest cost | Resin Filled | Simpler process, higher throughput |
| Best thermal dissipation | Copper Filled | Solid copper conducts heat better |
| High-density BGA with Via in Pad | Copper Filled (preferred) | Better planarity and reliability |
| Mass production volume | Resin Filled | Easier scaling |
| Extreme reliability requirements | Copper Filled | Superior mechanical strength |

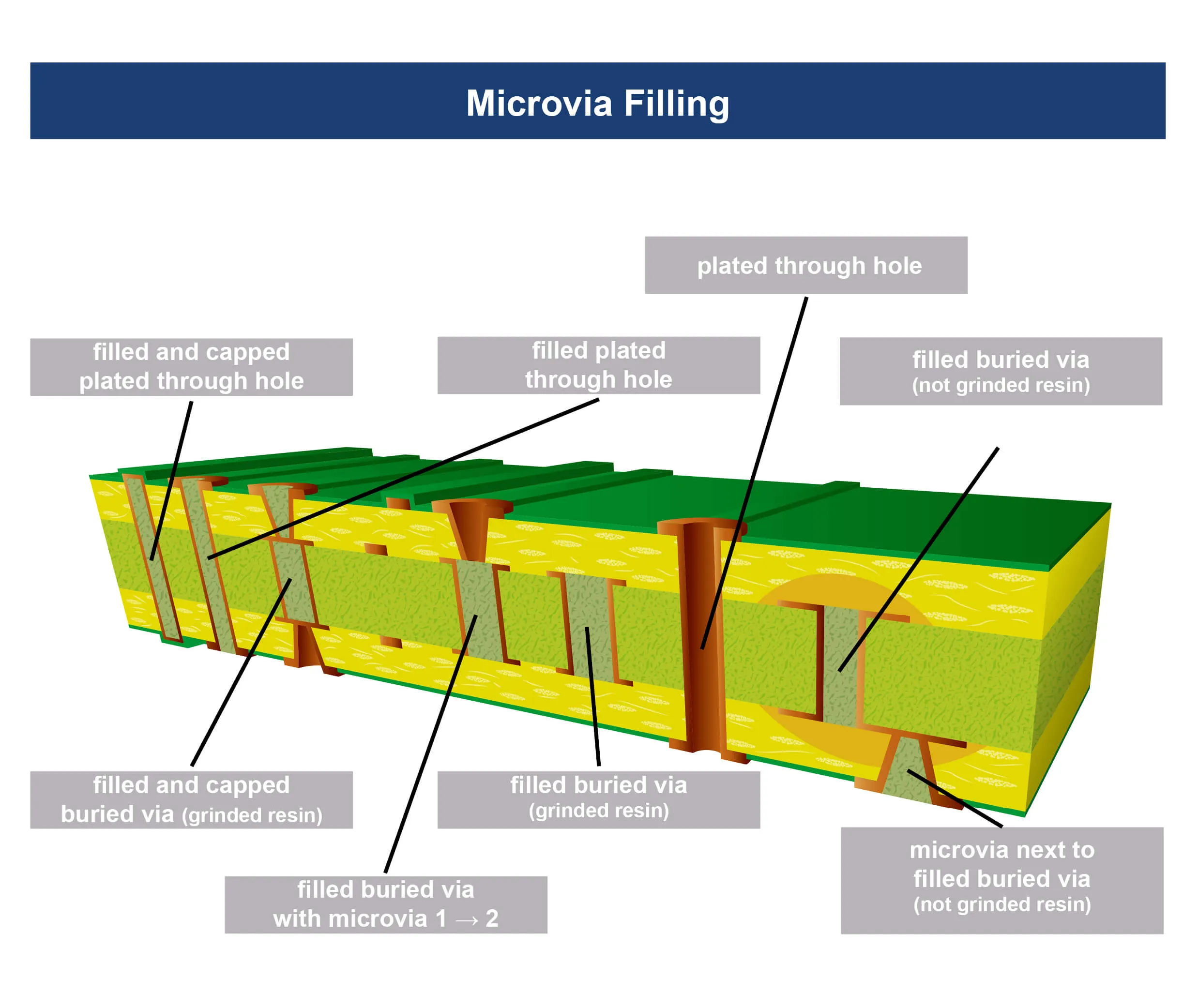

Filling Methods: How Resin and Copper Vias Are Processed in HDI

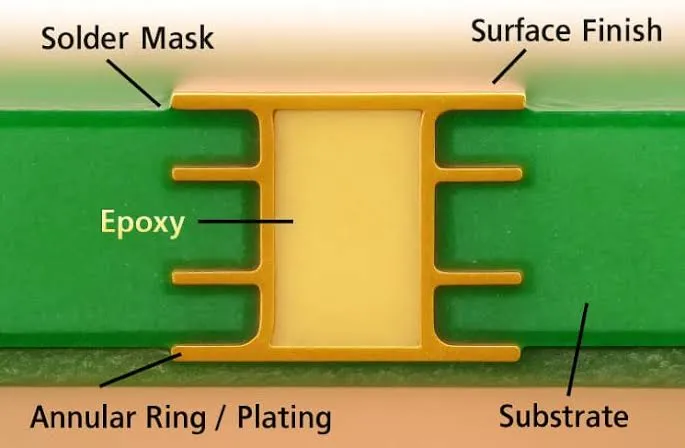

Resin filling typically involves drilling, plating the barrel, then applying and curing non-conductive or conductive resin followed by planarization. Copper filled vias use extended electroplating to overfill the hole, then back-drilling or grinding for flatness. In production, resin filling is faster and less equipment-intensive, while copper filling adds significant steps and chemistry control.
Via in Pad Applications: Resin vs Copper Filled Performance
Both support Via in Pad for BGA packages, but copper filled vias provide a more robust, thermally conductive pad that handles higher currents and reduces solder joint stress. Resin filled vias work well for standard pitch BGAs but may show limitations in fine-pitch or high-power applications due to lower thermal conductivity.
Reliability Differences in Resin Filled Via vs Copper Filled Via
Copper filled structures generally excel in thermal cycling and mechanical shock testing because solid copper matches the CTE of surrounding copper features better. Resin filled vias can introduce mismatch risks, though modern filled resins minimize this. In long-term HDI reliability, copper filled vias are often preferred for critical applications.
Cost Comparison and Production Implications
Resin filling keeps costs down through simpler workflows and higher panel yields. Copper filling increases material and processing expenses but can reduce overall system-level costs by improving thermal management and allowing denser designs. In high-volume HDI, resin remains dominant unless performance justifies the premium.
Factory Perspective on Resin Filled Via vs Copper Filled Via
During DFM review, we evaluate pad size, via density, and thermal requirements to recommend filling type. Resin filled vias simplify lamination and planarization for most jobs, while copper filled vias demand precise overplating control and additional polishing. Yield and process stability favor resin for standard HDI, but copper is the reliable choice for high-end Via in Pad BGA boards where failures are costly.
Which Filling Option Should You Choose?
Choose Resin Filled Via if you:
- Need cost-effective Via in Pad for standard BGA pitches
- Prioritize production speed and volume scalability
- Have moderate thermal and reliability requirements
- Are designing consumer or general electronics HDI
Choose Copper Filled Via if you:
- Require superior thermal performance and current carrying
- Use fine-pitch or high-power BGA packages
- Need maximum long-term reliability
- Can justify higher costs for premium HDI
Frequently Asked Questions
Q1: What is the main difference between resin filled via and copper filled via?
A1: Resin uses non-conductive or conductive paste for cost-effective filling, while copper uses solid electroplated copper for better conductivity and heat transfer.
Q2: When is Via in Pad best implemented with copper filled vias?
A2: For high-density, fine-pitch BGAs or high-power applications where thermal performance and planarity are critical.
Q3: Is resin filled via reliable enough for most HDI boards?
A3: Yes, with proper resin selection and process control, it meets reliability requirements for the majority of commercial and industrial HDI designs.
Q4: How much more expensive is copper filled via compared to resin?
A4: Copper filling typically adds 20-50% or more to via-related costs depending on board complexity and volume.
Q5: Can I mix resin and copper filled vias on the same HDI panel?
A5: Yes, but it increases process complexity. Uniform filling strategy is preferred for consistent quality and cost control.
