Canceling Via Openings on FPC to Prevent Long-term Oxidation

Author : Alex Chen | PCB Design & High-Speed Engineering Specialist

July 09, 2026


Canceling via openings on FPC boards is one of the most effective ways to address FPC via opening cancel strategies and improve flex PCB via protection. Once you understand how oxidation actually starts at exposed copper, the decision becomes straightforward in most layouts.



How Oxidation Starts at Open Via Locations

Exposed copper on flex doesn't just sit there. It reacts with oxygen and moisture immediately after fabrication. The thin oxide layer forms quickly, but the real problem develops at the interface where coverlay meets the annular ring.

Micro-gaps at that edge allow contaminants to creep in. Over weeks and months the oxide thickens and spreads. In high humidity or temperature swing environments this process accelerates dramatically.

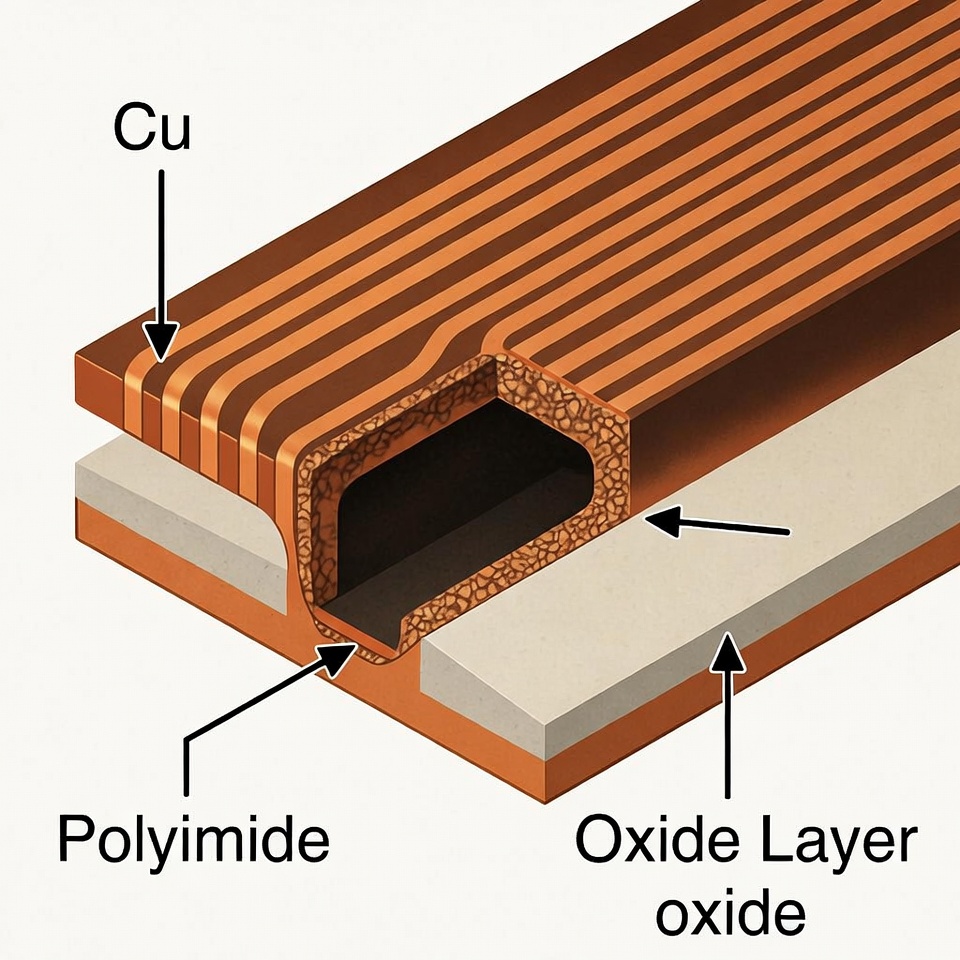

Detailed cross-section diagram illustrating oxidation progression at an open FPC via edge, showing oxide layer growth and potential delamination path

Why Flex Materials Make It Worse

Polyimide and coverlay films have different expansion rates than copper. Every thermal cycle or bend creates tiny movements. These movements break down the seal at open vias faster than on rigid boards. The result is progressive contact degradation that's hard to catch in initial testing.



Reliability Gains After Canceling Via Openings

When you cancel unnecessary via openings, the coverlay fully protects the annular ring and surrounding copper. This single change removes the primary entry point for oxidation and moisture.

In practice, boards with covered vias show much more stable contact resistance over time. They handle humidity soak and thermal cycling better. Field return rates drop on designs that adopt this approach.

The via barrel itself remains unaffected. Electrical connectivity between layers stays exactly the same. You lose nothing functionally in the vast majority of cases.

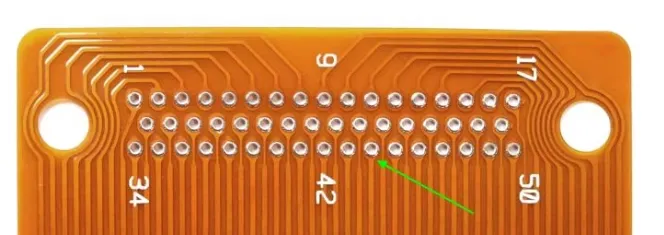

FPC via

Long-Term Performance Impact

Covered vias resist solder flux residue entrapment during assembly. They also reduce the chance of micro-cracking during repeated flexing. These small improvements add up to noticeably higher reliability margins, especially in dynamic applications.



Design Alternatives When Canceling Openings

You don't have to cover every via blindly. Smart alternatives exist for the few cases where access matters.

Selective Coverlay Strategies

Use coverlay openings only for component pads and deliberate test points. Route the rest of the vias under solid coverlay. This gives you precise control while maximizing protection.

For high-density areas, consider staggered via placement or moving vias slightly away from high-stress bend zones. A small shift in position often allows full coverlay protection without changing routing.

Via Filling and Plating Options

Where cost allows, via filling provides the ultimate flex PCB via protection. Filled and capped vias eliminate exposure completely while improving thermal and mechanical performance. Not every FPC run justifies the added process, but it's worth evaluating on critical designs.

ENIG or OSP surface finish on remaining exposed areas also helps slow oxidation if you must keep some openings. Still, full coverlay remains the cleaner long-term solution.

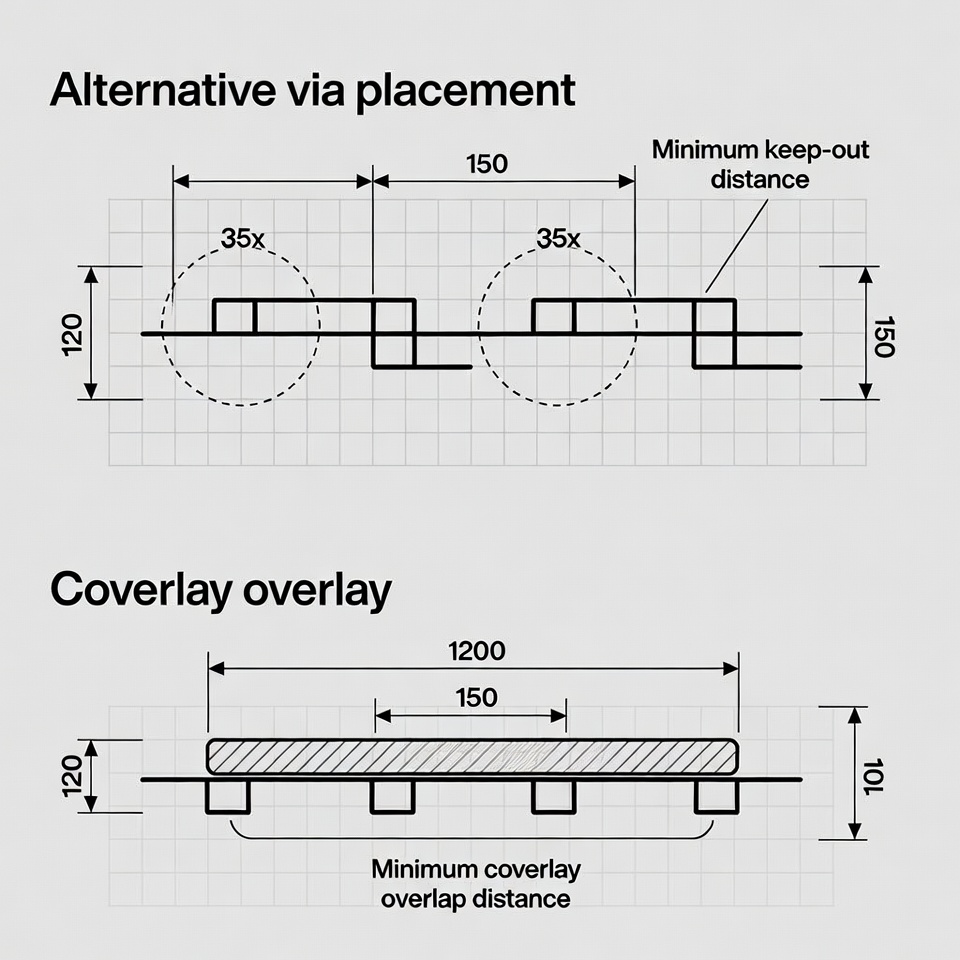

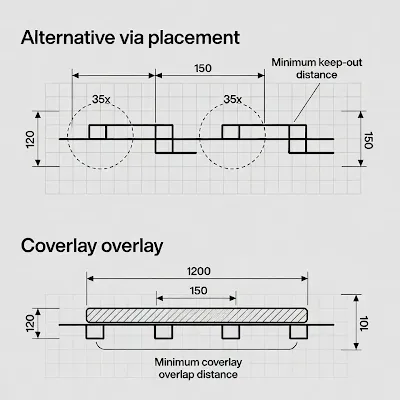

Layout examples showing alternative via placement and coverlay strategies for better flex PCB via protection, including minimum keep-out distances



Implementation During Layout Review

Go through your design and tag every via. Ask: "Does this via need to stay open?" Most don't. Update the coverlay layer accordingly and add clear documentation for the fab.

Check registration tolerances with your manufacturer. Good fabs can handle tight coverlay alignment, giving you confidence that pads stay exposed exactly where needed and vias stay protected.

In dynamic flex regions, canceling openings becomes even more important. The mechanical stress multiplies any weakness left at exposed copper edges.

Quick Decision Framework

  • Static areas: Cancel openings on all non-test vias
  • Dynamic bend zones: Strong preference for full coverlay
  • Test or debug points: Keep minimal targeted openings only
  • High-reliability applications: Default to covered or filled

This approach directly tackles the root cause of FPC via opening cancel needs and delivers measurable flex PCB via protection improvements without major redesigns.

Next time you're finishing an FPC layout, spend a few minutes on the via coverlay decisions. It's one of those small DFM details that separates reliable production boards from ones that come back with field issues months later.
