Introduction
Creating PCBs at home opens up a world of possibilities for electronic hobbyists eager to turn ideas into working circuits without waiting for professional services. DIY PCB fabrication allows you to prototype quickly, customize designs to your exact needs, and gain hands-on experience with the entire process from layout to assembly. Whether you are building a simple sensor board or experimenting with custom controllers, having the right tools and techniques makes the difference between frustration and success. This guide covers essential PCB fabrication tools for beginners, focusing on practical setups suitable for a home lab. We will explore the single sided PCB fabrication process, key equipment like DIY PCB etching chemicals, PCB drilling machine for home use, PCB soldering station, and PCB rework station for hobbyists. By following these steps, you can achieve reliable results that align with basic industry principles.
Why DIY PCB Fabrication Matters for Hobbyists
DIY PCB fabrication empowers hobbyists to iterate designs rapidly, reducing costs and lead times compared to outsourcing. It fosters a deeper understanding of how circuits function at the physical level, helping you troubleshoot issues like signal integrity or mechanical stress more effectively. For single-layer boards common in beginner projects, the process is straightforward and requires minimal investment. This approach also builds skills transferable to professional environments, where precision in fabrication directly impacts reliability. In a home lab, you control every variable, from material thickness to hole alignment, leading to personalized projects that perform well. Ultimately, mastering these techniques boosts confidence and creativity in electronics experimentation.
Essential PCB Fabrication Tools for Beginners

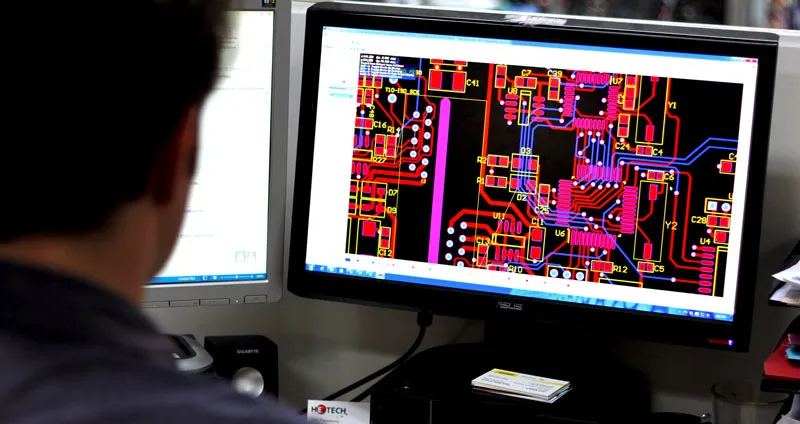

Starting with PCB design software for DIY projects is crucial, as it lays the foundation for your board layout. Look for free tools that support schematic capture, PCB routing, and Gerber file export, ensuring compatibility with home fabrication methods. These programs allow you to define trace widths, pad sizes, and drill holes accurately, preventing common errors like shorts or open circuits. Once designed, print your layout onto glossy paper or use a laser printer for the toner transfer method.

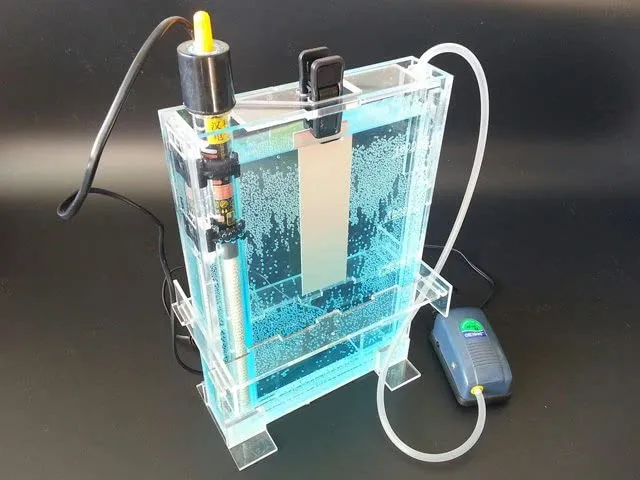

For etching, DIY PCB etching chemicals form the core of pattern transfer. Traditional options include ferric chloride solution, which dissolves unwanted copper effectively but requires careful handling due to its corrosiveness. Safer alternatives for home use involve mixing household items like hydrogen peroxide, white vinegar, and table salt to create a milder etchant that works slower but with less hazard. Always prepare the solution in a well-ventilated area and use plastic containers to avoid reactions with metals. Agitate the board gently during etching to ensure even copper removal.

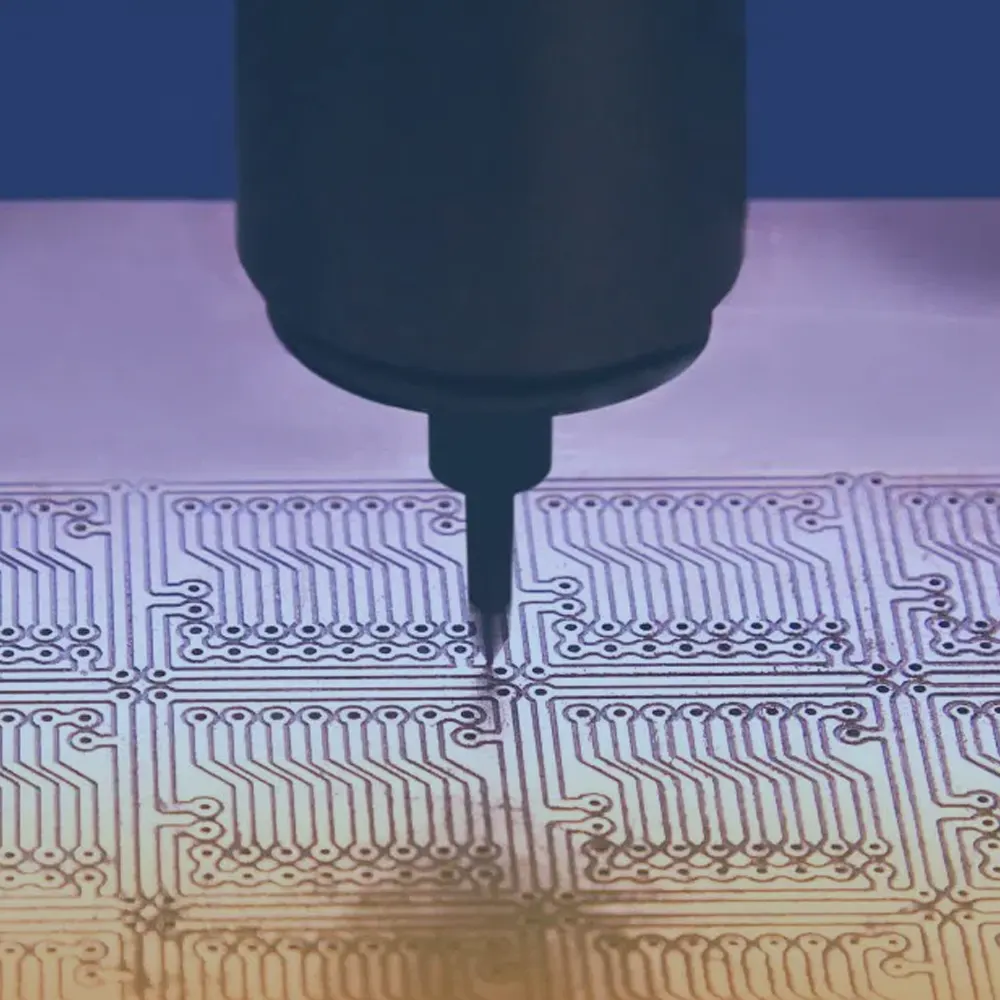

A reliable PCB drilling machine for home use is next, typically a small desktop drill press or handheld rotary tool with precision collets. These machines handle micro drills from 0.3mm to 1mm, essential for through-hole components. Secure the board with clamps to minimize wander, and use a sacrificial backing board to prevent tear-out on the exit side. Proper speed control, around 20,000 to 40,000 RPM for small bits, prevents overheating and bit breakage.
Assembly tools include a PCB soldering station with adjustable temperature control between 300°C and 400°C for leaded solder. This setup features a fine-tip iron, stand, and sponge for clean tips, ensuring strong joints without cold solder or bridges. For hobbyists tackling fixes, a PCB rework station for hobbyists combines hot air and IR heating to remove or replace components without damaging nearby traces. These stations help with SMD parts, which are increasingly common even in home projects.
The Single Sided PCB Fabrication Process Step-by-Step
The single sided PCB fabrication process begins with preparing your copper-clad board, typically FR-4 laminate about 1.6mm thick. Clean the copper surface thoroughly with fine sandpaper or scotch-brite pad, then apply toner transfer by ironing printed layout onto the board. After cooling, soak in water to lift the paper, revealing the mirrored pattern. Inspect for any toner lifts and touch up with a marker if needed.
Etching follows using your DIY PCB etching chemicals. Submerge the board pattern-side down in the solution at room temperature, checking progress every few minutes. Rinse immediately under running water once copper is removed, then strip remaining toner with acetone or sodium hydroxide solution. This step defines your traces and pads precisely.
Drilling comes next with the PCB drilling machine for home use. Align the board under the spindle using your design's drill file coordinates marked on a reference sheet. Drill vias and component holes starting with larger sizes to avoid bit stress, then deburr edges with a countersink bit. Maintain consistent pressure to achieve clean, cylindrical holes.
Finally, tin the board by applying flux and solder to protect traces from oxidation. This prepares it for population with components using your PCB soldering station. For quality, visually inspect traces for continuity and adherence to acceptability criteria like those in IPC-A-600, ensuring no voids or lifts.
Best Practices and Safety in Home PCB Fabrication
Safety is paramount when working with chemicals and heat in a home lab. Wear nitrile gloves, safety goggles, and an apron during etching, and neutralize spent DIY PCB etching chemicals with baking soda before disposal per local regulations. Work in a fume hood or outdoors to avoid inhaling vapors. Store solutions in labeled, sealed containers away from children and pets.
Adhere to best practices for durability, such as using consistent etch depths around 35 microns of copper removal. Maintain drill bit sharpness by dedicating bits to specific sizes, and cool boards with compressed air post-drilling. When soldering, follow temperature profiles akin to J-STD-001 principles: preheat gently, apply solder to the joint, not the iron, for reliable fillet shapes.
For overall performance, aim for tolerances that meet basic IPC-6012 guidelines, like annular ring widths of at least 0.1mm around pads. Test continuity with a multimeter before powering up, and bake boards at 100°C for an hour if exposed to humidity. These habits elevate home results to professional levels.
Troubleshooting Common Issues in DIY PCB Fabrication
Under-etched traces often stem from weak DIY PCB etching chemicals or insufficient agitation; remix fresh solution or bubble air through it for better results. Over-etching pits copper, so monitor timing closely and use stop bath rinses. Drilling misalignment happens without proper fixturing; create a custom jig from acrylic sheet aligned to fiducials.
Solder bridges on dense areas resolve with desoldering braid and flux on your PCB soldering station. For stubborn SMD removal, employ the PCB rework station for hobbyists with low airflow to avoid delamination. Warped boards from uneven heating straighten by clamping between glass plates during cooling. Always verify fixes electrically to prevent repeat failures.
Conclusion
DIY PCB fabrication equips electronic hobbyists with the tools and knowledge to bring projects to life efficiently in a home lab. From selecting PCB design software for DIY projects to mastering the single sided PCB fabrication process, each step builds capability and precision. Essential gear like DIY PCB etching chemicals, PCB drilling machine for home use, PCB soldering station, and PCB rework station for hobbyists ensures professional outcomes without a factory. By incorporating safety, best practices, and standard-aligned checks, your boards will perform reliably. Dive in, experiment, and enjoy the satisfaction of fully custom electronics.
FAQs
Q1: What are the best DIY PCB etching chemicals for beginners creating PCBs at home?
A1: For safe home use, mix equal parts 3% hydrogen peroxide and white vinegar (5% acetic acid), adding a pinch of table salt to catalyze the reaction. This etchant is gentler than ferric chloride, reducing corrosion risks while effectively removing copper. Agitate continuously for 20–60 minutes depending on board size. Neutralize waste with baking soda. Always ventilate well.
Q2: How do I choose a PCB drilling machine for home use?
A2: Opt for a compact drill press with variable speeds up to 40,000 RPM and collets for 0.3–1mm bits. Ensure it has a sturdy base and depth stop for repeatability. Use with a vacuum attachment to clear chips. Secure boards firmly to prevent movement. This setup handles single sided PCB fabrication process needs precisely without excessive vibration.
Q3: What features make a good PCB soldering station for hobbyists?
A3: A quality station offers digital temperature control (300–450°C), quick heat-up, and interchangeable fine tips. Include stand, sponge, and helping hands. It supports both through-hole and SMD work reliably. Pair with 60/40 rosin-core solder for clean joints per soldering best practices.
Q4: When should hobbyists use a PCB rework station?
A4: Employ it for desoldering SMDs, fixing bridges, or replacing damaged components without harming the board. Hot air function at around 350°C with low airflow helps prevent trace lifts. It is ideal for dense designs in PCB fabrication tools for beginners setups. Practice on scrap first.
