FPC panel size too big is a frequent cause of yield loss and production headaches in volume runs. Oversized panels look efficient on paper but create real problems with material behavior and process control.
Flex PCB panel optimization requires balancing utilization with practical manufacturing limits. There is a sweet spot that experienced fabs know well.
Dimensional Stability Issues with Oversized FPC Panels
Flexible circuits are sensitive to dimensional changes caused by temperature, moisture, and mechanical stress. As an FPC panel becomes larger, these changes can become more difficult to control consistently across the entire panel.
Polyimide and copper do not respond to thermal and environmental changes in exactly the same way. During processes such as lamination, imaging, drilling, and plating, dimensional movement can accumulate across a large panel. This may create registration differences between layers or make it harder to maintain the required hole, pad, and circuit alignment.
The problem can become more noticeable with a large format FPC, particularly when the panel contains long or narrow circuits. A FPC panel that appears stable at one location may show greater dimensional variation toward its outer edges.
For this reason, FPC panel dimensions should be evaluated together with the material construction, layer count, circuit geometry, and manufacturing process rather than selected only according to the maximum available equipment size.
Why Larger FPC Panels Are More Sensitive to Dimensional Movement
A larger panel covers a greater physical area, so even a relatively small percentage of dimensional change can translate into a noticeable difference across the panel.
This is particularly important when multiple layers or fine-pitch features must remain accurately registered. If the panel expands or contracts unevenly, the variation can affect drilling accuracy, layer registration, and downstream assembly.
Keeping the panel at a manageable size and using a balanced layout can make dimensional control more predictable during production.
SMT Problems Caused by Large Flex Panels
An FPC panel that works well during fabrication may still present challenges during SMT assembly. Flexible materials do not provide the same inherent rigidity as conventional rigid PCBs, so the panel needs sufficient support while solder paste is printed and components are placed.

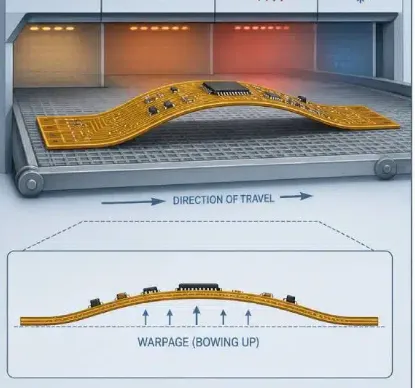

When a flex PCB panel becomes too large, maintaining consistent flatness across the entire panel can become more difficult. Areas away from the supporting surface may flex or move during printing, potentially affecting solder paste deposition and component placement.
For SMT production, panel dimensions should therefore be considered together with the support method, board outline, component density, and assembly equipment.
Panel Flatness and Solder Paste Printing
Solder paste printing requires the PCB surface to remain sufficiently stable against the stencil. If an FPC panel is not adequately supported, localized movement or gaps can affect paste transfer.
A more compact and balanced panel layout can make it easier to provide consistent support across the working area. Depending on the assembly process, tooling features, carriers, or additional support may also be required.
Component Placement on Large Flex PCB Panels
Component placement becomes more sensitive when a flexible panel moves during assembly. Large unsupported areas can introduce variation in positioning, particularly around smaller components or dense SMT regions.
For this reason, panelization should account for both the individual FPC outline and the requirements of the SMT line. A panel that maximizes the number of circuits per sheet is not necessarily the most efficient option if it creates handling or assembly problems.
Transportation and Handling Risks for Large FPC Panels
Oversized FPC panels are more vulnerable to bending and creasing during internal transport between processes. They require special carriers or extra stiffening, which adds cost and complexity. In extreme cases, the panel itself can sag under its own weight.
This mechanical stress often translates into trace cracks or flex pcb delamination that appear later in testing or field use.
Impact of Different PCS Quantities per FPC Panel
Running too many pieces per FPC panel increases overall panel size and magnifies all the stability issues. Fewer pieces per panel improves dimensional control and process yield but raises material waste and processing time.
The optimal balance depends on board size, layer count, and feature density. Small, dense designs often perform better with moderate panelization rather than maximum utilization.
Recommended FPC Panel Size for Mass Production
There is no single FPC panel size that is suitable for every flexible circuit. The practical dimensions depend on the flexible PCB fabrication, board geometry, tooling requirements, fabrication process, and assembly equipment.
Instead of treating a specific panel dimension as a universal standard, manufacturers should evaluate the complete panel layout during DFM review.
For mass production, a suitable FPC panel should be large enough to provide reasonable material utilization but compact and stable enough to move through fabrication and assembly processes consistently.
Engineering Guidelines for Flex PCB Panel Optimization
Flex PCB panelization should balance manufacturing efficiency with the mechanical and dimensional characteristics of flexible materials.
During DFM review, the manufacturer should evaluate how individual circuits are arranged, how the panel will be supported, and how it will move through fabrication and assembly. These considerations should follow established flexible PCB design rules to help identify potential issues before production begins.
A good panel layout should provide enough space for manufacturing features while avoiding unnecessarily large unsupported areas.

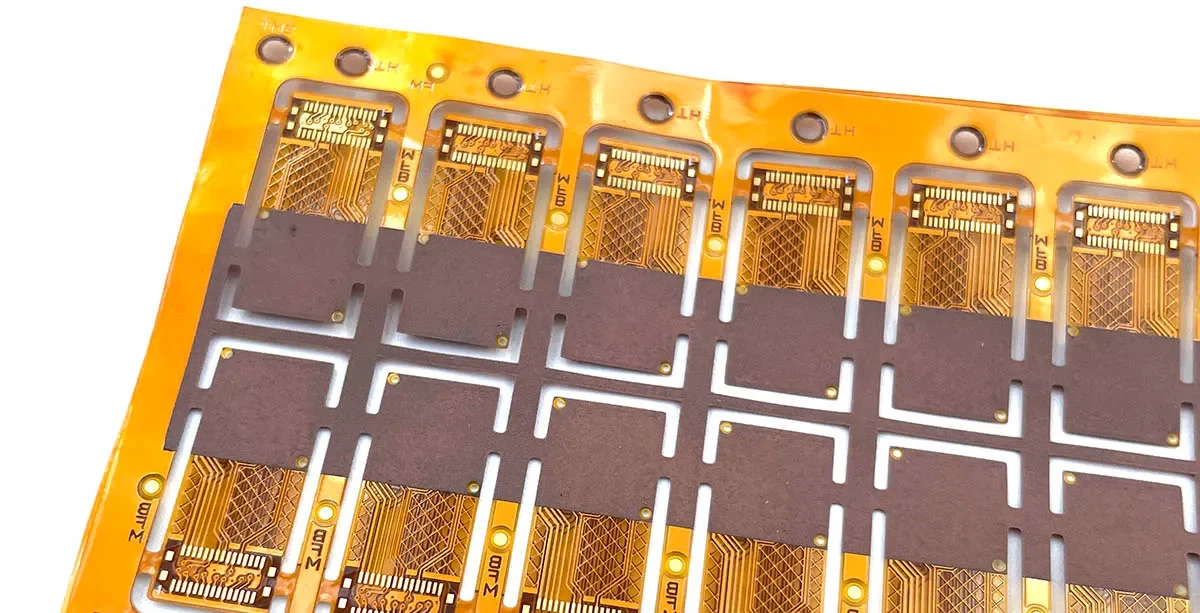

Optimize the Layout Around the FPC Outline
The shape of the individual flexible circuit has a direct effect on panel utilization. Rectangular designs are generally easier to arrange efficiently, while irregular or elongated shapes may require more space between individual circuits.
When the design allows it, consistent orientation and a balanced arrangement can improve material utilization and simplify handling.
Add Appropriate Tooling and Process Features

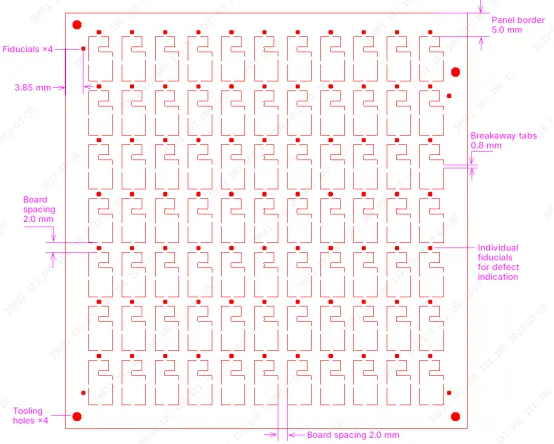

Tooling holes, fiducials, process edges, and connection features should be incorporated according to the requirements of the manufacturing and assembly equipment.
These features need sufficient clearance from the functional circuit area and should not interfere with electrical or mechanical requirements.
For flex PCB SMT assembly, panel design should also account for the support and registration requirements of the assembly line.
Avoid Maximizing Panel Area at the Expense of Stability
The objective of panelization is not simply to fit the maximum possible number of circuits onto one sheet.
An oversized panel can introduce additional dimensional movement, handling difficulties, and assembly-support problems. In some cases, a slightly smaller panel with a more balanced layout can provide a more reliable production process.
The final flex PCB panel should therefore be evaluated based on total manufacturing performance rather than material utilization alone.
Key Takeaways for Better Panel Design
Choosing an appropriate FPC panel size requires more than calculating how many circuits can fit on a sheet. Dimensional stability, SMT support, tooling, handling, material utilization, and manufacturing equipment all affect the practical panel configuration.
A larger panel can improve material utilization in some designs, but an oversized layout may introduce additional manufacturing challenges. For the flex circuit, a balanced and stable panel configuration is often more important than simply maximizing the number of pieces per panel.
Before mass production, review the proposed FPC panel with the manufacturer through DFM analysis. This allows the panel dimensions, tooling features, connection method, and assembly requirements to be evaluated together and adjusted before production begins.
