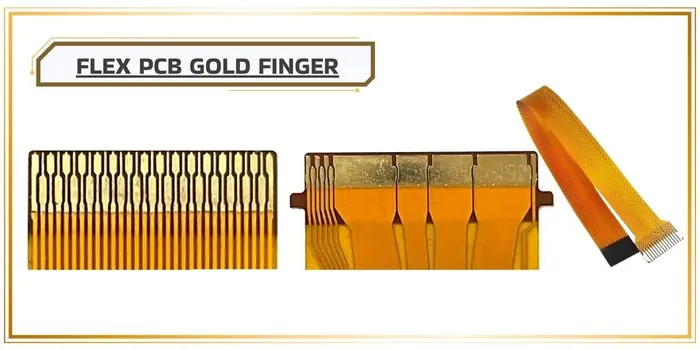

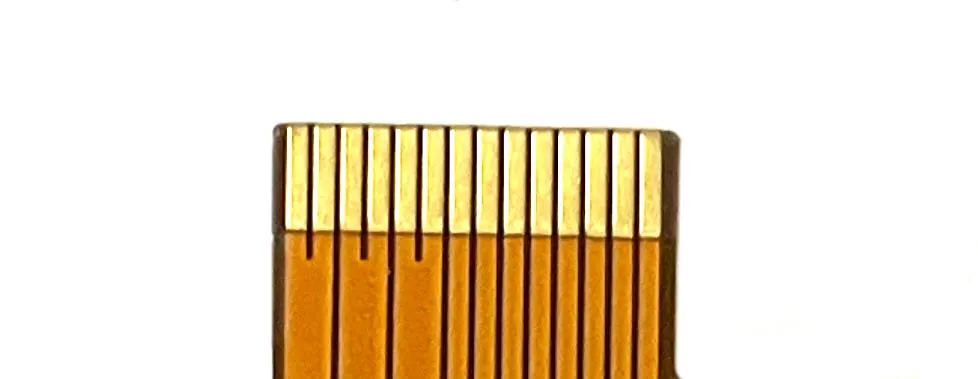

FPC stiffener distance to gold finger is a detail that many designers overlook until DFM review. Placing PI stiffener too close to the gold finger opening creates multiple risks during both manufacturing and daily use.
Getting this clearance right is critical for connector reliability, especially in applications with frequent mating cycles.
Risks When Stiffener Is Too Close to the Opening

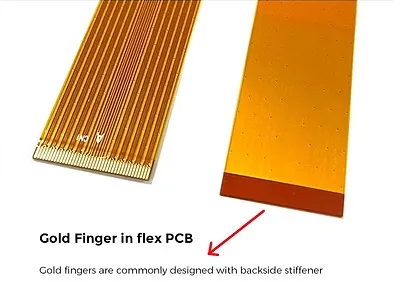

When the PI stiffener edge sits too close to the gold finger window, adhesive squeeze-out or coverlay misalignment can contaminate the contact fingers. Even small overlaps or gaps cause plating issues or foreign material on the gold surface.
During assembly the stiffener can create a hard step that interferes with connector housing or ZIF insertion, leading to bent fingers or uneven contact pressure.
Recommended Safe Clearance for PI Stiffener
We typically recommend a minimum 0.5mm clearance between the PI stiffener edge and the gold finger opening. In many cases 0.8mm to 1.0mm provides better process margin and long-term reliability. This distance accounts for adhesive flow, registration tolerance, and mechanical stress distribution.
Smaller clearances sometimes work in controlled prototype runs but become problematic at volume production.
How Stiffener Clearance Affects Insertion Reliability
Proper flex PCB stiffener clearance ensures smooth insertion and consistent normal force across all contacts. When the stiffener is too close, it creates a fulcrum effect that concentrates bending stress right at the base of the gold fingers.
Over repeated mating cycles this leads to fatigue cracks in the copper or coverlay lifting near the connector interface.
Special Requirements for Frequent Mating Applications
In high-cycle applications such as docking connectors, test fixtures, or consumer devices with daily plugging, we often increase the stiffener distance to 1.0mm or more. Additional considerations include using thicker PI or adding a secondary localized stiffener further back to control the bend radius.
The goal is to prevent the stiffener edge from acting as a stress riser exactly where the flex experiences maximum movement.
DFM Adjustments and Common Fixes
During engineering review we check gold finger areas carefully. If clearance is insufficient we recommend moving the stiffener edge back or trimming the opening slightly larger while maintaining electrical requirements. In tight layouts we sometimes suggest changing to a different stiffener material or configuration.
These adjustments are usually minor in layout but make a major difference in final product durability.
Key Design Rules for FPC Stiffener Distance to Gold Finger
Always maintain at least 0.5mm clearance, preferably 0.8mm or greater for production designs. Factor in the connector housing dimensions and insertion angle during layout. Verify the final stackup with your fabricator to confirm adhesive flow behavior.
FPC stiffener distance to gold finger directly impacts both manufacturing yield and field reliability. Treating this as a critical dimension rather than an afterthought prevents the majority of connector-related flex failures.
Good clearance practice is one of the simplest ways to improve the mechanical life of your flexible circuit assemblies.
