In HDI fabrication, core thickness directly drives laser via capability, stackup stability, and overall process yield. From the factory floor, we see thin cores (typically under 0.2mm dielectric) enabling tighter density and shorter signal paths, while thick cores (0.4mm and above) deliver better mechanical robustness during lamination and handling. The choice hinges on your layer count, via depth requirements, and production volume.
Thin HDI PCB vs Thick HDI PCB: How Core Thickness Changes Manufacturing
Thin cores shine in high-density, high-speed designs where microvia depth control and signal propagation matter most. Thick cores perform better when reliability under thermal cycling or mechanical stress is the priority, as they resist warping and simplify panel processing. In our CAM reviews, thin-core HDI often requires more precise laser parameters and tighter DFM tweaks, while thick-core builds tolerate broader process windows but limit via aspect ratios.
Thin HDI PCB vs Thick HDI PCB: Key Specifications Compared
| Aspect | Thin Core (≤0.2mm dielectric) | Thick Core (≥0.4mm dielectric) |
|---|---|---|
| Cost per Panel | Higher due to precision processing | Lower, standard material handling |
| Manufacturing Complexity | High – tight laser depth control | Moderate – easier lamination |
| Laser Via Depth Capability | Shallower, precise microvias | Deeper possible but riskier aspect ratios |
| Signal Integrity | Better for high-speed due to shorter paths | Good but higher propagation delay |
| Mechanical Reliability | Lower warp resistance | Superior under stress and thermal cycles |
| Typical Lead Time | Longer for fine tuning | Shorter standard runs |
| Yield in Mass Production | Lower without optimized DFM | Higher process stability |
Selecting Thin or Thick HDI PCB Structures for Different Design Priorities
| Priority | Better Choice | Why from Factory View |
|---|---|---|
| Highest density & miniaturization | Thin Core | Enables more buildup layers and finer laser features |
| Best thermal/mechanical reliability | Thick Core | Better warp control and heat spreading in lamination |
| Lowest cost in volume | Thick Core | Standard materials, higher panel utilization |
| Superior high-speed signal performance | Thin Core | Reduced stub effects and better impedance control |
| Fast prototype turnaround | Thick Core | Fewer process adjustments needed |
| Extreme environment (vibration, thermal shock) | Thick Core | Higher structural integrity during assembly and testing |
How Core Thickness Shapes HDI Buildup and Ultra Thin PCB Structures

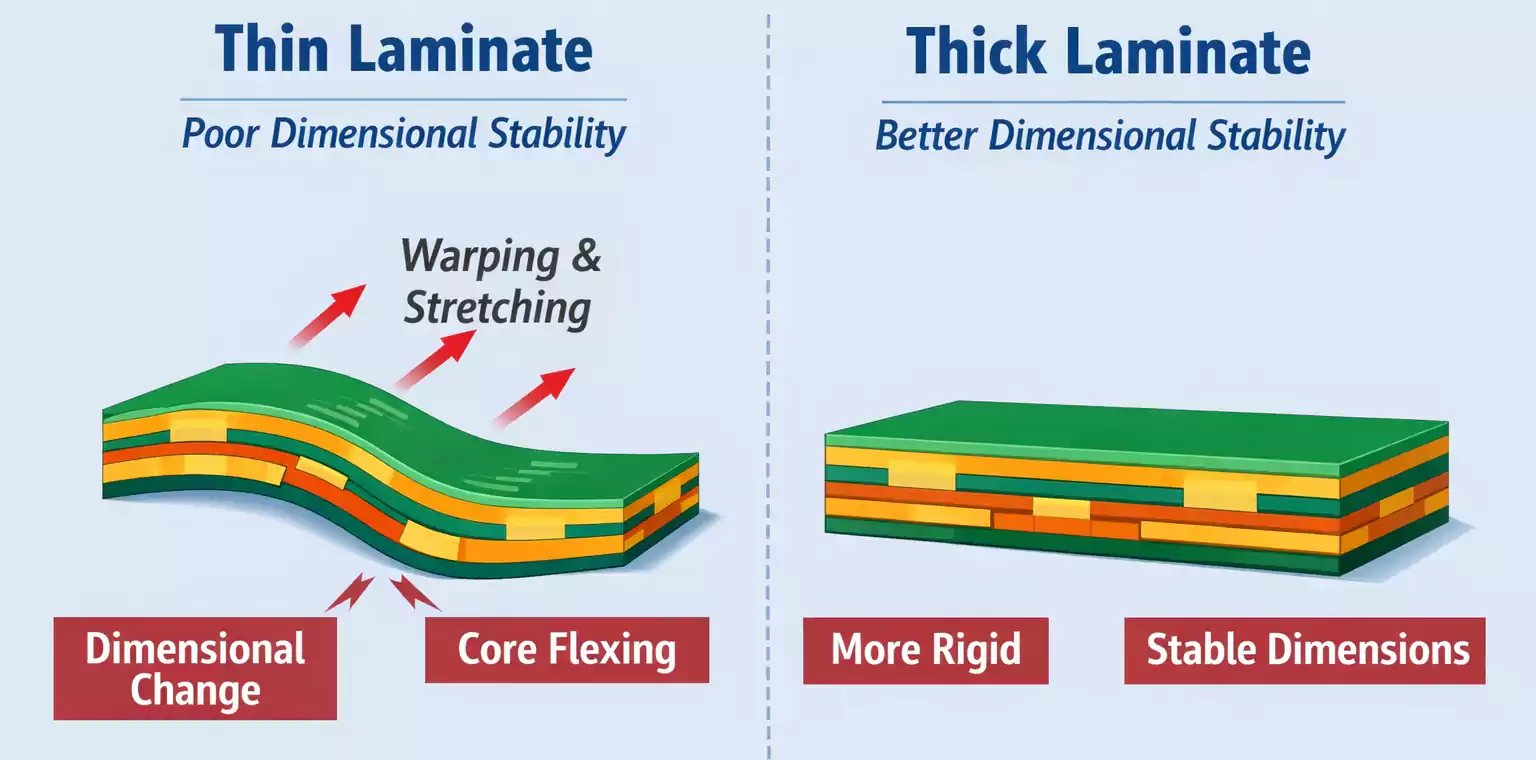

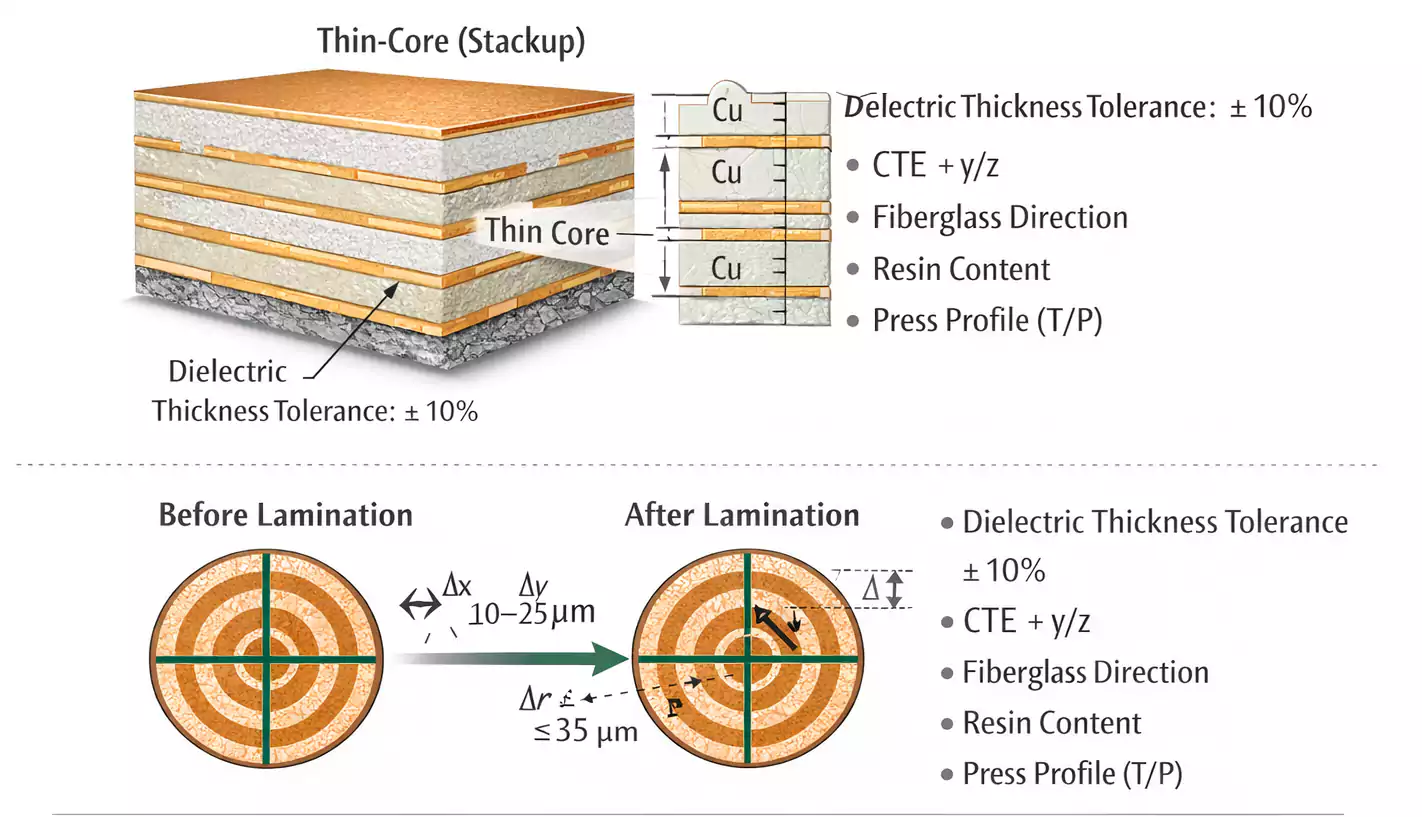

During panel layup, thin cores demand extra attention to copper balance and prepreg flow to prevent excessive warping. We often see thin-core HDI stacks (core around 0.1-0.2mm) allowing overall board thickness under 1mm while supporting 6+ layers with stacked microvias. Thick cores provide inherent stiffness, making multilayer lamination more forgiving and improving registration accuracy across large panels.
The difference becomes critical in HDI thin core vs thick core when scaling to production: thin cores increase material costs slightly but reduce final assembly size, while thick cores simplify handling and lower scrap rates in high-volume runs.
How Thin and Thick HDI PCB Cores Affect Laser Via Depth Control

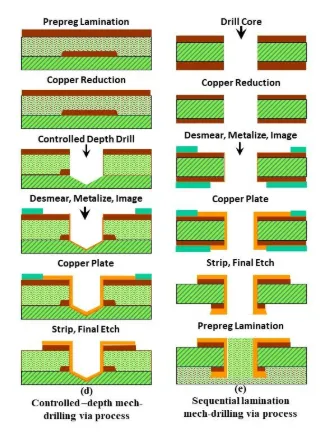

Laser drilling in HDI relies on precise energy settings to stop at the target copper layer. Thin cores allow shallower, more accurate microvias (often 50-100μm depth) with lower risk of copper damage or incomplete plating. Thick cores push the laser limits, increasing the chance of taper variation or resin smear that requires additional desmear steps. In production, we adjust CO2 or UV laser parameters more frequently for thin-core jobs to maintain via reliability.
For HDI thin core vs thick core decisions, if your design calls for stacked or any-layer vias, thin cores usually deliver higher first-pass yield on via plating.
Reliability Considerations for Thin HDI PCB and Thick HDI PCB Designs
Thick cores generally outperform in IST (interconnect stress testing) and thermal cycling because the added material resists delamination and via cracking. Thin cores can show higher strain at microvia knees under repeated flex or vibration. However, with proper DFM and material selection (like low-CTE laminates), thin-core HDI meets automotive and telecom reliability specs. From our experience, thick-core builds have fewer field returns in harsh environments.
Signal Integrity Differences Between Thin and Thick HDI PCB Structures
Thinner dielectrics in HDI thin core designs bring reference planes closer, improving impedance control and reducing crosstalk for high-speed signals. Propagation delay drops, and return paths shorten. Thick cores introduce more dielectric loss and potential resonance issues at GHz frequencies. In high-frequency HDI, we recommend thin cores unless power integrity demands thicker insulation.
Manufacturing Challenges When Producing Thin and Thick HDI PCBs
In CAM engineering, thin-core HDI triggers more DFM flags around copper balancing, via annular rings, and laser drill-to-copper registration. We optimize panelization differently—thin cores often need more framing or dummy copper to control shrinkage. Yield tends to decrease below 0.15mm cores without experienced process tuning, but once dialed in, thin-core panels support higher layer counts per HDI board. Thick cores allow faster throughput and better utilization of standard presses and drills. Most manufacturers prefer thick cores for new designs unless the customer specifies density targets that force thin materials. Process risk is higher with thin cores due to handling sensitivity during outer layer imaging and plating.
Thin HDI PCB or Thick HDI PCB: Which Should You Choose?
Choose Thin Core if you:
- Need maximum layer density in minimal overall thickness for mobile or wearable devices
- Prioritize high-speed signal integrity with short interconnects
- Can invest in detailed DFM collaboration for laser via optimization
- Target consumer electronics or 5G modules where size trumps ruggedness
Choose Thick Core if you:
- Require high reliability under thermal shock, vibration, or extended lifecycle
- Focus on cost-effective mass production with standard processes
- Have power components needing better heat distribution through the stack
- Want faster prototyping and lower risk in initial builds
There is no universal winner in HDI thin core vs thick core — the optimal choice emerges from balancing your electrical requirements against manufacturing realities.
FAQ
Q1: What Is the Difference Between a Thin HDI PCB and a Thick HDI PCB?
A1: A thin HDI PCB uses thinner dielectric or core structures to support compact stackups, shorter interconnects, and higher routing density. A thick HDI PCB provides greater mechanical stiffness and may offer a wider process window during lamination and handling. The appropriate structure depends on layer count, via requirements, signal integrity targets, mechanical constraints, and the capabilities of the selected PCB manufacturer.
Q2: When Should an Ultra Thin HDI PCB Be Used?
A2: An ultra thin HDI PCB is typically considered when overall board thickness and routing density are major design constraints. It can be useful in compact consumer electronics, wearables, mobile modules, and other space-limited products. However, thinner structures require tighter control of lamination, copper balance, laser drilling, registration, and handling, so fabrication capability should be evaluated before finalizing the stackup.
Q3: How Does Core Thickness Affect Laser Drilling in HDI PCBs?
A3: Core and dielectric thickness directly affect the depth that a laser must remove when forming microvias. Thinner dielectric layers can allow shallower laser vias and tighter depth control, while thicker structures may require higher laser energy or different drilling parameters. Actual capability depends on material properties, laser wavelength, via diameter, dielectric thickness, and the manufacturer's validated process window.
Q4: Does a Thin HDI PCB Always Provide Better Signal Integrity?
A4: Not necessarily. A thin HDI PCB can place reference planes closer to signal traces and shorten certain interconnect paths, which may benefit impedance control and high-speed routing. However, signal performance also depends on dielectric properties, stackup geometry, trace dimensions, copper roughness, routing topology, and frequency. A thicker structure can still achieve good signal integrity when the stackup is properly engineered.
Q5: Is a Thick HDI PCB More Reliable Than a Thin HDI PCB?
A5: Neither structure is universally more reliable. Thick HDI PCB constructions can provide greater mechanical stiffness, while thin structures can perform reliably when materials, stackup symmetry, microvias, and lamination processes are properly controlled. Reliability depends on thermal cycling, vibration, current loading, material selection, via construction, and manufacturing quality. The core thickness should therefore be selected according to the actual application requirements.
Q6: How Should Engineers Choose Between Thin and Thick HDI PCB Structures?
A6: Engineers should evaluate overall board thickness, routing density, layer count, laser via geometry, signal integrity, thermal requirements, mechanical stress, production volume, and fabrication capability. Thin HDI PCB structures are often considered for highly compact designs, while thicker constructions may provide more mechanical margin. Reviewing the proposed stackup with the PCB manufacturer can help identify a practical balance between electrical performance and manufacturing stability.
