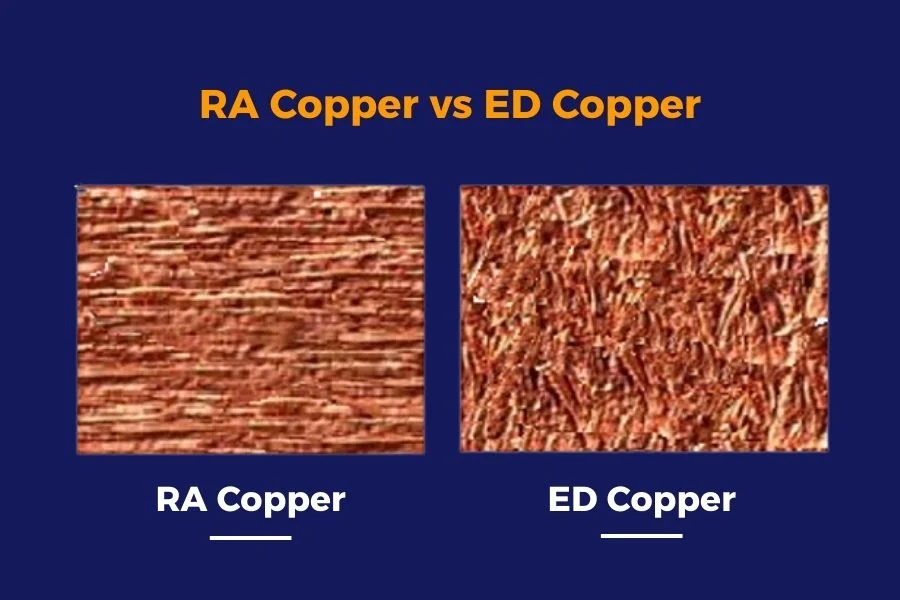

RA Copper or ED Copper: Which Performs Better in Flexible PCB Production?
From years of running flex production lines, RA (Rolled Annealed) copper excels in dynamic bending applications due to its superior ductility, while ED (Electrodeposited) copper remains the economical choice for static flex or cost-driven projects. The right selection balances bend life, material cost, and manufacturing yield.
RA Copper vs ED Copper Comparison Table
| Parameter | RA Copper | ED Copper |
|---|---|---|
| Bend Performance | Superior (20-45% elongation) | Moderate (4-15% elongation) |
| Material Cost | Higher (30-100% premium) | Lower |
| Manufacturing Yield | Higher in dynamic flex | Higher in static/low-flex |
| Adhesion | Good with treatment | Excellent (rough surface) |
| Fine Line Etch | Acceptable | Better |
| Typical Applications | Dynamic flex, high reliability | Static flex, consumer electronics |
Practical Decision Matrix for RA vs ED Copper
| Priority | Recommended | Reason |
|---|---|---|
| Dynamic bending / high cycle life | RA Copper | Much better fatigue resistance |
| Lowest overall cost | ED Copper | Cheaper material and easier processing |
| Fast prototype & availability | ED Copper | Standard stock and shorter lead times |
| High volume production | Depends on flex type | RA for reliability, ED for cost |
Bending Performance Comparison: Two Copper Foil Manufacturing Methods

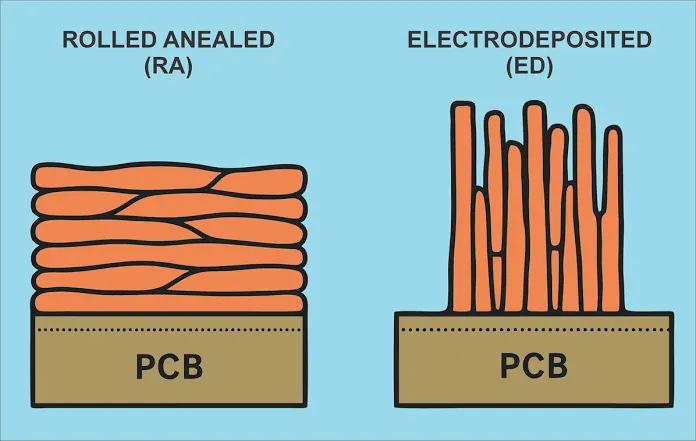

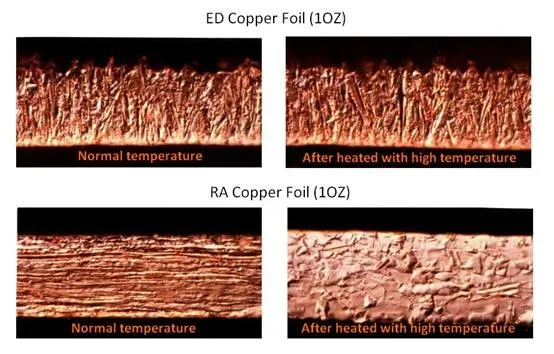

The fundamental difference comes from how the foils are made. RA copper is mechanically rolled and annealed, creating a ductile structure that withstands repeated bending far better. ED copper is grown electrolytically with a more brittle, columnar grain structure.
In real production testing, RA copper circuits often survive 10x or more bend cycles. This makes it the clear choice for wearable devices, folding screens, and automotive flex applications where motion is constant.
Cost Differences and Manufacturing Impact
ED copper offers clear cost advantages in material and processing. The premium for RA can be substantial, but in high-reliability or dynamic applications, the reduced failure rate in the field usually justifies the investment. For static flex-to-install designs, ED copper keeps costs down without compromising necessary performance.
Factory Perspective on RA Copper vs ED Copper
During DFM and CAM preparation, we evaluate bend radius, cycle requirements, and copper direction for RA foils. ED copper is simpler to process at scale. We recommend RA for any design expecting significant dynamic movement and ED for most other cases to optimize panel yield and cost.
Application Suggestions: When to Choose Each Copper Type
Choose RA Copper for:
- Dynamic flex applications with high bend cycles
- Medical, aerospace, and automotive flex circuits
- Designs with tight bend radii
Choose ED Copper for:
- Static or flex-to-install circuits
- Consumer electronics and cost-sensitive projects
- Prototypes and high-volume standard flex
Frequently Asked Questions
Q1: What is the main difference between RA and ED copper foils?
A1: RA copper is rolled and annealed for superior ductility, while ED copper is electrodeposited and more cost-effective but less flexible.
Q2: Is RA copper always better for flexible PCBs?
A2: No. Use RA only when dynamic bending performance is required. ED is often sufficient and more economical otherwise.
Q3: How much more expensive is RA copper?
A3: Typically 30-100% higher material cost, depending on thickness and volume. Total board cost difference is usually 15-40%.
Q4: Does copper type affect fine line capability?
A4: ED copper generally offers slightly better etch control for very fine features due to its surface characteristics.
Q5: Should I specify rolling direction for RA copper?
A5: Yes. Aligning the rolling direction with the primary bend axis maximizes flex life.
