SMD Pad vs NSMD Pad for HDI BGA: Which Is Better?

Author : Alex Chen | PCB Design & High-Speed Engineering Specialist

July 17, 2026


Where SMD and NSMD Pads Deliver Best Results in HDI BGA Production

In HDI boards with dense BGA footprints, NSMD pads generally give better overall solder joint reliability and assembly yields for most volume production runs. They allow full copper exposure for stronger wetting and fillet formation. SMD pads become the practical choice when pitch drops below 0.5mm or when routing density forces tighter mask control to prevent bridging. From the fab side, we see NSMD winning on process stability in standard HDI builds, while SMD helps maintain panel yields when mask registration is pushed to the limit.

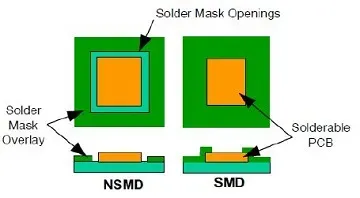

Cross-sectional diagram comparing SMD (solder mask overlapping copper edges) and NSMD (full copper exposure with clearance to mask) pads on an HDI layer

SMD vs NSMD Pad Quick Comparison for HDI BGA

Factor SMD Pads NSMD Pads
Cost Impact Slightly lower fab cost due to relaxed copper etch tolerance Minimal added cost; can reduce layer count via better routing
Manufacturing Complexity Higher mask alignment critical More forgiving on registration; copper-defined
Solder Joint Reliability Good mechanical anchor but higher void risk Superior fillet and thermal cycling performance
Yield in HDI BGA Better for ultra-fine pitch (<0.4mm) Higher in standard 0.5-0.8mm pitches
Routing Density Allows tighter pad spacing with mask dam Requires more clearance but enables escape routing
Lead Time Similar, but tighter DFM checks Often faster CAM approval
Typical HDI BGA Applications Mobile, wearables, fine-pitch processors Networking, automotive, computing modules

Decision Matrix: Choosing SMD or NSMD Based on Priorities

If your priority is... Better Choice Why
Lowest fab and assembly cost NSMD Better routing often reduces layers; consistent paste volume
Highest solder joint reliability under thermal cycling NSMD Full wetting and fillet reduce fatigue failures
Ultra-fine pitch HDI BGA (<0.5mm) SMD Mask dam prevents bridging in tight spaces
Fast prototype turnaround NSMD Easier DFM and less sensitive to mask tolerances
Maximum mechanical shock resistance SMD Mask overlap anchors pad to laminate better
Mass production yield stability NSMD Less process variation in standard HDI flows

How Pad Definition Affects Solder Joint Formation in HDI BGAs

During reflow, NSMD pads let solder wet the entire copper surface and form a robust side fillet. This distributes stress more evenly across the joint, which we see holding up better in thermal cycling tests common for HDI modules. SMD pads restrict the wetting area to the mask opening, creating a more contained joint. While this can reduce solder volume variation, it often leads to higher voiding because trapped gases have fewer escape paths. In production, we notice NSMD joints showing 15-20% better fatigue life in many BGA applications, but the difference narrows when SMD mask overlap is tightly controlled.

The trade-off shows up clearly in HDI designs where microvias sit near or in pads. NSMD gives more predictable copper-to-solder interface, while SMD requires extra attention in CAM to avoid mask encroachment that shrinks the effective pad.

Manufacturing Complexity and Yield Differences

From a fabrication standpoint, NSMD pads are generally easier to process because pad size is defined by copper etching, which we control to tighter tolerances than solder mask. SMD demands precise mask-to-copper registration, especially on HDI panels with multiple lamination cycles. Misregistration by even 1-2 mils can turn a good SMD design marginal, dropping yields noticeably in high-volume runs.

In production we typically see higher first-pass yields with NSMD on 0.5mm and 0.65mm pitch BGAs. For finer pitches common in advanced HDI, SMD becomes necessary to maintain solder mask dams between pads, but it increases DFM iterations and potential scrap if mask alignment drifts. Panel utilization stays similar, but NSMD often allows slightly better trace routing, improving overall material efficiency.

Cost Comparison in Real HDI Production Runs

Direct fab cost difference between SMD and NSMD is small, but the ripple effects matter. NSMD frequently enables better layer reduction in HDI stacks because of improved escape routing space around fully exposed pads. We have seen designs drop one or two layers when switching to NSMD, cutting material and processing costs significantly. SMD, while sometimes cheaper per panel due to simpler etch considerations, can drive up total project cost through added layers or longer lead times for mask-critical jobs.

Assembly houses also report more consistent paste deposition with NSMD, reducing rework and improving SMT line throughput. The cost advantage tilts toward NSMD unless your design is so dense that SMD is mandatory for manufacturability.

Manufacturing process flow highlighting key DFM

Reliability Under HDI BGA Stress Conditions

NSMD pads excel in thermal cycling and vibration because the solder can anchor around the full pad perimeter. SMD pads rely more on the mask for mechanical locking, which helps against pad lift in drop tests but can concentrate stress at the mask edge during cycling. In automotive and telecom HDI modules we fabricate, NSMD joints tend to show fewer cracks propagating from the board side. However, for very large BGAs or high-shock environments, the extra anchoring of SMD can be the safer manufacturing choice despite the soldering trade-offs.

Factory Perspective on Evaluating SMD vs NSMD for HDI

During DFM review, we look first at pitch and via placement. For most HDI BGA jobs, NSMD passes quicker with fewer comments because copper definition is stable across panels. CAM preparation for SMD requires careful solder mask expansion settings and tighter tolerances, increasing engineering time. Production yield is more predictable with NSMD as it is less sensitive to lamination shifts common in HDI builds. Process stability favors NSMD for standard runs, while panel utilization can suffer slightly with SMD if extra clearance is needed around mask features.

Tooling is similar, but inspection requirements ramp up for SMD—AOI must verify mask overlap precisely. We normally recommend NSMD unless the design rules explicitly require SMD for density. In high-mix low-volume, NSMD reduces risk; in ultra-high volume fine-pitch, we work closely with the customer to qualify SMD parameters.

SMD and NSMD pads based on BGA pitch

Which Option Should You Choose for Your HDI BGA?

Choose NSMD pads if you:

  • Target standard to mid-fine pitch (0.5mm+) HDI BGAs
  • Prioritize thermal cycling reliability and lower void rates
  • Want to optimize routing and potentially reduce layer count
  • Run medium to high volume production
  • Seek easier DFM approval and stable yields

Choose SMD pads if you:

  • Face very fine pitch (<0.5mm) or extreme routing density
  • Need maximum pad anchoring for mechanical shock environments
  • Work with specific component recommendations requiring mask-defined control
  • Accept tighter process controls for high-reliability low-volume builds

There is no universal winner in the SMD vs NSMD pad debate—only the right fit for your specific HDI stackup, BGA package, and production conditions. Early discussion with your fabricator avoids costly respins.

FAQs

Q1: Does choosing NSMD always improve reliability over SMD in HDI BGA designs?

A1: Not always. NSMD typically provides better solder joint fatigue life, but SMD can offer superior pad retention in high mechanical stress applications. The best choice depends on your dominant failure mode—thermal vs. shock.

Q2: How much does SMD vs NSMD affect PCB fabrication cost for HDI boards?

A2: Direct impact is low, but NSMD often lowers total cost by enabling fewer layers through improved routing. SMD may add minor engineering time and yield risk in tight designs.

Q3: Can we mix SMD and NSMD pads on the same HDI BGA footprint?

A3: Yes, some factories support mixed approaches—using SMD for power/ground or critical fine-pitch areas and NSMD elsewhere. It requires careful DFM coordination but can optimize both density and reliability.

Q4: What pitch threshold usually forces us to switch from NSMD to SMD?

A4: Below 0.5mm pitch, especially with via-in-pad, SMD often becomes necessary to guarantee solder mask dams and prevent bridging in HDI layouts.

Q5: How do assembly yields compare between the two pad types?

A5: NSMD generally delivers higher and more repeatable SMT yields due to better paste release and wetting. SMD can match it with excellent mask control but is more sensitive to process variations.

Q6: Should we always follow the component manufacturer's recommended pad type for HDI BGA?

A6: Start with their recommendation, but discuss with your fab and assembler. Real-world manufacturing data sometimes favors a different choice for volume production.
