Understanding Rigid PCB Drill Sizes: Best Practices for Via and Hole Design

Introduction

Rigid PCB drill sizes form the foundation of reliable interconnects in printed circuit boards used across electronics applications. Engineers must carefully select these sizes to ensure proper component fit, signal integrity, and manufacturing yield. In rigid PCB via design, the drill size directly influences plating quality and aspect ratios, which are critical for multilayer boards. Similarly, rigid PCB hole sizes determine assembly success, as mismatches can lead to insertion forces that damage leads or boards. Understanding rigid PCB drill tolerances is essential to account for process variations during fabrication. This article explores these elements with structured guidance for electric engineers designing high-performance rigid PCBs.

What Are Rigid PCB Drill Sizes and Why Do They Matter?

Rigid PCB drill sizes refer to the initial diameter of holes created by mechanical or laser drilling before electroplating. These sizes expand slightly during plating due to copper deposition on the walls, resulting in a finished hole size that accommodates component leads or via connections. In rigid PCB via design, smaller drill sizes enable denser routing but increase challenges like drill breakage and plating voids. Larger sizes suit through-hole components requiring robust mechanical strength. The choice impacts overall board reliability, as inadequate sizes lead to issues such as poor solder joints or thermal failures.

The relevance stems from the need to balance electrical performance with manufacturability. For instance, vias must handle current without excessive resistance, while holes ensure press-fit or wave soldering compatibility. Rigid PCB drill tolerances define the allowable deviation from nominal sizes, influencing yield and cost. Engineers ignoring these factors risk redesigns or field failures. Standards like IPC-2221 provide guidelines to align designs with fabrication capabilities, ensuring consistency across production runs.

Technical Principles of Rigid PCB Via and Hole Design

In rigid PCB via design, the primary principle is the aspect ratio, defined as board thickness divided by drill diameter. High aspect ratios complicate plating uniformity, as electrolyte penetration becomes uneven in deeper holes. Engineers calculate this ratio early to avoid defects like dog-boning, where plating thickens at the top and bottom. Finished hole sizes account for plating buildup, typically reducing the effective diameter. Non-plated holes, such as mounting or tooling, follow simpler rules but still require precise sizing for alignment.

Hole positioning accuracy depends on drill tolerances and panel registration. Mechanical drilling uses carbide bits that can wander in fibrous laminates, necessitating entry and backup materials. Laser drilling offers tighter tolerances for microvias but is costlier for standard rigid boards. Rigid PCB hole sizes must consider annular ring dimensions around pads to prevent breakout during etching. These principles ensure vias and holes support high-speed signals without crosstalk or impedance mismatches.

Plating chemistry and thickness further refine finished dimensions. Copper plating, often 25 micrometers or more, mandates drill sizes larger than final requirements. Thermal expansion differences between copper and substrate affect hole stability post-reflow. Engineers model these effects using simulation tools integrated with design software. Adhering to principles outlined in IPC-6012 helps qualify boards for demanding environments.

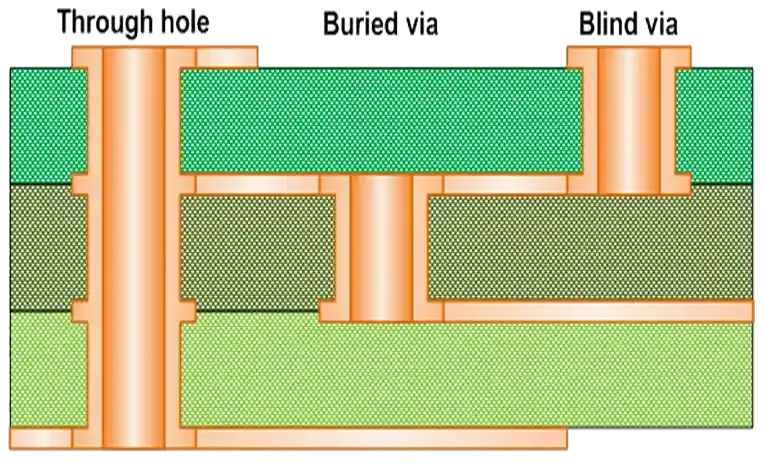

Cross-Section of Plated Through-Hole Via

Factors Influencing Rigid PCB Drill Sizes

Several factors dictate optimal rigid PCB drill sizes. Component lead diameters set the baseline for through-hole parts, with clearance allowing for lead deformation during insertion. For vias, current carrying capacity guides minimum sizes to minimize resistance and heat. Board stackup thickness directly scales drill diameters to maintain feasible aspect ratios, typically below ten to one for standard processes. Material drillability varies; glass-reinforced epoxies demand larger sizes than paper-based laminates to reduce bit wear.

Density requirements push toward microvias, but rigid boards favor mechanical drills for cost. Environmental factors like vibration or temperature cycling influence size selection for mechanical robustness. Engineers perform design rule checks to verify sizes against layer counts and routing constraints. Oversized drills ease fabrication but waste copper and increase capacitance.

Rigid PCB Stackup with Vias and Holes

Rigid PCB Drill Tolerances: Key Considerations

Rigid PCB drill tolerances specify the permissible variation in hole diameter and position. Plated holes exhibit tighter controls than non-plated due to post-plating inspection. Tolerances account for drill bit runout, spindle accuracy, and material inconsistencies. Positional tolerances ensure hole-to-hole and hole-to-pad alignment, critical for BGA or fine-pitch components. Standard classes differentiate between prototype and production needs, with higher classes demanding sub-mil precision.

Breakout tolerances define acceptable pad encroachment from drill wander. Engineers specify tolerances in fabrication drawings to match supplier capabilities. IPC-A-600 criteria evaluate finished hole quality, including wall roughness and plating continuity. Relaxed tolerances suit low-cost boards, while tight ones support aerospace applications. Monitoring tolerances prevents yield losses from mismatched assemblies.

Best Practices for Rigid PCB Via and Hole Design

Start with a drill chart aligned to standard bit sizes to minimize custom tooling costs. For rigid PCB via design, prioritize through-vias for simplicity unless blind or buried vias justify added expense. Maintain annular rings at least twice the drill tolerance for etch safety margins. Simulate plating flow for high-aspect holes to predict uniformity. Use staggered drilling patterns to reduce heat buildup and resin smear.

Incorporate fiducials for registration in multilayer rigid PCBs. Specify finished hole sizes rather than drill sizes in designs, letting fabricators calculate pre-plating diameters. Validate designs with DFM analysis focusing on rigid PCB drill sizes and tolerances. For high-reliability boards, opt for controlled depth drilling where applicable. Test prototypes with sectioning to verify hole geometry.

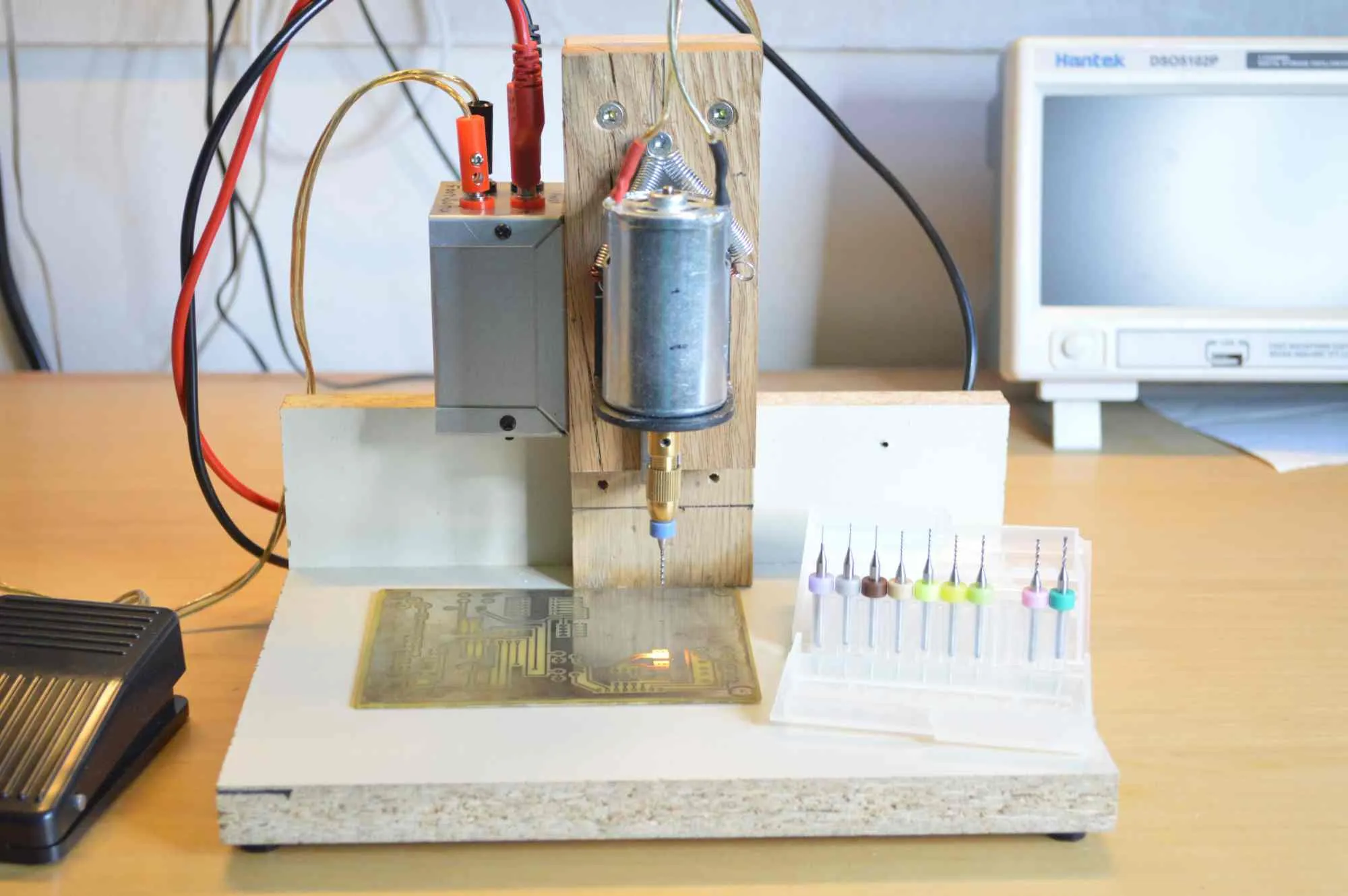

PCB Drilling Process Setup

Common Challenges in Rigid PCB Drill Size Selection

Drill breakage plagues small rigid PCB drill sizes, especially in thick boards. Solutions include peck drilling cycles and coolant use. Plating voids arise from high aspect ratios, mitigated by pulse plating techniques. Hole wall roughness from poor chip evacuation leads to adhesion failures; optimize feed rates accordingly. Misregistration in multilayer stacks stems from drill tolerances; employ x-ray inspection for verification.

Aspect ratio limits constrain via density; redesign stackups or use filled vias as alternatives. Thermal mismatch causes hole barrel cracking post-soldering; select matched CTE materials. Troubleshooting involves root cause analysis via cross-section microscopy. Document lessons to refine future rigid PCB via designs.

Conclusion

Mastering rigid PCB drill sizes, via design, hole sizes, and drill tolerances elevates board performance and manufacturability. Engineers benefit from structured adherence to technical principles like aspect ratios and plating effects. Best practices, including standard charts and DFM checks, minimize risks. Challenges such as breakage and voids yield to process optimizations. By integrating these insights, designs achieve reliability across applications. Consult standards for consistent results in rigid PCB projects.

FAQs

Q1: What factors determine rigid PCB drill sizes for vias?

A1: Rigid PCB drill sizes for vias depend on board thickness, current requirements, and aspect ratio limits. Engineers select sizes to ensure uniform plating and adequate annular rings. Finished sizes account for copper buildup, typically requiring larger initial drills. Alignment with fabrication capabilities prevents defects like voids. Following IPC guidelines optimizes via reliability in multilayer rigid boards.

Q2: How do rigid PCB drill tolerances affect hole quality?

A2: Rigid PCB drill tolerances control diameter and position variations, directly impacting assembly fit. Tighter tolerances suit high-density designs with fine-pitch components. Plated holes demand precision to maintain wall integrity post-plating. Positional accuracy prevents misalignment in stacks. Engineers specify tolerances based on class levels for balanced cost and performance.

Q3: Why is aspect ratio critical in rigid PCB hole sizes?

A3: Aspect ratio, board thickness over hole diameter, governs plating penetration in rigid PCB hole sizes. Exceeding limits causes uneven copper deposition and reliability issues. Smaller holes enable density but heighten risks. Designers cap ratios to match process capabilities. This principle ensures robust interconnects in demanding applications.

Q4: What are best practices for specifying rigid PCB via design?

A4: In rigid PCB via design, use standard drill sizes and verify annular rings exceed tolerances. Simulate plating for high-aspect vias. Stagger patterns to manage heat. Specify finished dimensions for clarity. Prototype sectioning confirms geometry before production scaling.
