FPC silkscreen on pad or legend overlap solder mask opening is one of the most common DFM flags we see on flexible circuits. It looks harmless in the CAD view, yet it creates multiple problems during fabrication and assembly.
The combination of thin coverlay, precise pad openings, and printing registration makes flex far less forgiving than rigid boards.

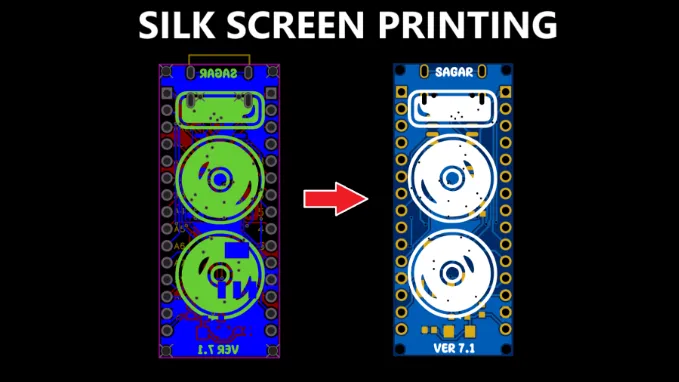

Required Spacing Between Legend and Pads or Openings
Standard practice requires at least 0.15mm clearance between any legend character and the edge of a solder mask opening or pad. Many shops prefer 0.2mm for better yield. This gap accounts for registration tolerance, ink spread, and coverlay window variation.
Smaller gaps frequently lead to ink overlapping the pad area during printing.
What Actually Goes Wrong When Legend Overlaps Pads
When FPC silkscreen sits on or too close to pads, the ink contaminates the solderable surface. This creates poor wetting during SMT, leading to weak joints, open circuits, or tombstoning. In extreme cases the legend acts as a mask and prevents solder from reaching the pad.
Even if the ink is thin, it changes surface energy and flux behavior. During reflow the legend can burn or release gases that cause voids. For fine-pitch components this is especially risky.
Assembly inspection also becomes harder. AOI systems struggle with legend-covered pads, increasing false calls and manual verification time.
Coverlay Interaction Makes It Worse
On flex, the solder mask opening is usually a coverlay window. Legend near or over these windows tends to wick into the opening or create raised edges that interfere with component placement.
Why This Remains a High-Frequency DFM Issue

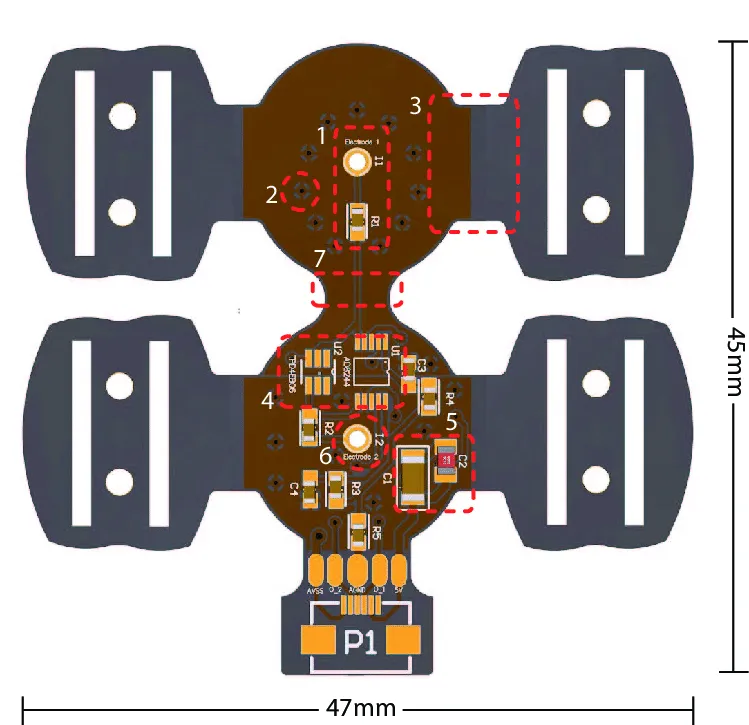

Designers place reference designators close to components to save space on dense FPC layouts. When the board is crowded, characters naturally drift toward pads. Many libraries have default text positions optimized for rigid boards where tolerances are looser.
The combination of small component footprints, tight routing, and flex-specific keep-out requirements makes legend overlap solder mask opening a recurring problem. It appears in roughly 60-70% of new FPC designs we review.
Standard Practices for Moving Characters During File Review

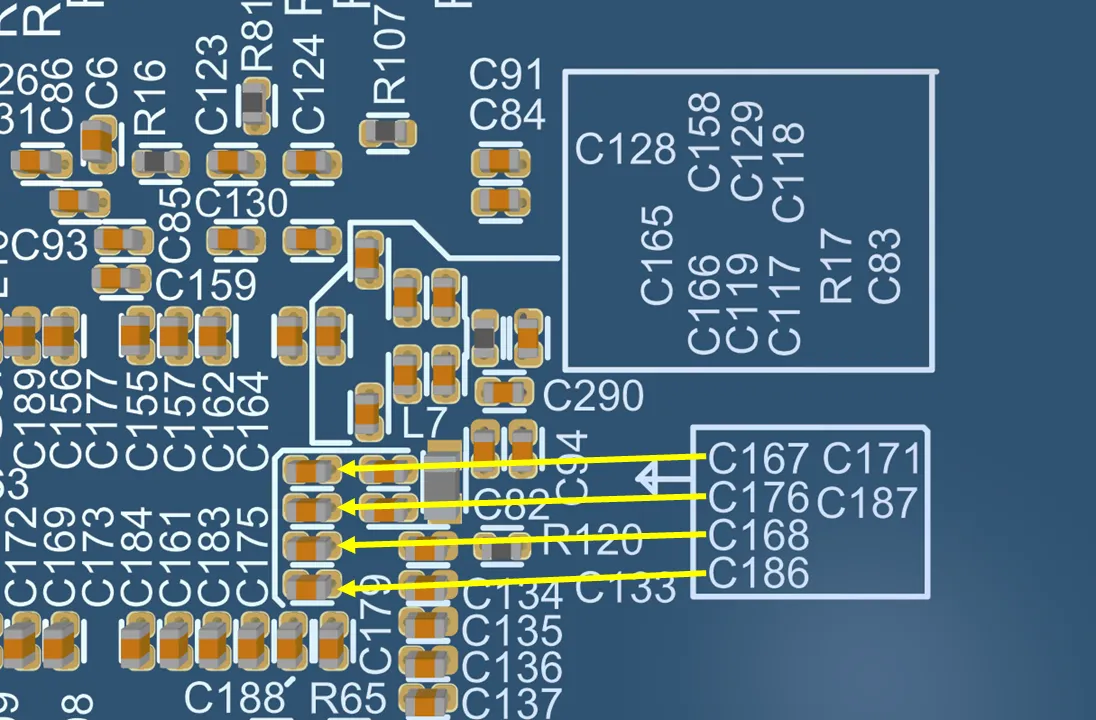

In engineering review we move offending legend to the nearest safe location while keeping it associated with the correct component. Common adjustments include rotating text, using abbreviated markers, or shifting entire groups to available space near stiffeners.
When space is extremely limited we sometimes request removal of non-critical markings or relocation to the opposite side of the board. For critical polarity or pin-1 indicators we prioritize clear placement even if it requires minor layout changes.
We always verify that moved legend maintains minimum spacing to copper and coverlay features on both sides.
Preventive Rules for Layout
Create flex-specific text placement rules in your CAD library. Set automatic keep-outs around pads and coverlay windows. Review the legend layer as a separate step before releasing for fabrication.
Longer-Term Reliability Concerns
Legend overlapping pads does not only affect initial assembly. Over time, especially in dynamic flex applications, the ink can delaminate or contaminate contacts, leading to intermittent failures or corrosion.
Clean pad surfaces matter for long-term solder joint integrity under thermal expansion and bending stress typical of FPC use.
Key Takeaways for Avoiding FPC Silkscreen on Pad Issues
Treat legend placement as a critical DFM item rather than an afterthought. Respect the 0.15–0.2mm clearance rule to all solder mask openings. Build and use flex-specific component libraries that enforce proper text positioning from the start.
Catching FPC silkscreen on pad or legend overlap solder mask opening early saves significant time in both prototype and production runs. The small adjustments made during layout or DFM review deliver much cleaner, more reliable flexible circuits.
Good legend discipline is part of professional FPC design practice. It separates designs that build smoothly from those that require multiple revisions.
