FPC Coverlay vs Solder Mask Opening: Why the Distinction Matters in Flexible PCB Production
In flex PCB manufacturing, coverlay openings and solder mask openings serve similar purposes but behave very differently during fabrication and assembly. From the factory side, confusing the two leads to DFM issues, yield loss, and reliability problems. Coverlay is the standard protection layer for flexible circuits, while solder mask is typically used on rigid sections or rigid-flex boards.

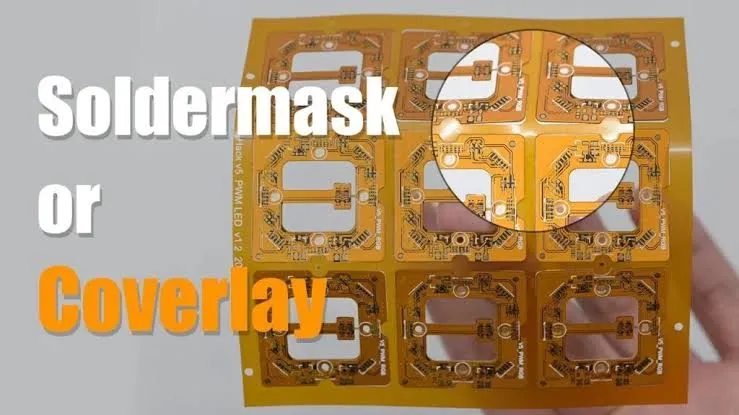

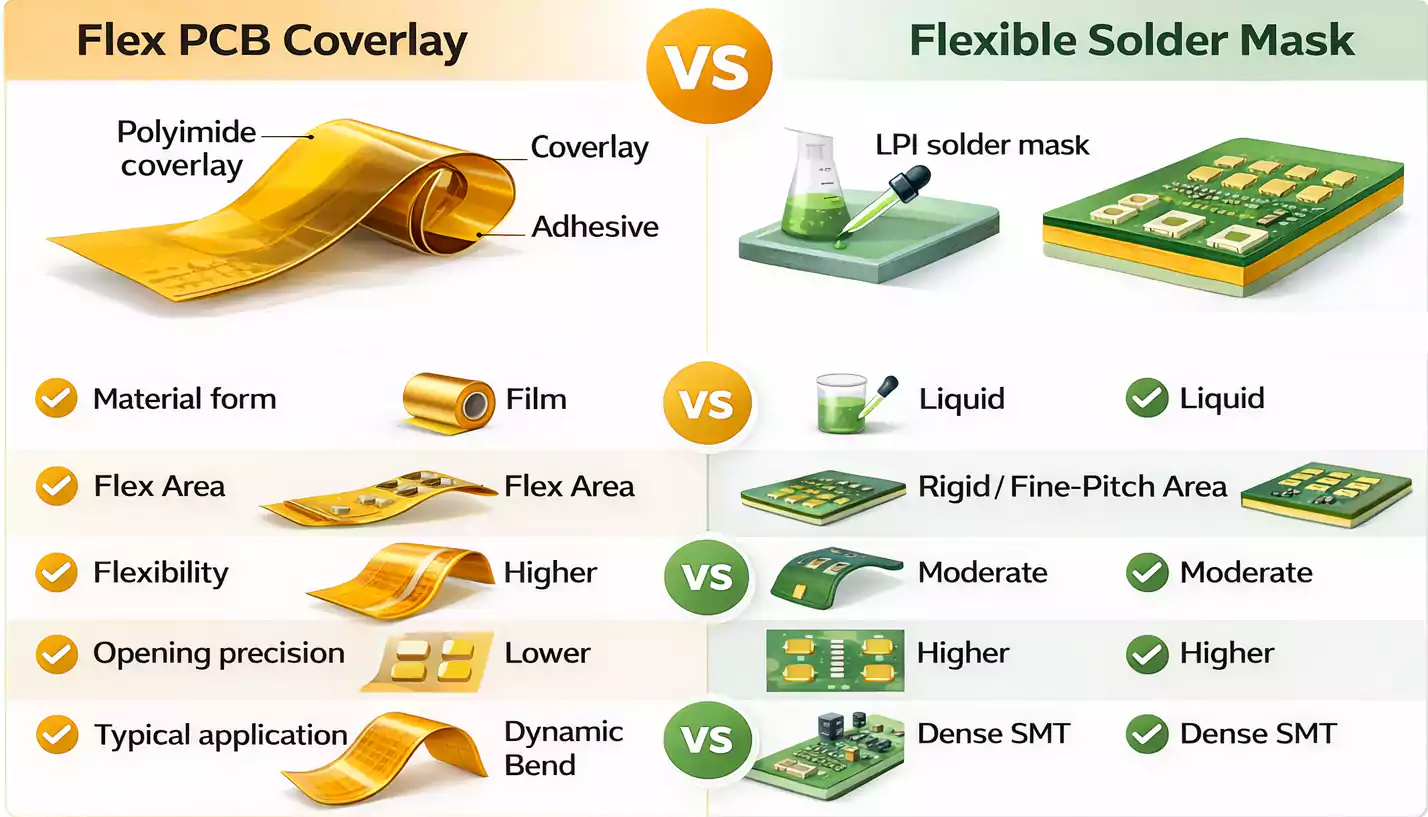

Coverlay vs Solder Mask Opening: Core Manufacturing Comparison
| Factor | Coverlay Opening | Solder Mask Opening |
|---|---|---|
| Material Type | Polyimide film + adhesive | Liquid or dry film photoimageable ink |
| Flexibility | Excellent, maintains bendability | More rigid, can crack under flex |
| Thickness Control | Precise (typically 12-50μm) | Thinner, variable coverage |
| Adhesion on Flex | Strong with proper lamination | Poorer on pure flex areas |
| Registration Tolerance | Tighter control needed | More forgiving in rigid areas |
| Cost & Processing | Higher, requires lamination | Lower, standard screening |
| Typical Use | Flexible circuit areas | Rigid sections or rigid-flex |
Decision Matrix: Choosing the Right Opening Type
| If your priority is... | Better Choice | Why from Production View |
|---|---|---|
| Dynamic flex reliability | Coverlay Opening | Maintains flexibility without cracking |
| Cost-sensitive rigid areas | Solder Mask Opening | Cheaper and faster to apply |
| Fine pitch component pads | Coverlay (with tight tolerance) | Better definition on flex substrates |
| High temperature resistance | Coverlay Opening | Polyimide offers superior thermal performance |
| Quick prototype on rigid-flex | Solder Mask (rigid part) | Standard process for rigid sections |
Essential Differences in Opening Construction and Performance

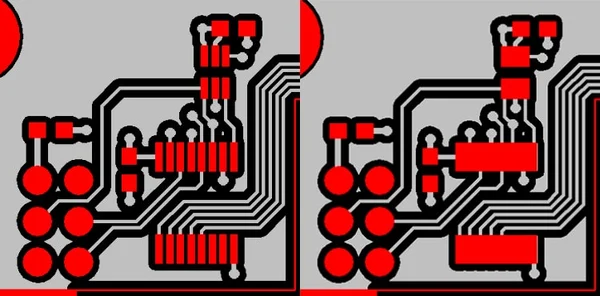

Coverlay openings are created by mechanically or laser-cutting precise windows in a polyimide film before lamination onto the flex circuit. This provides robust mechanical protection while allowing component attachment. Solder mask openings are formed photolithographically on the copper surface, similar to rigid PCBs, but perform poorly when subjected to repeated bending.
In production, coverlay gives better encapsulation around pads and traces on flex areas, reducing the risk of copper exposure or shorts. Solder mask is prone to peeling or cracking at the rigid-flex transition zones if used inappropriately on flex portions.
Applicable Scenarios for Coverlay and Solder Mask Openings
We recommend coverlay openings for all pure flexible circuit areas, especially in dynamic bend zones, high-reliability applications (medical, automotive, aerospace), and designs with fine-pitch SMD components. Solder mask openings are appropriate for rigid board sections in rigid-flex constructions or static parts where cost is the main driver and no bending occurs.
Mixed use is common in rigid-flex boards: coverlay on the flex layers and solder mask on the rigid layers. This hybrid approach requires careful DFM coordination to ensure proper transition management.
Common Design Misconceptions and Factory Recommendations
One frequent mistake is treating coverlay openings exactly like solder mask openings in terms of size and tolerance. Coverlay requires larger clearance and more precise registration because of the lamination process and material shrinkage. Another error is specifying solder mask on flex areas expecting rigid-board performance — this often leads to cracking during bending or assembly.
During CAM review, we frequently adjust opening sizes and add teardrops or anchors specifically for coverlay designs to improve yield and solderability.
Factory Perspective on FPC Coverlay vs Solder Mask Processing
In fabrication, coverlay processing adds steps (cutting, alignment, lamination, and curing) but delivers superior protection for flexible circuits. Solder mask application is simpler and cheaper but limited in applicability. We always advise designers to clearly specify coverlay requirements early so we can optimize panelization, registration, and inspection criteria accordingly.
Which Opening Type Should You Specify?
Use Coverlay Openings when:
- Designing pure FPC or dynamic flex areas
- Needing maximum flexibility and durability
- Working with fine pitch or high-reliability components
- Operating in harsh environments
Use Solder Mask Openings when:
- Protecting rigid sections of rigid-flex boards
- Prioritizing lowest cost on non-flex areas
- Producing simple static assemblies
Frequently Asked Questions
Q1: Can I use solder mask instead of coverlay on flexible PCBs?
A1: Generally no. Solder mask lacks the flexibility and durability needed for most FPC applications and tends to crack during bending.
Q2: How much larger should coverlay openings be compared to pad sizes?
A2: Typically 0.1-0.3mm larger on each side depending on tolerance and registration capability. We adjust based on specific material and process.
Q3: What is the main advantage of coverlay over solder mask in flex circuits?
A3: Superior mechanical protection and flexibility while maintaining excellent electrical insulation in bending areas.
Q4: Do rigid-flex boards use both coverlay and solder mask?
A4: Yes. Coverlay is used on the flexible portions and solder mask on the rigid portions for optimal performance in each zone.
Q5: How do coverlay openings affect impedance control in flex designs?
A5: They have less impact than solder mask due to consistent dielectric thickness, but precise opening placement is important for high-speed signals.
