Why Your HDI Stackup Cannot Always Follow the Original Design

Author : AIVON | PCB Manufacturing & Supply Chain Specialists

July 16, 2026


In production we frequently modify the HDI stackup submitted by designers to match our current material inventory, lamination press capabilities, and process controls. CAM engineers review every HDI build-up and adjust layer sequencing, dielectric thicknesses, and copper weights while keeping electrical performance and reliability targets intact.

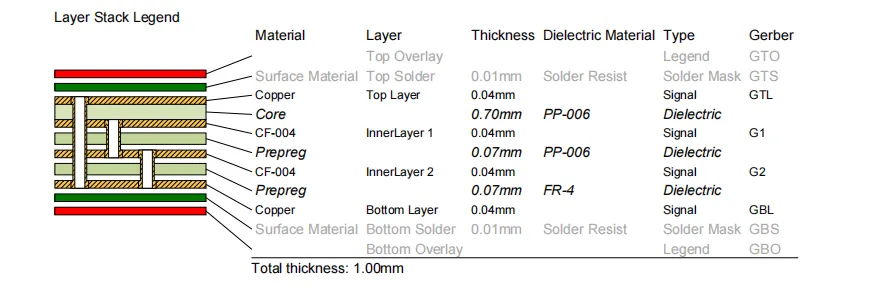

HDI stackup

Why Factories Must Adjust HDI Stackup During DFM Review

HDI stackup modification becomes necessary when the proposed construction uses materials we do not stock in sufficient quantity or when the layer count and via structure exceed our qualified lamination parameters. We prioritize reliable registration and resin flow over following the drawing exactly when conflicts arise.

What we typically see on the CAM side is that aggressive designs with many sequential laminations increase the risk of delamination or misregistration during volume runs.

Material Inventory Constraints That Force Stackup Changes

We maintain limited core and prepreg types optimized for our press parameters. When a design calls for special high-speed materials or non-standard thicknesses that are not in stock, we propose equivalent alternatives already qualified in our process. Using unproven materials for HDI builds risks voiding reliability data and extending lead times significantly.

Inventory-driven HDI stackup modification ensures we can start production without waiting for special orders while maintaining consistent quality across batches.

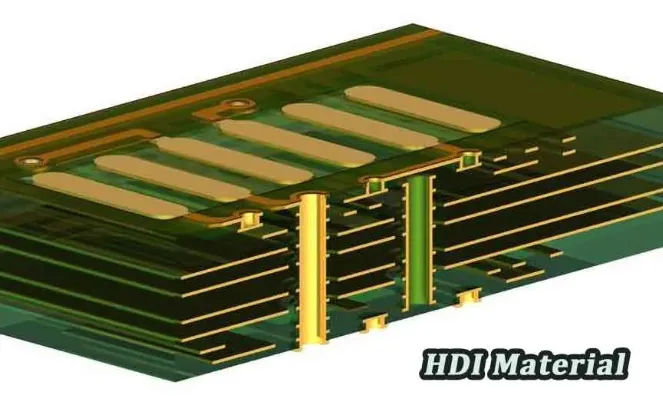

HDI materials

Lamination Capability Limits in High Layer HDI Builds

Our presses have maximum platen size, pressure, and temperature controls calibrated for specific constructions. Designs with too many sequential laminations or extreme thickness variations cause uneven resin flow and copper wrinkling. We adjust the stackup by redistributing prepreg plies or changing core thicknesses to stay within proven parameters.

Exceeding these limits typically results in higher scrap rates from blistering or inner layer misalignment that only appears after drilling and plating.

Board Thickness Control During HDI Stackup Modification

Finished board thickness tolerance is tightly controlled for assembly compatibility. When the original stackup pushes the limit, we balance copper distribution and dielectric layers to hit the target thickness. HDI designs with many thin dielectrics are particularly sensitive to press compression variation.

We measure coupons from every panel and adjust future runs based on actual pressed thickness data to maintain consistency.

Balancing Reliability With Manufacturing Constraints

Every HDI stackup modification considers long-term reliability under thermal cycling and voltage stress. We avoid combinations known to cause CAF or delamination even if they match the impedance targets on paper. Qualified constructions take precedence when designer proposals fall outside our proven database.

This balance prevents field failures that damage both customer products and our reputation. We document all changes and provide updated stackup drawings for approval before production release.

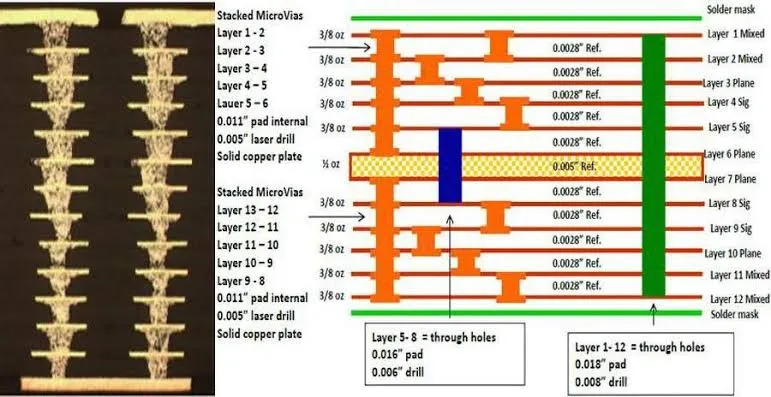

micrograph of properly modified HDI stackup

What Happens When HDI Stackup Is Not Adjusted

Pressing non-optimized stacks leads to warped panels, misdrilled vias, plating voids, and inconsistent impedance. Yield drops sharply and reliability testing failures increase. In severe cases the entire lot is scrapped after expensive processing steps, causing shipment delays and extra costs for all parties.

How We Recommend Designers Approach HDI Stackup

Provide target impedance, layer count, and via types early. Allow flexibility in dielectric selection and copper weights. Work with us during initial DFM to select from our qualified HDI constructions. This approach minimizes HDI stackup modification while achieving the required electrical and mechanical performance.

Early collaboration on stackup avoids most downstream problems and keeps HDI projects on schedule with reliable results.
