Shengyi vs Kingboard Materials for HDI PCB Manufacturing
From the fabrication side, Shengyi materials often edge out in consistency for high-layer HDI builds, while Kingboard delivers strong cost advantages with reliable performance for standard applications. In HDI PCB material comparison, the decision usually comes down to your Tg needs, Dk control, and production timeline.

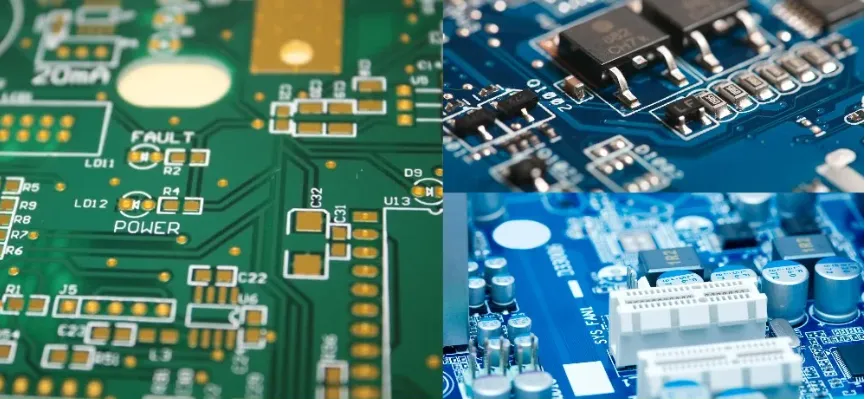

Shengyi vs Kingboard for HDI: Quick Manufacturing Trade-offs
Shengyi laminates generally provide tighter tolerances and better high-Tg options suited for complex HDI stackups, whereas Kingboard materials excel in availability and lower pricing for mid-volume runs. Factories see Shengyi delivering more stable yields in laser drilling and multi-lamination cycles, while Kingboard supports faster turnarounds on standard FR-4 based HDI.
HDI PCB Material Comparison Table: Shengyi vs Kingboard
| Parameter | Shengyi (e.g. S1000-2 / S1000H) | Kingboard (e.g. KB-6165 / KB-6160) |
|---|---|---|
| Typical Tg (°C) | 150-180 | 130-170 |
| Dk (1GHz range) | 4.0-4.5 | 4.3-4.6 |
| Cost Position | Premium | More competitive |
| Material Consistency | Higher (tighter tolerances) | Good for standard production |
| Lead Time / Inventory | Moderate, strong supply chain | Often faster local stock |
| HDI Suitability | Excellent for high-layer / fine feature | Solid for cost-sensitive HDI |

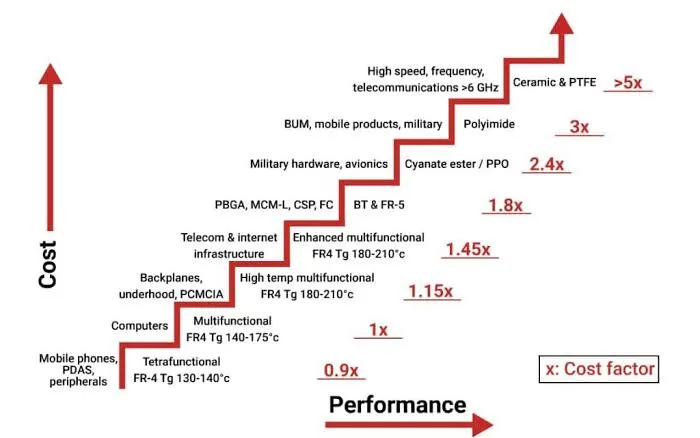

Decision Matrix: Selecting Shengyi or Kingboard Materials
| Priority | Better Choice | Factory Reason |
|---|---|---|
| High Tg & thermal reliability | Shengyi | Superior performance in multi-lamination HDI |
| Lowest material cost | Kingboard | Better panel pricing and availability |
| Tight impedance control | Shengyi | More consistent Dk across panels |
| Fast prototype / short lead time | Kingboard | Local stock advantages |
| High-volume HDI production | Depends on volume – Kingboard for cost, Shengyi for yield | Balance DFM feedback |
Material Characteristics: Shengyi vs Kingboard CCL Features in HDI
Shengyi’s S1000-2 series offers higher Tg around 180°C with excellent thermal resistance, making it a go-to for HDI boards undergoing multiple reflows or harsh environments. Kingboard’s KB-6165 and similar grades provide solid mid-Tg performance at lower price points. In CAM preparation for HDI, Shengyi materials show more predictable resin flow and better compatibility with laser drilling processes.

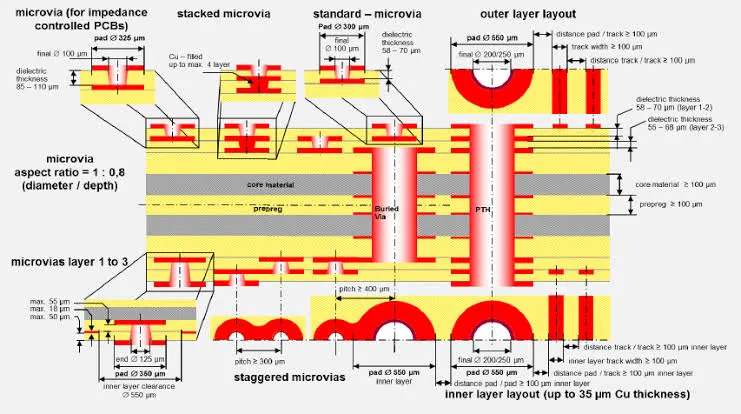

Tg Performance Differences and HDI Processing Implications
Higher Tg materials from Shengyi maintain better dimensional stability during sequential lamination cycles common in HDI. Kingboard materials perform adequately up to certain layer counts but may require more careful press cycle tuning at elevated temperatures. In production, we notice fewer registration issues with Shengyi when pushing for dense interconnects.
Dk Values and Signal Integrity in HDI Applications
Both suppliers deliver Dk in the 4.0-4.6 range suitable for most HDI designs, but Shengyi often provides tighter control and lower variation panel-to-panel. This matters for impedance-sensitive HDI layers. Kingboard remains competitive for applications where absolute precision is secondary to overall cost.
Inventory Availability and Lead Time Considerations
Kingboard materials frequently enjoy better local inventory in Asian fabs, supporting shorter lead times for standard HDI orders. Shengyi maintains strong global supply chains with reliable stock for high-Tg grades, though premium materials may carry slightly longer waits during peak demand. In our experience, dual-sourcing strategies help mitigate supply risks in HDI PCB material comparison.
Factory Perspective on Shengyi vs Kingboard in HDI Production
During DFM review, Shengyi laminates often require fewer adjustments for high-density HDI due to consistent thickness and copper adhesion. Kingboard materials shine in high-volume standard builds where process windows are broader. Yield and panel utilization are generally high with both, but Shengyi edges ahead in complex multi-lamination HDI where material stability reduces scrap. Most manufacturers stock both and recommend based on the specific stackup and end-use environment.
Which Material Should You Choose for Your HDI PCB?
Choose Shengyi if you:
- Need higher Tg for reliable multi-reflow or automotive-grade HDI
- Require tight Dk control and consistent panel performance
- Are building complex high-layer count boards
- Prioritize long-term reliability over initial material cost
Choose Kingboard if you:
- Focus on cost optimization in medium to high volume
- Need faster material availability and shorter lead times
- Have standard HDI designs without extreme thermal demands
- Want solid performance at competitive pricing
Frequently Asked Questions
Q1: Which material has better Tg performance for HDI PCBs?
A1: Shengyi typically offers higher Tg options (up to 180°C) compared to Kingboard’s common 130-170°C range, providing better thermal stability in complex HDI builds.
Q2: How do Dk values compare between Shengyi and Kingboard for signal integrity?
A2: Both fall in similar 4.0-4.6 ranges, but Shengyi often delivers more consistent values across panels, benefiting impedance-controlled HDI layers.
Q3: Which supplier offers better lead times for HDI production?
A3: Kingboard materials are frequently more readily available in local inventory, supporting shorter lead times, while Shengyi excels in consistent supply for premium grades.
Q4: Is there a significant cost difference in HDI PCB material comparison?
A4: Yes, Kingboard is generally more cost-competitive, making it attractive for volume production, whereas Shengyi justifies a premium through performance consistency.
Q5: Can both materials be used interchangeably in HDI designs?
A5: For many standard applications yes, but always verify Tg, Dk, and CTE against your specific stackup and reliability requirements during DFM.
