HDI microvia failure remains a major source of yield loss in complex multilayer PCB production. From laser drilling inconsistencies and plating voids to registration errors, delamination, and post-lamination cracks, many HDI defects can be traced to process parameters, material selection, stackup design, or insufficient manufacturing controls. Understanding these failure modes helps engineers identify risks during DFM review and improve production stability before defects reach final inspection.

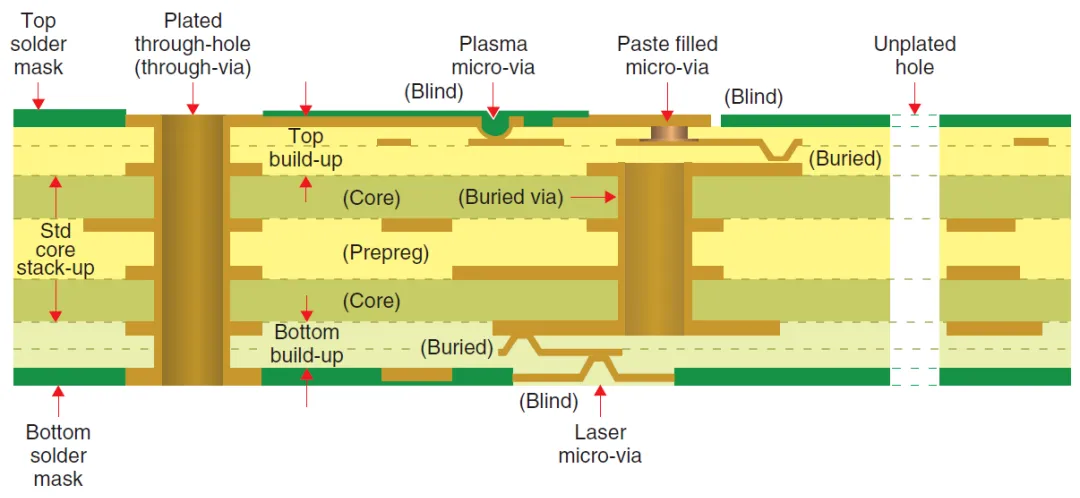

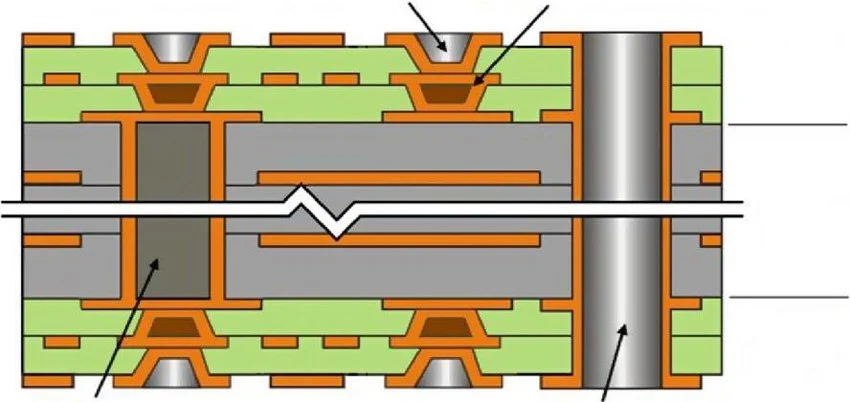

Common HDI Defects and Microvia Failure Modes in Production
Microvia reliability is one of the most critical concerns in HDI manufacturing, but common PCB defects extend beyond the microvia itself. In daily CAM and production reviews, manufacturers may encounter laser drilling defects, plating problems, dimple formation, layer registration errors, fine-line opens and shorts, delamination, resin voids, warpage, and solder mask issues.
These defects often interact with one another. For example, an inaccurate laser-drilled microvia can create a registration problem, while poor plating or inadequate filling can later develop into an electrical open or thermal reliability failure. Similarly, an unbalanced HDI stackup can cause warpage and make subsequent registration and assembly processes more difficult.
A practical HDI quality strategy therefore needs to evaluate the complete manufacturing chain rather than focusing on one defect in isolation. Design rules, material selection, laser drilling, desmear, plating, sequential lamination, imaging, etching, and final inspection all influence the finished board.
Laser Drilling Defects That Lead to HDI Microvia Failure
Laser drilling establishes the geometry of the microvia and its connection to the target copper pad. Incorrect laser parameters can produce excessive taper, resin residue, inconsistent hole diameter, or copper damage at the target. If the dielectric is not completely removed, subsequent metallization may be unable to form a reliable electrical connection.
Thin dielectric layers used in HDI structures require particularly careful process control. Excessive laser energy can damage the target pad or create an irregular via profile, while insufficient energy can leave resin residue at the bottom of the hole. Both conditions can reduce plating quality and become an early source of an HDI PCB defect.
During production setup, manufacturers typically optimize laser focus, pulse energy, frequency, scanning speed, and hit strategy according to the dielectric material and finished via dimensions. Verification of hole diameter, taper, target-pad exposure, and positional accuracy is also important before the panel proceeds to subsequent metallization processes.
Copper Plating Defects and Microvia Filling Problems
Copper plating is another major source of HDI defects because the microvia must develop sufficient and uniform copper coverage to create a reliable interconnection. Inadequate desmear, poor surface activation, unsuitable bath chemistry, or uneven current distribution can contribute to thin copper coverage or void formation inside the via.
For filled microvias, the plating process must also achieve consistent copper deposition from the via opening toward the bottom. Incomplete filling can leave internal voids or surface depressions, while excessive deposition can create over-plating, nodules, or uneven surfaces that interfere with subsequent buildup or via-in-pad assembly.
Process control should therefore include bath chemistry monitoring, current-density control, agitation, filtration, and periodic equipment maintenance. Cross-section analysis can then be used to verify copper coverage and filling quality in representative production samples. HDI fabrication references commonly identify plating voids, incomplete filling, and weak microvia interfaces as important defect mechanisms.
Dimple Formation and Its Impact on HDI PCB Reliability
Dimples can form when a plated or copper-filled microvia is not completely filled or when the filled surface is not sufficiently planarized. A small surface depression may have limited impact in some structures, but excessive dimple depth can become more important when the microvia is located beneath a BGA pad or used in a via-in-pad structure.
The concern is not only the appearance of the surface. Uneven planarization can affect solder paste deposition, solder joint formation, and the dielectric geometry of subsequent buildup layers. In high-density structures, even relatively small surface variations can reduce the available process margin.
Manufacturers should therefore control copper filling, capping, planarization, and surface preparation as an integrated process. The acceptable surface profile should be established according to the via structure, assembly requirements, and customer design specifications rather than relying on a single universal dimple value.
Registration Errors and HDI Microvia Misalignment
Layer-to-layer registration is critical in sequential HDI construction because laser-drilled microvias must land accurately on their target pads. Material movement during lamination, dimensional changes caused by temperature and moisture, press conditions, tooling accuracy, and panel handling can all contribute to registration variation.
If a microvia lands partially outside its capture pad, the connection may have reduced reliability or become electrically open. In extreme cases, insufficient clearance can also increase the risk of unintended connections to adjacent copper features. This type of HDI defect can be difficult to identify through external visual inspection alone.
CAM and fabrication teams should therefore review registration capability against the actual stackup and feature geometry. X-ray or cross-section analysis can help verify internal alignment when the structure cannot be adequately evaluated from the board surface. Maintaining realistic capture-pad dimensions and accounting for material movement during sequential lamination are also important parts of HDI DFM.

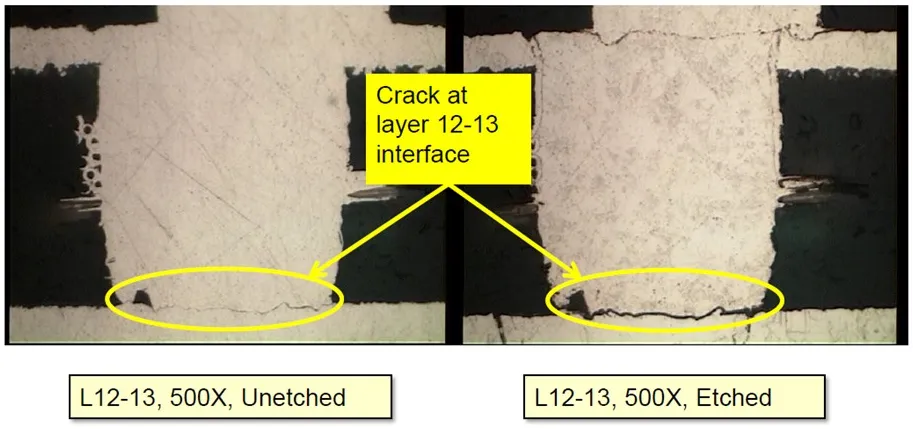

Microvia Cracks and PCB Failure Analysis in HDI Structures
Microvia cracking is one of the most important reliability concerns in HDI PCB manufacturing. Differences in thermal expansion between copper and dielectric materials can generate mechanical stress during lamination, solder reflow, and subsequent thermal cycling. High-density stacked structures may further increase local stress around the via interface.
Cracks can occur in different locations, including the via barrel, knee region, or interface between the microvia and target pad. Poor copper ductility, plating defects, excessive via geometry, material incompatibility, and manufacturing-induced voids can all contribute to crack initiation.
When an electrical open appears after thermal cycling or assembly, PCB failure analysis should not stop at the electrical symptom. Engineers may combine X-ray inspection, cross-section analysis, microscopic examination, electrical testing, and process-history review to determine whether the root cause originated in drilling, plating, lamination, registration, or material selection. Recent technical literature also emphasizes the relationship between small manufacturing-induced defects and later microvia crack growth under thermal stress.
Other Common HDI Defects Beyond Microvia Failures
Although microvia reliability is a major concern, common PCB defects in HDI production also occur in fine-line circuitry, dielectric structures, copper distribution, solder mask, and surface finishing. These defects can affect electrical performance, assembly yield, dimensional stability, and long-term reliability.
Fine-Line Opens and Shorts
As HDI PCB trace width and spacing become smaller, imaging and etching variations have less process margin. Over-etching can reduce trace width or create opens, while under-etching or unwanted copper residues can contribute to shorts between adjacent features.
Contamination, artwork compensation, exposure conditions, etch-factor variation, and insufficient spacing can all contribute to fine-line defects. These risks become more significant when fine traces are routed close to microvias, pads, and other dense copper structures. CAM review should therefore compare the intended geometry with the actual fabrication process window before production release.
Delamination, Resin Voids, and Warpage
HDI boards may undergo multiple lamination and buildup cycles, making resin flow, curing, material compatibility, and stackup symmetry important to structural reliability. Poor lamination conditions, contamination, inadequate resin flow, moisture, or excessive thermal stress can contribute to delamination or internal resin-related defects.
Copper distribution and stackup symmetry also affect board flatness. Uneven copper density between layers can create mechanical imbalance and contribute to bow or twist. Warpage can subsequently affect component placement, soldering, layer registration, and the ability to process the board consistently through assembly.
These issues are frequently discussed alongside microvia defects in HDI fabrication because the board-level structure and microvia reliability are closely connected.
Solder Mask and Surface Finish Defects
Fine-pitch HDI designs require accurate solder mask registration and consistent surface preparation. Excessive solder mask misalignment can reduce clearance around pads or expose unintended copper areas, increasing the risk of solder bridging during assembly.
Surface-finish quality also matters for via-in-pad and fine-pitch BGA applications. Poorly filled or insufficiently planarized vias can influence the local surface condition and affect solder paste deposition or solder joint formation. Depending on the application, inspection may therefore include solder mask registration, surface finish appearance, pad condition, and solderability evaluation.
Open Circuits, Shorts, and Electrical Reliability Problems
Some PCB defects are detected primarily through electrical testing rather than visual inspection. Opens can result from broken traces, incomplete plating, microvia connection problems, or registration errors. Shorts can originate from copper residues, over-etching, insufficient clearance, or unintended connections between adjacent features.
When electrical testing identifies a failure, the objective of PCB failure analysis is to connect the electrical symptom to a physical defect and then identify the manufacturing process that created it. Combining electrical results with CAM data, cross-sections, X-ray images, and process records can make root-cause analysis more effective.
CAF and Moisture-Related Reliability Issues
High-density routing reduces the spacing between conductive features, which can increase sensitivity to insulation reliability under certain environmental conditions. Conductive anodic filament (CAF) growth can develop when suitable material, moisture, electrical bias, and geometry conditions exist, potentially creating unintended conductive paths through the laminate.
CAF risk should be evaluated according to the material system, feature spacing, operating environment, and reliability requirements of the application. Moisture management, appropriate laminate selection, adequate spacing, and qualification testing can all contribute to long-term insulation reliability.
HDI Defect Inspection: Finding Defects That Visual Inspection Misses
Many HDI defects are internal or occur at feature sizes too small for conventional visual inspection. This makes HDI defect inspection an important part of process control, particularly for microvias, buried structures, fine-line circuitry, and multilayer registration.
Different inspection methods address different defect types. AOI can identify surface-level opens, shorts, trace anomalies, and solder mask issues. X-ray inspection can provide visibility into concealed structures such as microvias, buried connections, and BGA solder joints. Cross-section analysis can reveal internal plating thickness, via filling, layer alignment, resin voids, and delamination.
Electrical testing provides another layer of verification by identifying opens and shorts that may not be obvious through imaging. The appropriate combination depends on the board structure, production stage, customer requirements, and risk level. HDI inspection references commonly combine AOI, X-ray, electrical testing, and cross-section analysis rather than relying on a single inspection method.
PCB Quality Control for Preventing HDI Manufacturing Defects
Effective PCB quality control begins before fabrication. During DFM and CAM review, engineers should evaluate microvia diameter, aspect ratio, capture-pad geometry, trace width and spacing, stackup symmetry, copper distribution, layer registration, and material compatibility.
During production, process controls should focus on the steps most likely to generate defects: laser drilling, desmear, electroless copper, electroplating, sequential lamination, imaging, etching, and surface finishing. Monitoring process parameters allows the factory to identify drift before it produces a large number of defective panels.
Inspection data should also be connected to process information. If repeated defects appear in the same feature type or manufacturing stage, engineers can use cross-section results, electrical failures, X-ray images, and CAM data to identify the root cause. This closed-loop approach is more effective than treating each defective board as an isolated event.
How to Prevent Common HDI PCB Defects Before Production
The most effective way to reduce HDI manufacturing problems is to address process capability during design rather than after fabrication begins. Engineers should review the proposed stackup, via structure, trace geometry, material system, copper distribution, and registration requirements with the manufacturer before releasing the final production data.
For microvia structures, conservative aspect ratios, appropriate capture-pad dimensions, controlled stacking, reliable copper filling, and compatible materials can reduce manufacturing risk. For the broader PCB structure, balanced copper distribution, realistic fine-line tolerances, adequate solder mask clearance, and suitable surface finishes help maintain production stability.
At the factory level, early DFM review should be followed by controlled CAM preparation, process qualification, inspection, and feedback from production. The goal is not simply to eliminate one specific defect, but to establish a manufacturing window that can consistently support the complete HDI design.
FAQ
Q1: What are the most common HDI defects?
A1: Common HDI defects include microvia voids, incomplete via filling, cracks, registration errors, fine-line opens and shorts, delamination, resin voids, warpage, and solder mask or surface-finish problems. The actual defect mix depends on the board structure and manufacturing process. High-density designs require coordinated control of drilling, plating, lamination, imaging, etching, and inspection to maintain stable production quality.
Q2: What causes HDI microvia failure?
A2: HDI microvia failure can result from laser drilling problems, inadequate desmear, plating voids, incomplete filling, registration errors, material CTE mismatch, or excessive mechanical and thermal stress. Stacked microvias can add further reliability challenges because multiple interconnections must remain accurately aligned and mechanically stable. Root-cause analysis should consider both the physical defect and the manufacturing process that created it.
Q3: How are HDI defects detected during production?
A3: HDI defect inspection typically combines different methods according to the structure being evaluated. AOI can identify surface defects and fine-line problems, while X-ray can inspect concealed structures. Cross-section analysis provides detailed information about microvia filling, plating, and layer alignment, and electrical testing can identify opens and shorts. Using multiple inspection methods gives engineers better coverage of internal and external defects.
Q4: What is PCB failure analysis for HDI boards?
A4: PCB failure analysis identifies the physical and process causes behind an electrical, mechanical, or reliability failure. For HDI boards, engineers may combine electrical testing, X-ray inspection, cross-section analysis, microscopy, and process records. The objective is to determine whether the failure originated from drilling, plating, registration, lamination, materials, or assembly, and then establish corrective actions that prevent recurrence.
Q5: How does PCB quality control reduce HDI defects?
A5: PCB quality control reduces HDI defects by controlling critical processes before defects become production-wide problems. DFM and CAM review can identify high-risk geometries, while process monitoring controls drilling, plating, lamination, imaging, and etching conditions. AOI, X-ray, electrical testing, and cross-section analysis then provide verification at different stages. The combined approach helps manufacturers identify recurring problems and improve process stability.
Q6: Can HDI defects be prevented during the design stage?
A6: Many HDI defects can be reduced through early DFM planning, although manufacturing risk cannot always be eliminated through design alone. Engineers should review via geometry, aspect ratio, capture pads, trace spacing, stackup symmetry, material compatibility, copper distribution, and registration requirements with the fabricator. Aligning these design choices with the manufacturer's actual process capability helps create a more reliable production window.
