HDI Laser Drilling Mistakes That Affect Manufacturing Yield

Author : AIVON | PCB Manufacturing & Supply Chain Specialists

July 16, 2026


HDI laser drilling problems are among the fastest ways to destroy production yield. What seems like a straightforward via on the layout can create plating voids, registration failures, or incomplete connections when it hits the factory floor.

These are the common HDI laser drilling mistakes seen in real DFM reviews.

Incorrect Laser Via Aperture Design

Many designers set via diameters based on routing needs without considering the laser's actual performance. Too small an aperture leads to tapered holes and poor plating. Too large wastes valuable real estate and risks damaging surrounding features.

Typical effective laser via sizes in production are 50-100μm depending on material and process.

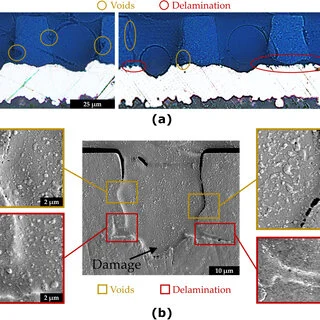

Cross-section of laser drilled microvias

Ignoring Actual Hole Depth Control

Specifying blind vias that stop exactly on a target layer sounds ideal but ignores process variation. HDI laser drilling problems arise when the via bottoms out too shallow or punches through the target pad.

Depth control relies on material thickness consistency and laser energy settings. Overly aggressive designs leave little margin.

Aspect Ratio Limitations

Laser vias generally perform best below 0.8:1 aspect ratio. Pushing deeper creates cleaning and plating difficulties that reduce yield.

Poor Blind Via Placement and Landing Pad Design

Placing laser vias too close to traces or other features risks thermal damage during drilling. Inadequate landing pad sizes for blind vias create weak connections or missed registration.

A common rule of thumb is landing pads at least 1.5x the via diameter plus alignment tolerance.

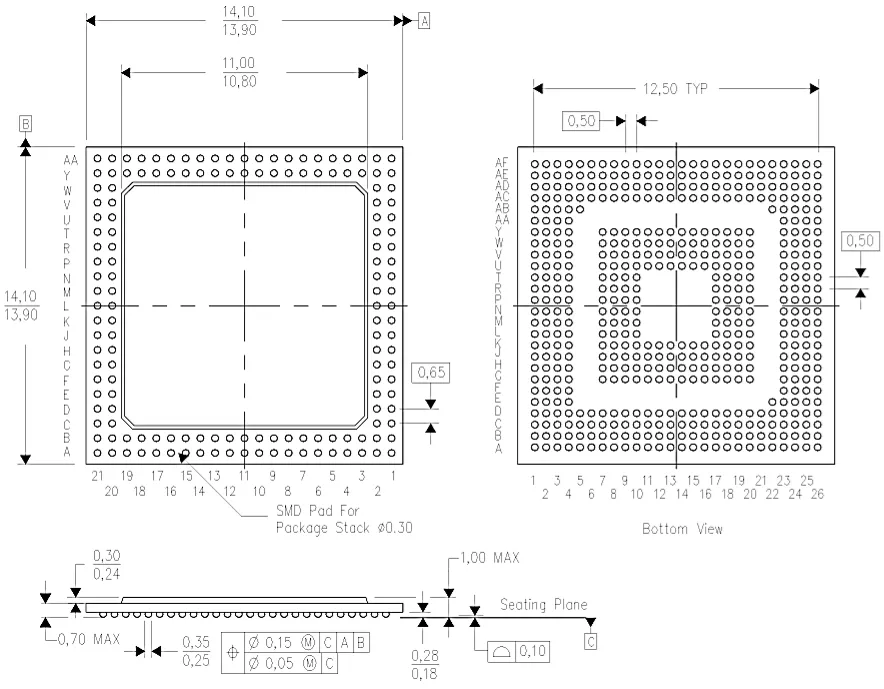

Laser-drilled microvia-in-pad

Exceeding Factory Laser Drilling Capabilities

Not every facility has the same laser systems. Some handle UV lasers better for certain materials, while others excel at CO2. Designing without knowing the target manufacturer's capabilities leads to HDI laser drilling problems during technology transfer.

High layer count or dense via fields can overwhelm certain machines, causing throughput drops or quality issues.

Stackup Compatibility with Laser Process

Dielectric materials vary in how cleanly they ablate. Some leave significant residue that affects plating adhesion. Choosing materials without considering laser compatibility is a frequent source of yield loss.

Registration and Overlay Accuracy

Multiple lamination cycles make precise alignment for laser drilling challenging. Via placement near the panel edges or in dense areas amplifies registration errors.

Design Practices That Improve Laser Drilling Yield

Use standard via sizes preferred by your fabricator. Provide sufficient clearance around vias. Balance via density across layers. Include clear depth callouts and tolerances in the stackup documentation. Run test coupons on new designs.

Early discussion of your via strategy with the manufacturer helps avoid most HDI laser drilling problems before they reach production.

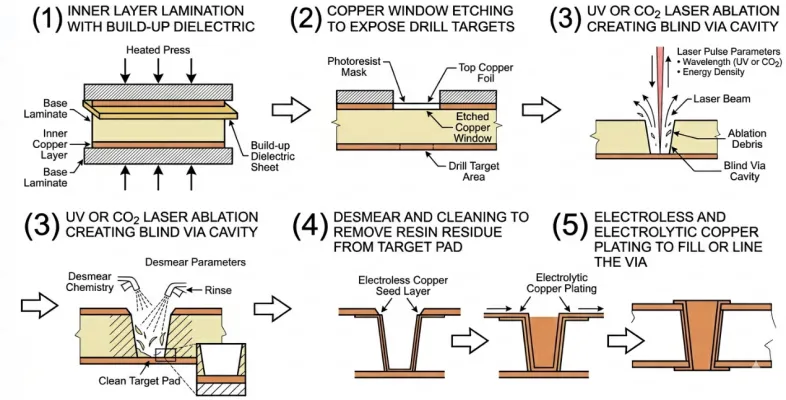

HDI laser drilling process

Good via design is invisible in the final board. Bad design shows up as low yield, rework, and reliability concerns.
