In production, we keep FPC panels stable during shipment by using between 4 and 12 connection tabs per piece depending on the panel layout and flex size. CAM engineers set the minimum at 4 tabs for small single-piece panels and scale up for larger arrays or longer flex circuits to prevent shifting in transit. The key is balancing enough tabs for rigidity while keeping depanelization easy at the assembly side.
What we typically see on the CAM side is that insufficient connection points lead to flex movement inside the shipping frame, especially with longer FPC designs that have components already mounted or stiffeners attached. Factories handle this by reviewing the panelization file and adding or adjusting tabs before final lamination and routing.

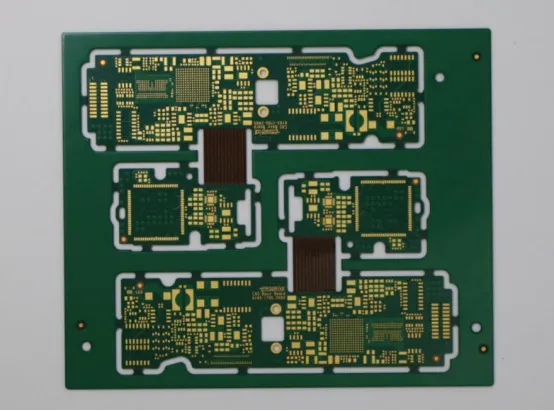

Why FPC Panel Connection Tabs Become Critical in Production Flow
Flexible material behaves differently from rigid FR-4 during panel processing and handling. The polyimide base can shift under tension during drilling, plating, and coverlay application, and this movement continues after routing. Connection tabs lock the individual circuits into the panel frame so that registration stays consistent through the entire manufacturing sequence.
In high-volume runs, panels go through multiple handling steps — from AOI to final electrical test and then packing. Without adequate tabs, the flex circuits start to flap or twist, causing trace damage or coverlay misalignment. This shows up more on larger panels or designs with uneven copper distribution where the material wants to curl.
Common Dimensions and Spacing Rules for Flex PCB Panel Tabs

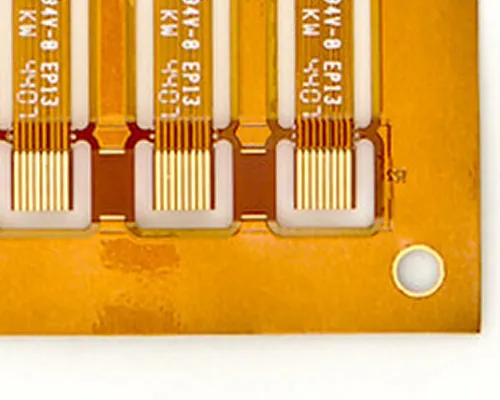

We usually design FPC panel connection tabs with a width of 0.8mm to 1.5mm and length around 1.0mm to 2.0mm. Perforation or mouse-bite patterns use 0.3mm–0.5mm bridges with 0.5mm–0.8mm slots. Spacing between tabs along one edge typically stays at 25mm to 50mm centers, adjusted based on the longest dimension of the flex circuit.
For standard consumer electronics FPCs under 100mm length, 4–6 tabs per piece work reliably. Longer automotive or medical flex circuits often need 8–12 tabs. The primary long-tail keyword here relates directly to FPC panel connection tabs, flex PCB panel tabs, FPC breakaway tabs, and FPC panel tab design — these parameters directly affect yield in our lines.
Placement Guidelines During Panelization
Tabs go on both long and short sides whenever possible. Corner tabs provide the best stability against rotation, while side tabs resist bending. We avoid placing tabs near high-density component areas or impedance-critical traces to prevent stress during breakaway.
Impact of Different Panel Sizes and Product Structures on Tab Requirements
Small 1-up or 2-up panels for wearable devices can manage with 4 tabs if the flex is short and reinforced. Larger 4-up or 6-up panels for industrial controls need more — often 6 to 8 per circuit — because the overall panel weight and handling increase the chance of flex shifting during shipment.
Structures with heavy stiffeners or multiple connectors pull harder on the material, so we increase tab count and width. Panels with many layers or thick coverlay also require stronger tab designs to counteract the added stiffness mismatch. In contrast, very thin single-layer FPCs tolerate slightly fewer tabs but still need even distribution to avoid wrinkling.
What Happens When Connection Points Are Insufficient
Insufficient tabs cause the flex circuits to move inside the panel during transit or even during final routing. This leads to trace microcracks, coverlay peeling at the edges, and misalignment when the customer breaks them out. In worst cases we see rejected shipments due to visible damage or failed continuity after assembly.
On the factory floor this shows up as higher scrap rates in final inspection and customer complaints about broken tabs or deformed circuits. One common issue is tabs tearing unevenly, leaving residue that interferes with SMT placement. For tight-tolerance designs, even minor shifts can push impedance out of spec after handling.

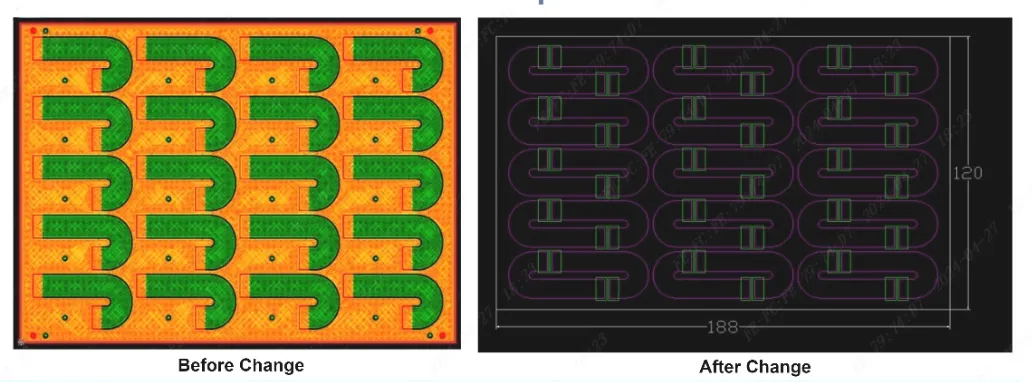

How Factories Optimize FPC Breakaway Tabs During DFM Review
During DFM we open the panelization file and check the existing tab layout against our standard rules. If tabs are too few or poorly placed, we add them in non-critical areas and adjust the routing program to maintain the correct bridge width. We also verify that tab locations do not overlap with V-cut lines or fiducials.
For complex arrays we run a quick simulation of panel handling stress and may recommend increasing tab width by 0.2mm or adding two extra tabs on longer sides. Panel frame thickness and material type factor in — we use slightly wider tabs for panels going into vacuum-sealed bags for longer shipping distances.
Exceptions and When We Can Relax Tab Requirements
Short, rigidized FPCs with full stiffener coverage sometimes ship reliably with only 4 tabs if the panel is small and packed in foam trays. Prototypes or very low-volume runs can use minimal tabs when the customer handles depanelization manually with extra care. In these cases we clearly mark the panel for special handling and may add extra protective film.
High-speed automated assembly lines that break out panels in controlled fixtures can also tolerate slightly fewer tabs, but we still recommend at least 4–6 for basic stability. The trade-off is always between panel integrity during our process and ease of customer breakout — too many tabs increase depanelization force and risk of damage at the assembly house.
Practical Recommendations for Designers Submitting FPC Panel Designs
Send us your panelized Gerber files early so we can run full DFM and propose tab adjustments before tooling. Include the intended shipping method and assembly process details — this helps us fine-tune FPC panel tab design for your specific case. Most issues with flex PCB panel tabs get caught and fixed during this review, keeping both production yield and final product quality high.
In our experience, spending a few minutes optimizing connection points saves significant time and cost downstream. Stable FPC panels arrive ready for assembly without unexpected rework or delays.
For specific layouts, feel free to share your stackup and panel dimensions — we can provide exact tab recommendations based on current production parameters.
