In production we control the total thickness of the FPC insertion finger area (including base flex plus PI stiffener) to 0.25mm–0.35mm for most standard connectors. For tighter pitch or high-cycle applications we tighten it to 0.28mm ±0.03mm. CAM engineers verify this stackup during DFM because even small deviations affect insertion force and long-term reliability of the gold finger contact area.
We measure the finished finger thickness at multiple points after lamination and before final shipment. This FPC finger thickness control directly impacts how reliably the flex mates with the connector in assembly.
Common Requirements for FPC Plus PI Stiffener Total Thickness

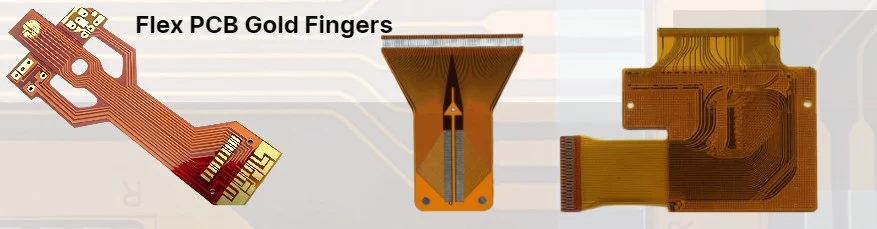

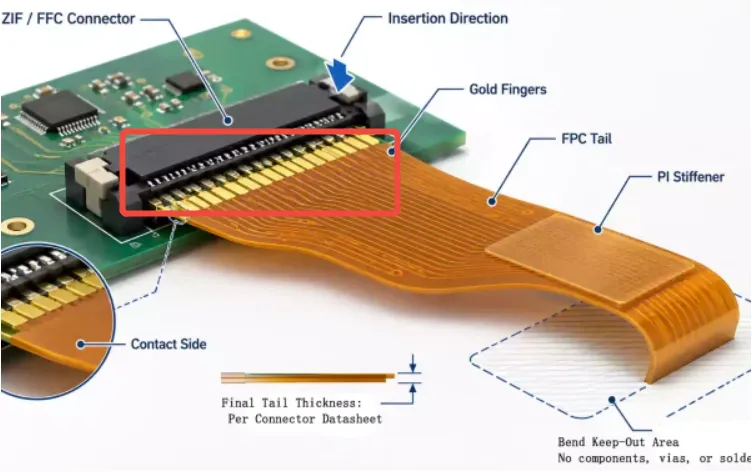

Most consumer electronics designs target 0.30mm total thickness in the finger zone. We achieve this with 1-layer or 2-layer flex base (typically 0.1mm–0.15mm) plus 0.125mm or 0.15mm PI stiffener. Thicker stiffeners up to 0.2mm are used when higher rigidity is needed for repeated insertions.
The flex PCB stiffener stackup must be symmetric where possible to minimize warping. We apply the PI reinforcement only to the finger area and taper it slightly at the transition zone to avoid stress concentration. Gold plating thickness on the fingers is kept at 0.03μm–0.05μm hard gold on top of nickel to maintain the final controlled dimension.
Variations Based on Connector Type
Zero-insertion-force (ZIF) connectors often accept a broader range up to 0.38mm, while sliding or locking connectors require tighter control around 0.25mm–0.32mm. We adjust the stiffener thickness accordingly during panel layout review.
Why Thickness Tolerance Matters in Actual Manufacturing and Assembly
The tolerance range of ±0.05mm or tighter directly affects insertion force. Too thick and the finger becomes hard to insert, risking connector damage or bent contacts. Too thin and the connection becomes loose, leading to intermittent contact or failure under vibration.
In production we see registration challenges during stiffener lamination that can push thickness out of spec. Our process uses precision lamination parameters and post-lamination grinding or polishing when necessary to hit the target. This control is especially critical for automotive and medical FPCs where reliability margins are smaller.
Relationship Between Finger Thickness Control and Insertion Life Cycles

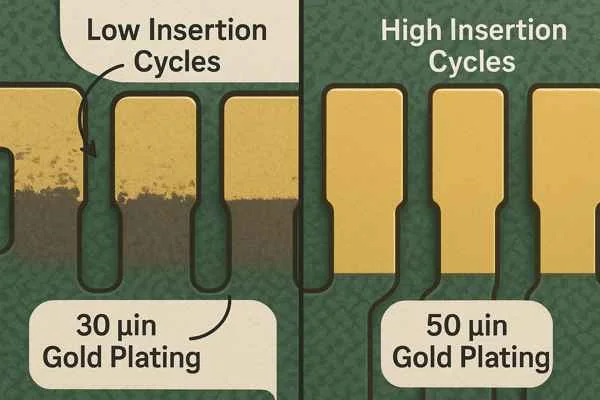

Proper FPC finger thickness control significantly extends mating cycles. Designs maintained within 0.28mm–0.32mm routinely achieve 5,000–10,000 insertion cycles in testing, while out-of-tolerance parts drop below 2,000 cycles due to increased wear on both the finger and connector housing.
The stiffener provides the necessary beam strength, but excessive thickness increases contact pressure and accelerates gold plating wear. Too thin reduces normal force, causing fretting corrosion over time. We validate stackup on sample panels before full production to confirm the flex PCB stiffener stackup meets the customer’s cycle life requirement.
How Factories Manage and Compensate for Thickness Variations
During DFM we calculate the expected total thickness from the submitted stackup and compare it against the connector datasheet. If the design is marginal, we recommend adjusting PI thickness or base flex copper weight. We also add compensation for adhesive flow during lamination to keep final thickness stable.
In-line measurement after stiffener bonding allows us to catch and correct deviations early. For critical jobs we perform 100% thickness checking on the finger areas before shipping. This proactive control prevents assembly line issues and reduces field failure rates.
When Thickness Requirements Can Be Adjusted
Low-cycle applications or prototypes sometimes accept wider tolerances up to ±0.08mm. Very high-density connectors may require even tighter control that needs special low-flow adhesives or alternative stiffener materials. We evaluate each case based on the specific connector model and expected usage environment.
Exceptions are possible when the customer performs 100% incoming inspection and uses adjustable connectors, but we always flag potential risks during DFM review.
Practical Advice for Designers Specifying Finger Area Stackup
Clearly specify the target total thickness and tolerance on your drawings, including the connector part number. Share the expected insertion cycle requirement so we can optimize the flex PCB stiffener stackup accordingly. Early discussion of FPC finger thickness control avoids costly tooling changes later in the project.
In factory reality, consistent thickness in the insertion area is one of the most important factors for reliable FPC performance over the product lifetime.
