In production we add waste edge protection on FPC panels whenever the design has exposed traces near the outline, requires automated handling, or will ship as full panels. The process edge (also called waste edge or frame) provides clamping area for equipment, SMT tooling support, and clean routing margins. We recommend adding at least 5–8mm on all sides for most production jobs, increasing to 10–12mm for high-precision or long flex circuits.
From the CAM side, we check every flex panel file for sufficient process edge. Missing or narrow waste edges force us to adjust panelization, sometimes requiring customer approval for added material or modified tooling.
How Process Edges Support Clamping, SMT, and Routing in Factory Production
Flexible circuits lack the rigidity of rigid boards, so equipment needs dedicated areas to grip the panel without touching functional circuits. Waste edges give vacuum chucks, conveyor rails, and robotic arms safe contact zones during plating, coverlay lamination, and AOI. Without them, operators risk damaging traces or causing registration errors.
For SMT lines that mount components while circuits remain in panel form, the process edge provides tooling holes and flat reference surfaces for accurate placement. During final routing or V-scoring, the extra margin keeps the cutter away from functional copper and prevents edge chipping on the flex material.
Why Narrow or Missing Waste Edges Cause Problems in Real Production
When waste edge is insufficient, panels slip during high-speed processes, leading to misdrilled holes, coverlay misalignment, or scratched surfaces. In extreme cases we see circuits pulled into the routing bit, creating scrap or rework that delays shipment. This issue appears more often on thin single-layer FPCs or designs with tight outline tolerances.

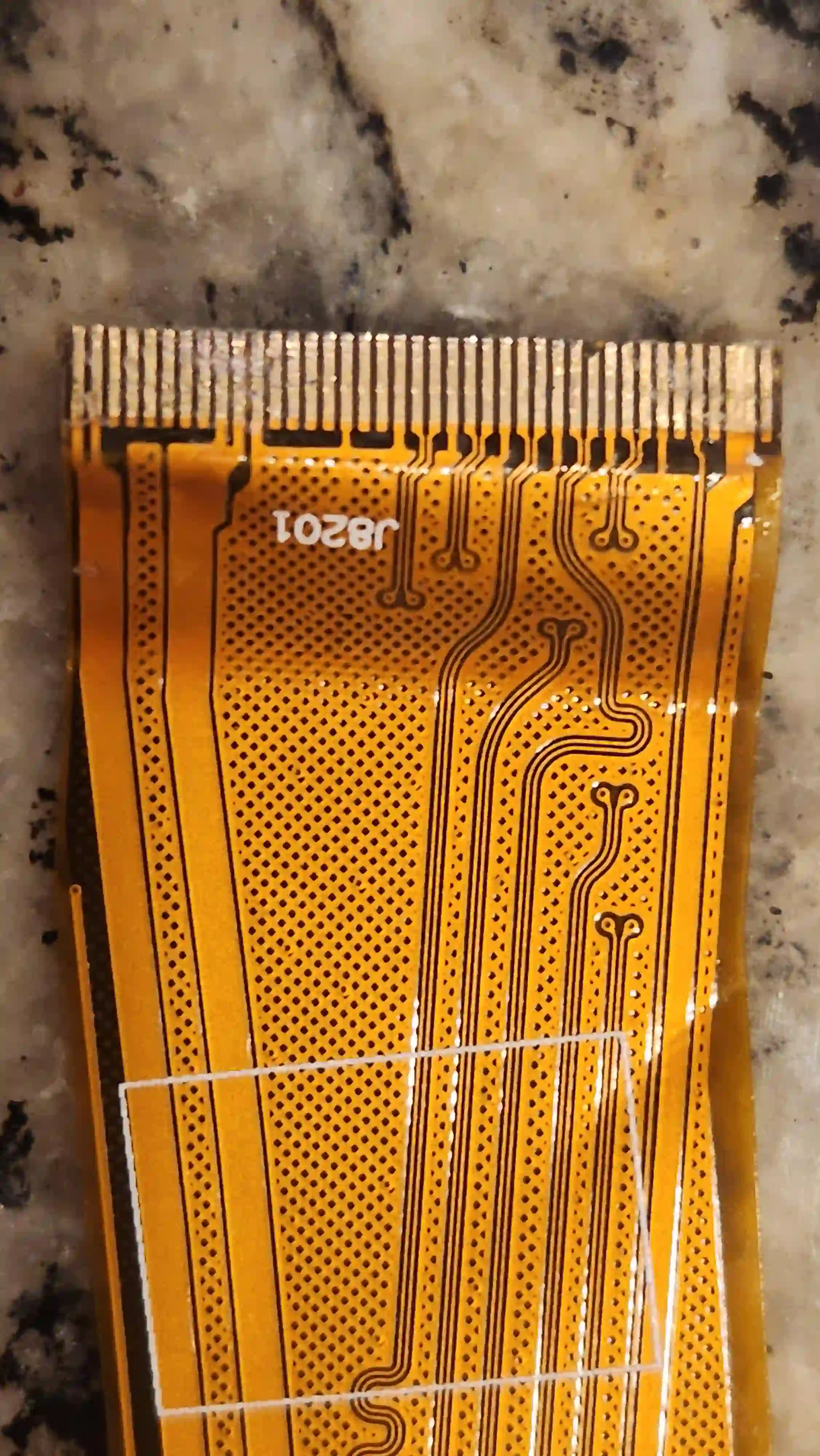

During shipment without proper FPC waste edge design, the outer circuits become vulnerable to impact damage. Flex material can deform at the edges, causing trace fractures that only show up after assembly. We have seen yield drops of 10–20% on panels submitted without adequate process margins.
Common Size Recommendations for Flex PCB Process Edge Usage
Standard recommendation is 8mm waste edge on all four sides for most consumer and industrial FPC panels. We reduce to 5–6mm for very small or cost-sensitive designs after confirming handling feasibility. For longer flex circuits exceeding 150mm or panels with heavy stiffeners, we prefer 10–12mm to maintain stability.

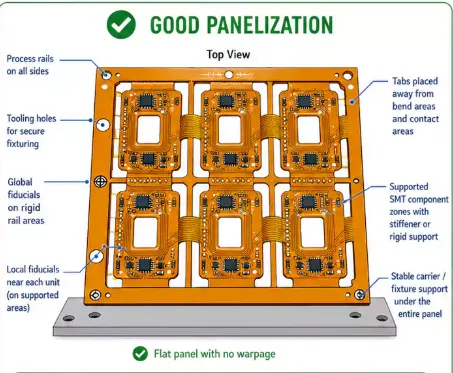

Tooling holes and fiducials go inside the waste edge, typically 3–5mm from the outer panel border. This keeps them clear of the functional circuit while providing accurate registration points throughout the process. We also leave extra margin near V-cut or mouse-bite areas to prevent premature separation.
Adjustments for Different Layer Counts and Materials
Multi-layer or HDI flex panels need slightly wider process edges because of higher lamination pressure and material movement. Rogers or special material stacks also benefit from more margin to compensate for different thermal expansion during processing.

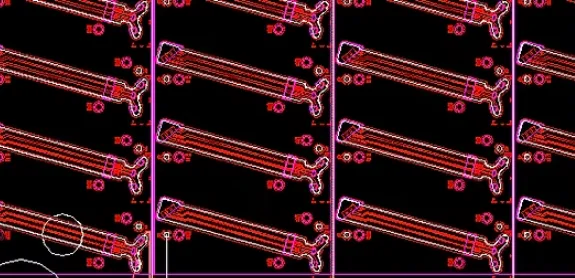

Recommended Figure: CAD view of FPC panel showing waste edge dimensions, tooling hole placement, and minimum clearance to circuit features.
How Shipping Method Influences Waste Edge Protection Decisions
Panels shipped as full arrays for in-house depanelization at the customer’s SMT line need the strongest waste edge protection — full 8–12mm margins plus reinforced corners. Individual piece shipment after factory depanelization allows narrower edges, but we still keep at least 3–5mm protective frame until final routing.
For vacuum-sealed or long-distance international shipping, we add extra waste edge and sometimes temporary protective film on the outer perimeter. Domestic short-haul shipments in rigid trays can manage with standard margins. The key difference is exposure risk: full panels travel with more handling steps, so they require more robust FPC waste edge design.
Factory DFM Optimization for Process Edge Layout
During DFM review we measure existing waste margins against our equipment specifications. If margins are marginal, we expand the panel size and reposition circuits to create proper process edges. This may increase material usage slightly but prevents production stops and quality issues downstream.
We also verify that waste edge does not interfere with customer requirements for final outline. Sometimes we add breakaway sections inside the process edge so the customer can remove excess material cleanly after SMT.
When Waste Edge Can Be Minimized or Omitted
Very small prototype runs or designs where the customer depanelizes manually right after receiving individual pieces can sometimes use reduced waste edges. Extremely tight space-constrained applications may negotiate 4mm margins if all processes are carefully controlled and the panel receives extra protective packaging.
We rarely allow complete removal of process edges on production volumes because the risk to handling and yield is too high. Exceptions require written confirmation and usually involve additional inspection steps at our end.
Key Points Designers Should Consider Before Finalizing Panel Layout
Include your intended assembly and shipping method when submitting FPC files. This lets us optimize flex PCB process edge usage for your specific workflow. Adequate waste edge protection adds minimal cost but delivers major improvements in handling reliability and final product quality.
For current production parameters and equipment capabilities, we recommend discussing your panel design early. Proper FPC waste edge design prevents most common edge-related defects we see in incoming flex panels.
