Introduction
Polyimide PCBs stand out in the world of printed circuit boards due to their exceptional combination of properties that enable reliable performance in demanding environments. Engineers often select polyimide as a flexible PCB material when standard substrates like FR-4 fall short under extreme conditions. These boards leverage the inherent characteristics of polyimide resin, which provides superior thermal endurance, mechanical resilience, and chemical stability. Understanding polyimide PCB properties helps designers make informed choices for applications in aerospace, automotive, and medical devices. This article explores the key attributes that differentiate polyimide PCBs from conventional options. Factory insights reveal how these properties align with rigorous qualification processes to ensure long-term reliability.
What Is a Polyimide Flexible Circuit?
A polyimide flexible circuit is a flexible printed circuit that uses polyimide film as its primary dielectric substrate. Polyimide is commonly selected for flexible circuit boards because it combines flexibility, thermal stability, dimensional stability, and chemical resistance in a thin material structure.
Unlike rigid PCBs, a polyimide flexible PCB can bend, fold, and conform to compact or irregular spaces. Depending on the design, the circuit may be single-sided, double-sided, multilayer, or integrated into a rigid-flex construction.
Polyimide film provides the mechanical foundation for the flexible circuit, while copper foil forms the conductive paths and coverlay protects the finished traces. This material combination allows polyimide flex PCBs to maintain electrical connectivity while accommodating bending, vibration, and thermal cycling.
For engineers selecting a flexible circuit material, the main advantage of polyimide is the balance between mechanical flexibility and environmental stability. This makes it suitable for applications where conventional rigid materials or less heat-resistant flexible films may not provide the required reliability.
Thermal Properties of Polyimide Flexible Circuit Materials
Polyimide exhibits outstanding thermal stability, allowing it to function continuously at elevated temperatures where other materials degrade. This high-temperature PCB capability stems from the polymer's high glass transition temperature and low coefficient of thermal expansion. During FPC manufacturing, polyimide withstands lead-free soldering profiles and subsequent reflow processes without warping or losing adhesion. Engineers appreciate this property in applications like downhole drilling tools or engine controls, where heat exceeds limits of epoxy-based laminates. Dimensional stability remains consistent across wide temperature swings, preventing trace cracks or via failures.
Factory-driven testing confirms polyimide's resistance to thermal shock, as outlined in IPC-TM-650 methods adapted for flexible boards. The material's low moisture absorption further bolsters its thermal performance by reducing risks like popcorning during assembly. Compared to polyester films, polyimide maintains integrity after thousands of thermal cycles. This reliability translates to fewer field returns and extended service life. Designers must account for polyimide's anisotropic expansion to optimize stackups.
Why Polyimide Film Performs Well at Elevated Temperatures
Polyimide film maintains useful mechanical and electrical properties across a broad temperature range, making it suitable for demanding flexible electronics. Its thermal stability can help reduce deformation and dimensional changes during manufacturing and service.
For a flex circuit, this stability is important because excessive substrate movement can affect registration, conductor alignment, component attachment, and overall reliability. Polyimide therefore provides a practical balance between flexibility and thermal performance.

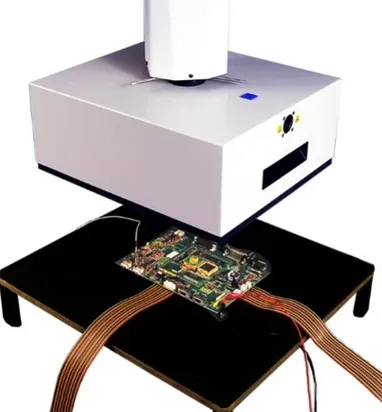

Thermal Stability in Polyimide Flexible Circuit Boards
A polyimide flexible circuit may encounter several thermal conditions during its lifecycle, including fabrication, component assembly, operating temperature changes, and repeated thermal cycling.
The actual temperature capability of a finished circuit depends on the complete material system rather than the polyimide film alone. Copper thickness, adhesive systems, coverlay, stiffeners, soldering processes, and other construction details can all influence the final thermal performance.
Flexibility and Mechanical Durability of Polyimide Flex PCBs
As a durable flexible PCB material, polyimide offers exceptional tensile strength and fatigue resistance, enduring repeated bending without fracturing. Its flexibility enables tight bend radii, often down to ten times the copper thickness, supporting compact interconnects in wearable electronics. The polymer's high modulus ensures it rebounds from deformation, preserving signal paths over millions of flex cycles. This property proves critical in automotive sensors exposed to constant vibration. Factory insights highlight the importance of coverlay application to protect traces during dynamic use.
Polyimide's low CTE mismatch with copper reduces stress at conductor interfaces, enhancing overall mechanical reliability. Standards like IPC-6013 specify flex endurance tests that polyimide consistently passes in Class 3 assemblies. Unlike adhesive-based flex circuits, adhesiveless polyimide constructions exhibit superior peel strength. Engineers benefit from this durability in multilayer rigid-flex hybrids, where bend areas demand precision. Proper handling during fabrication prevents creases that could initiate failures.

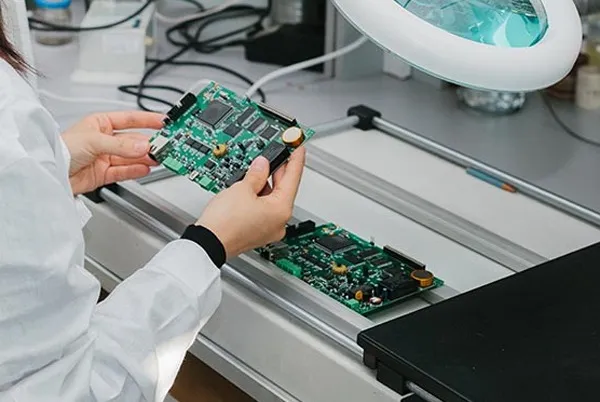

Chemical Resistance of Polyimide Flexible Circuit Materials
Chemical resistant PCB designs rely on polyimide's inert nature, which repels solvents, oils, and acids encountered in industrial settings. This property arises from the polymer's tightly packed aromatic structure, forming a barrier against permeation. In applications like chemical processing equipment, polyimide shields circuits from corrosive fluxes or cleaning agents used in assembly. Factory processes incorporate polyimide's compatibility with harsh etchants, streamlining production without substrate damage. Its resistance to hydrolysis ensures performance in humid or underwater environments.
Polyimide maintains electrical isolation even after prolonged exposure to aggressive media, outperforming materials prone to swelling. This robustness aligns with reliability requirements in medical implants or oil exploration tools. Engineers select polyimide for its balance of chemical stability and lightweight construction. Testing protocols verify no degradation in dielectric strength post-exposure. Overall, these traits position polyimide as a versatile choice for unforgiving conditions.
Electrical Properties of Polyimide Flexible Circuits
The dielectric characteristics of the substrate affect the electrical performance of a flexible circuit. Polyimide provides electrical insulation between conductive layers and contributes to the overall impedance and signal behavior of the circuit.
For conventional low-speed interconnects, the electrical requirements may be relatively straightforward. High-speed and RF applications require more detailed consideration of dielectric properties, conductor geometry, layer spacing, and stackup.
Dielectric Performance and Signal Integrity
In a polyimide flexible circuit, the dielectric layer separates conductive elements and helps maintain controlled electrical behavior. Its thickness and dielectric properties can affect impedance, capacitance, and signal propagation.
For high-speed designs, engineers should evaluate the complete stackup rather than treating the polyimide substrate as an isolated material. Trace width, copper thickness, dielectric thickness, reference planes, and routing geometry all contribute to signal integrity.
Moisture Stability and Electrical Reliability
Moisture can influence the electrical behavior and long-term reliability of electronic materials. Polyimide's relatively stable dielectric performance helps make it suitable for applications where environmental exposure needs to be considered.
However, moisture resistance should be evaluated at the complete circuit level. Coverlay, adhesives, surface finishes, connectors, and other materials can also influence environmental reliability.
Why Polyimide Is Widely Used in Flexible Circuit Materials
Polyimide has become one of the most established substrate materials for flexible electronics because it provides a combination of properties that are difficult to achieve with a single alternative material.
A flexible PI substrate can support thin circuit construction while providing useful thermal, mechanical, and electrical stability. This makes polyimide particularly suitable when a flexible interconnect must operate in a compact or demanding environment.

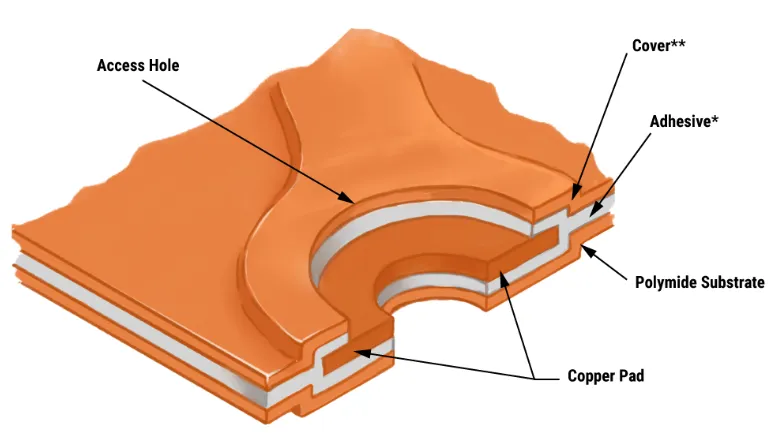

Polyimide Film Structure and Material Properties
Polyimide film is designed to provide electrical insulation while serving as a flexible mechanical substrate. In a flexible circuit, it works together with copper conductors and protective layers to form the finished interconnect.
The performance of the final circuit depends on the interaction between these materials. Substrate thickness, copper thickness, adhesive selection, coverlay, stiffeners, and layer count should therefore be considered as part of the complete stackup.
Polyimide Film vs. Other Flexible Circuit Materials
Polyimide is not the only film material used in flexible electronics. Other materials may be selected when specific requirements such as cost, transparency, temperature exposure, or application-specific performance take priority.
The choice should be based on the circuit's operating environment, mechanical requirements, electrical characteristics, assembly process, and expected service life.
For this reason, flex PI, polyimide-based flexible circuits, and other flexible substrate options should be evaluated according to the requirements of the finished product rather than material names alone.
Polyimide Films in Flexible Circuit Material Use Cases
The use cases for polyimide films in flexible circuit materials extend across applications where a thin, lightweight, and reliable interconnect must withstand mechanical movement or demanding environmental conditions. Polyimide film can serve as the dielectric foundation of a flexible circuit while supporting the electrical insulation, thermal stability, and dimensional control required by the finished PCB.
In aerospace and automotive electronics, polyimide-based flexible circuits can route signals through compact assemblies exposed to vibration and temperature variation. In medical and wearable devices, the thin construction of polyimide flexible circuits allows interconnects to follow irregular shapes and fit into space-constrained products. Polyimide films are also used in industrial sensors, instrumentation, communication equipment, and other high-reliability electronics where conventional rigid materials may impose mechanical or packaging limitations.
The appropriate flexible circuit material should always be selected according to the actual use case. Factors such as operating temperature, bending frequency, bend radius, electrical requirements, chemical exposure, assembly process, and expected service life can influence whether a particular polyimide film construction is suitable. For this reason, engineers should evaluate polyimide film together with copper, coverlay, adhesives, stiffeners, and the complete circuit stackup rather than considering the film in isolation.
Technical Principles Behind Polyimide's Uniqueness
The molecular architecture of polyimide, featuring rigid imide rings and aromatic backbones, imparts its superior properties. During synthesis, polyamic acid precursors undergo cyclization at elevated temperatures, yielding a crosslinked network resistant to flow. This structure confers high thermal decomposition onset and mechanical toughness. Low free volume limits solvent ingress, explaining chemical resistance. Coefficient of thermal expansion closely matches metals, reducing interfacial stresses.
Anisotropy in polyimide films requires oriented processing to optimize bend properties. Factory imidization controls crystallinity for uniform performance. Compared to thermoplastic films, thermoset polyimide avoids softening under load. These principles guide material selection per IPC-4101 slash sheets for polyimide laminates. Understanding this foundation aids engineers in specifying appropriate variants.
Polyimide Flexible Circuit Design and Manufacturing Considerations
Material selection is only one part of developing a reliable flexible circuit. The polyimide substrate needs to be considered together with copper thickness, layer count, coverlay, stiffeners, bend radius, component placement, and manufacturing requirements.
A flex circuit design that uses an appropriate polyimide material can still experience reliability problems if mechanical stresses are concentrated in unsuitable areas or if the stackup is not compatible with the intended flex conditions.
Material and Stackup Selection
When developing a polyimide flexible circuit, engineers should define the required flex behavior, operating environment, copper thickness, polyimide thickness, coverlay construction, and stiffener requirements.
The stackup should reflect how the circuit will be installed and operated. Static-flex designs, dynamic-flex designs, and rigid-flex structures may require different material combinations and mechanical considerations.
Material selection should also account for the fabrication and assembly processes that the circuit will undergo.
Bend Radius and Mechanical Design
FPC bend radius is one of the most important design considerations for flexible circuits. Excessive bending can place mechanical stress on copper traces and other layers, potentially reducing long-term reliability.
The appropriate bend radius depends on factors such as layer count, copper thickness, construction type, and whether the application involves static or dynamic flexing.
Designers should avoid placing unnecessary vias, components, or abrupt geometry changes directly within areas that experience repeated bending.
Coverlay and Protection
Coverlay protects exposed copper traces and provides electrical insulation across flexible portions of the circuit. Its thickness and construction can also affect the overall mechanical behavior of the finished FPC.
For designs that require controlled flexibility, the coverlay should be considered as part of the complete stackup rather than as a separate finishing step.
Connector areas may also require stiffeners to provide additional mechanical support during insertion, removal, and assembly.
Polyimide Flexible Circuit Applications
The combination of flexibility, thermal stability, electrical insulation, and mechanical durability makes polyimide suitable for a variety of electronic applications.
The exact construction of a polyimide flexible circuit should be selected according to the mechanical movement, environmental exposure, electrical requirements, and assembly conditions of the target product.
Aerospace and Automotive Electronics
Aerospace and automotive systems often require compact interconnects that can tolerate vibration, temperature variation, and limited installation space.
Polyimide-based flexible circuits for aerospace can help route signals and power through constrained assemblies while reducing the need for multiple rigid interconnects.
The material construction should be selected according to the specific temperature, mechanical, electrical, and reliability requirements of the application.
Medical and Wearable Electronics
Medical and wearable devices often require thin and compact interconnects that can follow irregular mechanical structures.
A polyimide flexible PCB for wearable electronics can provide the flexibility needed to connect components within space-constrained devices while maintaining electrical insulation and structural stability.
For wearable electronics, the design also needs to account for repeated movement, connector reliability, component placement, and the mechanical behavior of the complete circuit assembly.
Other High-Reliability Applications
Polyimide flexible circuits are also used in industrial instrumentation, sensors, communication equipment, compact control systems, and other applications where flexible interconnections provide packaging or routing advantages.
The appropriate construction depends on the operating environment. Applications involving repeated movement may require a different stackup from circuits that only bend during installation.
For high-reliability applications, material selection, circuit geometry, fabrication controls, and assembly processes should be evaluated together.
Conclusion
Polyimide PCBs derive uniqueness from integrated thermal, mechanical, chemical, and electrical properties, enabling flexible PCB material applications beyond standard limits. High-temperature PCB demands find ideal solutions in polyimide's stability. Durable PCB material traits ensure longevity in dynamic environments. Chemical resistant PCB performance protects against harsh exposures. Adhering to standards like IPC-6013 optimizes outcomes. Engineers gain confidence through factory-aligned practices, driving innovation in compact, reliable designs.
FAQs
Q1: What are the primary polyimide PCB properties that suit high-temperature applications?
A1: Polyimide PCB properties include exceptional thermal stability, high glass transition temperature, and low CTE, allowing operation in environments where FR-4 fails. These traits prevent delamination and maintain electrical performance during soldering or service. Factory qualification per IPC-6013 verifies endurance under thermal cycling. Designers prioritize polyimide for continuous high-heat exposure in aerospace and automotive uses.
Q2: How does polyimide perform as a flexible PCB material in terms of durability?
A2: As a flexible PCB material, polyimide offers superior tensile strength, fatigue resistance, and dimensional stability after repeated bending. It supports millions of flex cycles without trace fractures, outperforming polyester options. Adhesiveless constructions enhance peel strength for long-term reliability. This durable PCB material suits vibration-heavy applications like sensors. Standards guide testing for consistent factory output.
Q3: Why choose polyimide for chemical resistant PCB designs?
A3: Polyimide provides excellent chemical resistance due to its inert aromatic structure, repelling solvents, acids, and oils without swelling or degradation. This property preserves dielectric integrity in industrial or medical settings. Unlike epoxy resins, it withstands aggressive cleaning processes. High-temperature PCB synergy amplifies robustness. Factory insights emphasize compatibility in etch and plating steps.
Q4: What standards govern polyimide PCB manufacturing?
A4: IPC-6013 sets qualification criteria for flexible printed boards, including polyimide substrates, covering flex endurance and thermal performance. IPC-4202 specifies dielectric properties for polyimide films. These ensure interchangeability and reliability in Class 3 assemblies. Engineers reference them for design and procurement. Factory compliance reduces risks in high-reliability production.
Q5: What is the difference between polyimide film and a polyimide flexible circuit?
A5: Polyimide film is a material used as an insulating substrate, while a polyimide flexible circuit is a finished interconnect built from that substrate together with conductive and protective layers. In other words, polyimide film is one of the core materials, whereas the flexible circuit is the complete PCB structure.
Q6: Is every flexible PCB made with polyimide?
A6: No. Flexible PCBs can be manufactured with different substrate materials depending on the application. Polyimide is widely used, but other flexible materials may also be selected when a project has specific requirements related to cost, transparency, processing, or other material characteristics.
Q7: What does PI mean in flexible PCB manufacturing?
A7: PI stands for polyimide. In flexible PCB manufacturing, terms such as flexible PI, flex PI, and PI flex generally refer to flexible circuit constructions that use polyimide film as the substrate or insulating material. The exact material construction still needs to be defined by the PCB stackup and manufacturing specification.
Q8: Can a polyimide flexible circuit be customized for a specific product?
A8: Yes. A polyimide flexible circuit can be customized in terms of circuit dimensions, layer count, copper thickness, polyimide thickness, coverlay, stiffeners, connector areas, and other structural features. The specification should be developed around the product's available space, electrical interface, assembly method, and mechanical requirements.
Q9: What information is needed to request a polyimide flexible PCB quote?
A9: A manufacturer will typically need the PCB design files, layer count, board dimensions, quantity, material requirements, copper thickness, surface finish, coverlay or solder mask requirements, stiffener requirements, and any special fabrication or assembly requirements. Providing the intended application and mechanical constraints can also help the manufacturer evaluate the design more accurately.
Q10: How is a polyimide flexible circuit specified on a PCB fabrication drawing?
A10: The drawing or fabrication specification can identify the polyimide substrate, material thickness, copper thickness, layer structure, coverlay, stiffeners, surface finish, dimensional requirements, and other fabrication details. Clear material and stackup specifications help ensure that the manufactured circuit matches the intended design.
Q11: What should be checked before ordering polyimide flexible circuit boards?
A11: Before ordering polyimide flexible circuit boards, verify that the fabrication files, layer structure, material specification, board outline, copper requirements, coverlay, stiffener locations, connector dimensions, and quantity are clearly defined. It is also useful to confirm that the manufacturer's process capabilities match the required construction before production.
Q12: Can polyimide flexible circuits be combined with rigid PCB sections?
A12: Yes. A flexible circuit can be combined with rigid PCB sections to form a rigid-flex PCB. This construction allows the rigid areas to support components while the flexible section provides the interconnection between different parts of the assembly.
References
IPC-6013 - Qualification and Performance Specification for Flexible and Rigid-Flex Printed Boards. IPC
IPC-4202 - Flexible Metal-Clad Dielectrics for Use in Fabrication of Flexible Printed Circuits. IPC
IPC-4101 - Specification for Base Materials for Rigid and Multilayer Printed Boards. IPC
