1 Layer FR4 PCB Production Record #FR4-20240111-0029
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | FR4 PCB | Quantity | 200 pcs |
| Layers | 1 Layers | Board Type | Panel PCB |
| Dimensions | 171 x 86 mm | Copper Weight | 1oz |
| Thickness | 0.6 mm | Min Track / Spacing | 6/6mil↑ |
| Surface Finish | OSP | Min Hole Size | 0.3mm↑ |
| Solder Mask | Green | Silkscreen | None |
| Stack-up | Custom | Impedance Control | No |

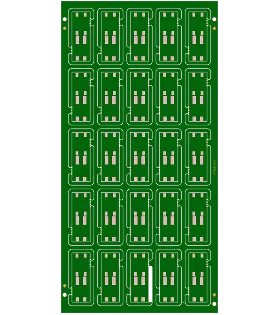

This production run of 200 single-layer FR4 panel PCBs measured 171 × 86 mm per panel with a finished thickness of 0.6 mm and 1 oz copper foil. The 6/6 mil minimum trace and spacing along with 0.3 mm hole size represented standard geometry, yet the thin substrate required controlled handling during material preparation and etching to maintain dimensional stability and prevent warping. Green solder mask was applied to one side while silkscreen was omitted per the customer's specification, and OSP surface finish provided the necessary solderability protection without metallic plating.
After engineering review of the custom stackup, the sequence advanced through circuit imaging and etching, solder mask application, organic coating, and anti-oxidation treatment. Each panel received full electrical testing to confirm net continuity and isolation across the 7-day manufacturing cycle. The OSP process was calibrated to deliver uniform coating thickness, ensuring reliable assembly performance for these thin single-layer boards.
The completed panels exhibited consistent surface quality and flatness at the targeted thickness, meeting all specified tolerances without deviation. This execution delivered dependable FR4 OSP boards ready for standard downstream processes.
