4 Layer FR4 PCB Production Record #FR4-20260312-065

Start FR4 PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type FR4 PCB Quantity 1000 pcs
Layers 4 Layers Board Type Panel PCB
Dimensions 160 x 129.5 mm Copper Weight 1oz
Thickness 1.6 mm Min Track / Spacing 5/5mil
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.25mm
Solder Mask Black Silkscreen White
Stack-up Default Impedance Control Yes

Manufacturing Timeline

Order Created
Feb 04 19:12
Files Ready
Feb 04 19:12
Engineering Review Completed
Feb 08 20:43
Payment down
Feb 08 20:43
Production Started
Feb 08 20:43
Production Completed
Mar 10 06:06
Progress: 0/6
Engineering Review time: 4.0d
Production time: 29.4d With Engineering Questions

Logistics Information

Production Completed→Shipping : 2.5d
Carrier
FedEx IP
Destination
HONG KONG,CHINA
Shipping Method
Express Air
Shipping Time
Mar 12 16:44

Key Manufacturing Processes

01
Engineering Review
02
Stackup Impedance Engineering
03
Trace Width Compensation
04
Material Preparation
05
Inner Layer Imaging
06
Circuit Imaging & Etching
07
Layer Stack Alignment
08
High Pressure Lamination
09
Solder Mask Application
10
Electroless Nickel Deposition
11
Immersion Gold Deposition
12
TDR Impedance Testing
13
Panelization Optimization
14
Batch AOI Inspection
15
Yield Control Management
16
Electrical Testing

Manufacturing Summary

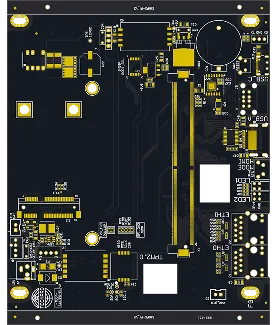

This 4-layer FR-4 board measured 160 × 129.5 mm with 1.6 mm thickness, TG130 material, and 1 oz copper on both sides. Produced as 1000 pieces in customer 1×1 panels, the order used ENIG surface finish, black solder mask, and white silkscreen. The design incorporated controlled impedance with a minimum line/space of 5 mil and 0.25 mm holes. V-cut separation was applied, and the 10-day schedule included engineering test fixtures together with 100 % flying-probe verification.



DFM coordination resolved several impedance and process constraints. Single-ended impedance traces originally specified at 5 mil were adjusted to 7 mil to meet manufacturable targets and confirmed. Black solder mask combined with component pin spacings below 0.25 mm prevented reliable solder mask bridges; full window openings were therefore applied. Missing tooling holes on the process edge required addition of 2.0 mm locating holes for stable forming. SMD pads positioned near the board outline risked exposed copper after routing and were reviewed for possible trimming. Certain component holes designed with tenting would allow ink intrusion, reducing finished diameter and impairing solderability; the treatment was clarified prior to release.



Confirmed impedance width changes, mask-window strategy, and tooling-hole additions were implemented before production. The boards achieved consistent ENIG plating and controlled-impedance performance across the full quantity. Full electrical test reports and quality certificates accompanied the shipment, confirming the panels met the specified mechanical and electrical requirements.
