6 Layer FR4 PCB Production Record #FR4-20260414-039

Start FR4 PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type FR4 PCB Quantity 10 pcs
Layers 6 Layers Board Type Panel PCB
Dimensions 107.25 x 16 mm Copper Weight 1oz
Thickness 0.8 mm Min Track / Spacing 5/5mil
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.2mm
Solder Mask Green Silkscreen White
Stack-up Default Impedance Control No

Manufacturing Timeline

Order Created
Mar 17 00:57
Files Ready
Mar 17 00:57
Engineering Review Completed
Mar 17 01:18
Payment down
Mar 19 19:34
Production Started
Mar 20 15:32
Production Completed
Apr 02 14:21
Progress: 0/6
Engineering Review time: 0.3 h
Production time: 13.0d With Engineering Questions

Logistics Information

Production Completed→Shipping : 12.2d
Carrier
FedEx IP
Destination
SPAIN
Shipping Method
Express Air
Shipping Time
Apr 14 18:19

Key Manufacturing Processes

01
Engineering Review
02
Material Preparation
03
Inner Layer Imaging
04
Circuit Imaging & Etching
05
Layer Stack Alignment
06
High Pressure Lamination
07
Solder Mask Application
08
Electroless Nickel Deposition
09
Immersion Gold Deposition
10
Electrical Testing

Manufacturing Summary

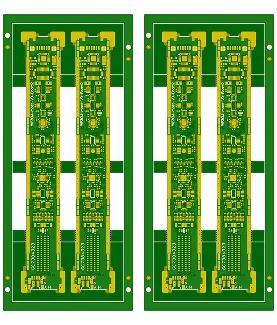

This 6-layer FR-4 board measured 107.25 × 16 mm with a thin 0.8 mm thickness, TG150 material, and 1 oz copper on both sides. Produced as 10 pieces in 1×2 panels for 5 sets, the order used ENIG surface finish (1 µin gold), green solder mask, and white silkscreen. Minimum holes were 0.2 mm with a tight 5 mil line/space geometry. Process edges of 4 mm on all sides supported routing separation with stamp holes. The 13-day schedule included 100% flying probe testing.



DFM review resolved edge, panel, and mask details. Copper along the board outline was too close and risked exposed copper after routing; copper was shaved 8 mil from the center of the outline except in plating-edge regions. Single Mark points outside the array were disregarded. The panel followed the customer 1×2 configuration with routing slots and mouse bites; tooling holes and Mark points were added on the process edges. The GM4 layer was identified as an assembly designator layer and ignored for fabrication. Stackup was confirmed to deliver 1 oz finished copper on all layers and a finished thickness of 0.89 ± 0.1 mm. Multiple IC and pad areas carried solder-mask openings; these were processed according to the original design without forcing bridges.



Confirmed copper setback, panel construction, stackup targets, and mask-window decisions were implemented prior to production. The narrow multilayer boards achieved consistent ENIG plating and dimensional control within the planned timeline. Full electrical test reports and quality certificates accompanied the shipment, confirming the panels met the specified mechanical and electrical requirements.
