PCB Specifications
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | Rigid-Flex PCB | Quantity | 25 pcs |
| Layers | 6 Layers | Board Type | Panel PCB |
| Dimensions | 102.9 x 89.6 mm | Copper Weight | 1OZ |
| Thickness | 0.8 mm | Min Track / Spacing | 6/6mil↑ |
| Surface Finish | ENIG (Immersion Gold) | Min Hole Size | 0.25mm |
| Solder Mask | Matte Black | Silkscreen | White |
Manufacturing Timeline
Logistics Information
Key Manufacturing Processes
Manufacturing Summary

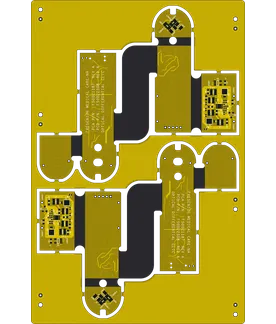

This production run consisted of 25 six-layer rigid-flex boards fabricated in panel configuration. Each board measured 102.9 × 89.6 mm with an overall thickness of 0.8 mm, using 1 oz copper, 6/6 mil trace spacing, 0.25 mm minimum holes, matte black solder mask, white silkscreen, and immersion gold ENIG finish. The thin hybrid construction required precise material preparation to ensure proper bend characteristics while maintaining layer registration across the rigid and flex zones.
Manufacturing proceeded through inner layer imaging, high-pressure lamination, and dedicated flex-rigid lamination steps to create clean transitions. Controlled depth routing defined the flexible areas accurately before solder mask application and ENIG plating. Dynamic flex reliability testing was performed to confirm the panels could endure repeated bending cycles without circuit degradation.
Electrical testing on completed panels verified continuity and isolation across all 25 units. The 35-day schedule accommodated the specialized lamination and validation steps inherent to this rigid-flex specification, resulting in consistent mechanical and electrical performance.
