6 Layer Rigid-Flex PCB Production Record #RFP-20251208-0053
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | Rigid-Flex PCB | Quantity | 80 pcs |
| Layers | 6 Layers | Board Type | Panel PCB |
| Dimensions | 55 x 25.5 mm | Copper Weight | 1OZ |
| Thickness | 1 mm | Min Track / Spacing | 6/6mil↑ |
| Surface Finish | ENIG (Immersion Gold) | Min Hole Size | 0.15mm |
| Solder Mask | Matte Black | Silkscreen | White |

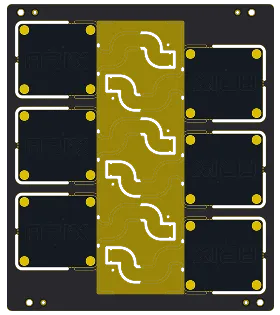

This rigid-flex PCB production comprised 80 panels of 6-layer construction, measuring 55 x 25.5 mm with 1.0 mm thickness. Key features included blind vias, 1oz copper, 0.15mm min hole size, 6/6 mil traces, matte black soldermask, white silkscreen, and immersion gold ENIG finish. These elements required precise handling during the flex-rigid lamination and surface finishing stages to maintain integrity across material transitions.
Processes encompassed inner layer imaging, high pressure lamination, flex-rigid bonding, solder mask application, and nickel/gold deposition. Controlled depth routing was applied to the panel layout. Dynamic flex reliability testing and electrical testing confirmed performance and consistency throughout the batch.
The order was completed in 28.3 days, yielding boards that met all specified requirements for this blind-via rigid-flex design.
