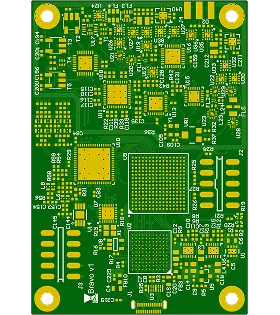

6 Layer Rogers PCB Production Record #ROG-20220317-0211
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | Rogers PCB | Quantity | 20 pcs |
| Layers | 6 Layers | Board Type | Single PCB |
| Dimensions | 50.8 x 73.66 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 5/5mil |
| Surface Finish | ENIG (Immersion Gold) | Min Hole Size | 0.2mm |
| Solder Mask | Green | Silkscreen | White |
| Material Type | Rogers/RO4350B |
Production of these 20-unit 6-layer Rogers RO4350B PCBs centered on careful material handling and lamination specific to the low-loss characteristics of the substrate. Measuring 50.8 x 73.66 mm with standard 1.6 mm thickness and 1 oz copper, the boards featured a tighter 5/5 mil track and spacing geometry. Inner layer imaging, etching, and layer stack alignment were executed with attention to maintaining the specified tolerances during high pressure lamination.
Immersion gold ENIG surface finish was achieved via sequential electroless nickel deposition and immersion gold deposition, delivering a flat contact surface ideal for RF applications often associated with Rogers materials. The green soldermask, white silkscreen, and 0.2 mm minimum hole size were processed without deviation. Electrical testing confirmed the integrity of all connections on each board.
The manufacturing sequence, spanning material preparation through final validation, supported reliable outcomes for this small-quantity order. Process parameters were adjusted to the unique requirements of the Rogers PCB construction, ensuring every unit met the design criteria for consistent performance.
Discover how AIVON manufactures 6 Layer Rogers PCBs, including complex high-frequency stackup design, advanced material processing, impedance control requirements, manufacturing challenges, and real production experience from customer orders.
Master troubleshooting common Rogers PCB manufacturing challenges including drilling defects, plating adhesion, delamination, and CTE mismatch. Learn practical solutions, process adjustments, and DFM tips to improve yield for high-frequency RO4000, RO4350B, and PTFE-based boards.
