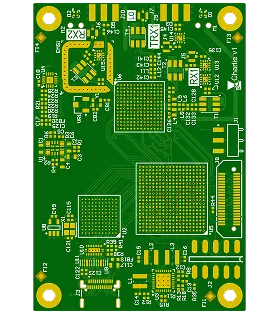

6 Layer Rogers PCB Production Record #ROG-20221110-0103
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | Rogers PCB | Quantity | 20 pcs |
| Layers | 6 Layers | Board Type | Single PCB |
| Dimensions | 73.66 x 50.8 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 4/4mil |
| Surface Finish | ENIG (Immersion Gold) | Min Hole Size | 0.2mm |
| Solder Mask | Green | Silkscreen | White |
| Material Type | Rogers/RO4350B |
Production for this order centered on 20 units of 6-layer Rogers RO4350B material, each measuring 73.66 by 50.8 mm with 1.6 mm overall thickness. We applied specific Rogers material preparation techniques before proceeding with inner layer imaging, etching, and precise layer alignment. The 4/4 mil track and spacing along with 0.2 mm minimum hole size demanded accurate control during the circuit patterning stages.
High pressure lamination ensured solid bonding of the low-loss layers, after which green solder mask and white silkscreen were applied. The surface was finished with electroless nickel deposition followed by immersion gold to produce a uniform ENIG coating suited to the circuit requirements.
Electrical testing validated every board in the batch, verifying continuity and isolation as specified. This Rogers PCB order was completed in 13.3 days, resulting in reliable boards that align with the design's performance needs.
