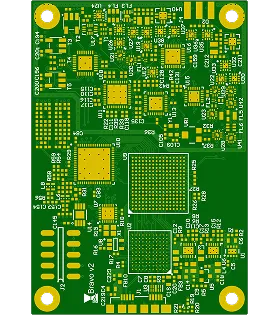

6 Layer Rogers PCB Production Record #ROG-20220623-0039
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | Rogers PCB | Quantity | 20 pcs |
| Layers | 6 Layers | Board Type | Single PCB |
| Dimensions | 50.8 x 73.7 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 5/5mil |
| Surface Finish | ENIG (Immersion Gold) | Min Hole Size | 0.2mm |
| Solder Mask | Green | Silkscreen | White |
| Material Type | Rogers/RO4350B |
This production record covered 20 six-layer boards built on Rogers RO4350B material in a 50.8 by 73.7 mm footprint and 1.6 mm finished thickness. With 1 oz copper and a 5/5 mil minimum trace spacing, the design required controlled imaging and etching to maintain edge definition on the tighter geometry. Immersion gold ENIG surface finish was applied over the green soldermask and white legend to support reliable RF performance and assembly compatibility.
Rogers material preparation and low-loss lamination steps received specific focus to protect dielectric stability during high-pressure stack-up. Layer registration remained accurate across the six copper layers, and 0.2 mm minimum holes were drilled and plated without deviation. The sequence of inner layer imaging, circuit etching, solder mask application, nickel deposition, and immersion gold plating produced uniform results across the full set.
Electrical testing at completion verified netlist integrity and confirmed that all 20 boards met the required parameters for this Rogers PCB order. The 8.4-day manufacturing window allowed methodical execution without rushing critical steps for the low-volume run.
