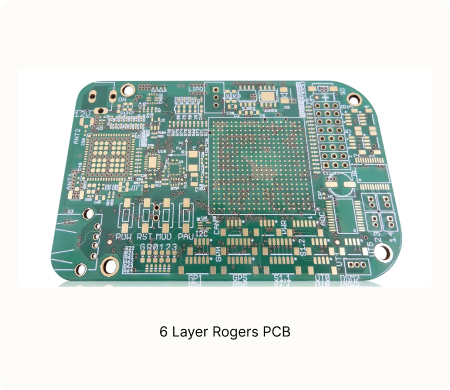

6 Layer Rogers PCB Manufacturing Insights

Specialized production of multilayer boards with Rogers high-frequency laminates delivers consistent impedance and low signal loss for demanding RF applications.

Typical Specification Range

Parameter	High frequency 6 layer PCBs using Rogers materials
Layer count	6 layers
Material type	Rogers 4350B, RO4003C, RT/duroid 5880
Surface finish	ENIG, Immersion Silver, OSP
Thickness	0.8mm to 2.0mm
Solder mask	LPI solder mask
Copper thickness	1oz to 2oz
Special features	Impedance control, hybrid stackups, blind vias, sequential lamination

Manufacturing Process Insights

Lamination: Rogers materials require precise temperature and pressure profiles during bonding. Hybrid constructions with FR-4 demand careful sequencing to control resin flow and dielectric thickness.

Drilling and Plating: Adjusted drill parameters prevent tearing in PTFE composites. Plasma desmear ensures clean hole walls before electroless copper deposition.

Surface Finish: ENIG is preferred for signal integrity at high frequencies. Process monitoring focuses on copper roughness and registration accuracy to maintain yield.

Manufacturing Order Profile

Order Quantity	Order Proportion	Estimated Price Level	Typical Lead Time
Prototype (<=30 pcs)	55%	High	5-10 days
Small volume (30-200 pcs)	35%	Medium	10-18 days
Mass production (>200 pcs)	10%	Low	20-30 days

Manufacturing Challenges & Process Optimization

Dielectric Thickness Variation
Rogers materials in 6 layer boards exhibit different flow behavior than FR-4 during lamination cycles.
Resin content and filler characteristics combined with pressure variations cause inconsistent dielectric thickness.
These variations produce impedance deviation beyond target tolerance. This leads to inconsistent signal velocity and higher return loss across production batches.

Apply symmetric stackup architecture with balanced copper distribution on both sides of the board.
Utilize matched flow prepregs and steel separator plates with vacuum-assisted lamination cycles.
Perform cross-section analysis and TDR impedance testing on first articles with statistical process control.

View Exact Order Case

CTE Mismatch in Hybrid Stackups
Mixing Rogers RF cores with FR-4 layers in 6 layer designs creates differential expansion during thermal excursions.
Significant difference in Z-axis CTE between PTFE-based Rogers and epoxy FR-4 generates internal stress.
The resulting warpage and via stress lead to reduced thermal cycling reliability and potential interconnect failures in field operation.

Position Rogers cores near the center of the stackup and balance dielectric thicknesses on both sides.
Select compatible hybrid bonding materials and optimize lamination temperature ramps based on material datasheets.
Conduct thermal shock testing followed by IST coupon verification and cross-section inspection of vias.

View Exact Order Case

Design Considerations

Create symmetrical stackups to reduce warpage risk. Position high frequency layers adjacent to reference planes. Calculate dielectric thickness for target impedance. Review manufacturability with fabricator before finalizing layout.

Common Applications

PCB Solution for Telecommunication

AIVON telecommunication PCBs are high-performance boards designed for fast and stable signal transmission. Used in base stations, routers, satellite systems, and 5G infrastructure, they feature advanced materials and precision manufacturing to ensure low signal loss, accurate impedance control, and reliable high-frequency performance.

PCB Solution for Automotive Electronics

AIVON automotive electronics PCBs are designed for demanding vehicle environments. They withstand extreme temperatures, vibration, and harsh conditions, supporting ECUs, ADAS, infotainment, and EV modules. Featuring multilayer, rigid-flex, and high-frequency designs, AIVON PCBs meet IATF 16949 standards for safe and reliable automotive performance.

PCB Solution for Aerospace and Aviation

AIVON provides high-reliability PCBs designed for civil aviation and aerospace applications, built to perform under extreme conditions such as vibration, temperature variation, and high-altitude environments. These PCBs are widely used in avionics systems, flight control modules, communication equipment, and satellite technologies. With advanced multilayer structures, heavy copper options, and high-temperature materials, our solutions are engineered to meet stringent reliability standards such as IPC-6012 Class 3.

Real Production Records

Order ID	PCB Type	Layers	Dimensions	Solder Mask	Surface Finish	Quantity	Action
Loading...

View More Engineering Resources

Why Choose AIVON for 6 Layer Rogers PCB?

AIVON excels in producing 6 layer Rogers PCBs. We ensure precise multi-layer registration and controlled lamination. Dielectric thickness and impedance are strictly managed. Copper plating remains uniform and consistent. This guarantees excellent signal integrity with minimal insertion loss. The result is stable and reliable high-frequency performance for RF, microwave, and 5G applications.
