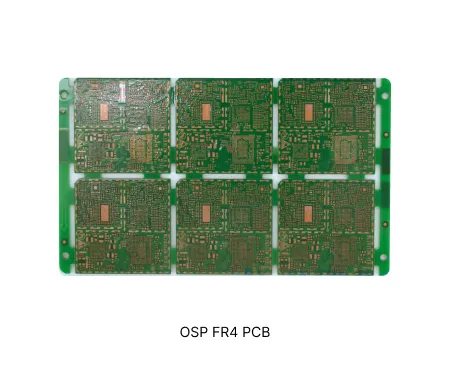

OSP FR4 PCB Manufacturing Insights

OSP delivers a thin organic coating on FR4 copper surfaces. The finish supports fine pitch SMT while maintaining lower cost than metallic alternatives.

Typical Specification Range

Parameter	Standard FR4 boards with OSP finish for general electronics
Layer count	2 to 16 layers
Material type	FR4, high Tg FR4
Surface finish	OSP
Thickness	0.6mm to 3.2mm
Solder mask	LPI solder mask
Copper thickness	0.5oz to 2oz
Special features	Fine pitch routing, impedance control

Manufacturing Process Insights

FR4 cores and prepregs are laminated under controlled heat and pressure. Mechanical drilling creates vias followed by electroless and electrolytic copper plating.

Circuit pattern is etched after dry film imaging. Solder mask is applied and developed before final surface treatment.

OSP Application Logic
OSP chemistry forms a thin organic layer on exposed copper pads only. Bath concentration, temperature and immersion time are tightly controlled for uniform coverage.

Risk control includes copper surface micro-etch verification and inline thickness monitoring. Proper packaging prevents oxidation until assembly.

Manufacturing Order Profile

Order Quantity	Order Proportion	Estimated Price Level	Typical Lead Time
Prototype (<=30 pcs)	45%	Higher	Short (5-10 days)
Small volume (30-200 pcs)	35%	Medium	Medium (10-15 days)
Mass production (>200 pcs)	20%	Lower	Longer (18-25 days)

Manufacturing Challenges & Process Optimization

OSP Shelf Life Limitations
OSP coated boards can lose effectiveness when stored for extended periods before assembly.
The thin azole-based organic layer degrades from exposure to moisture, heat and atmospheric oxygen.
Degraded coating causes poor solder wetting during reflow. This increases defect rates including non-wet opens and head-in-pillow issues. Final product reliability is compromised in field operation.

Implement strict FIFO inventory management and climate controlled storage.
Apply vacuum packaging with desiccants and provide clear shelf-life labeling on each panel.
Perform sample solderability testing using wetting balance analysis before release.

View Exact Order Case

Uneven OSP Coating
Inconsistent organic layer thickness occurs across dense or large copper features.
Root cause relates to inadequate micro-etch uniformity or incorrect bath agitation during immersion.
Variable coating leads to inconsistent wetting behavior during assembly. Yield drops due to sporadic soldering defects. Long-term joint integrity becomes difficult to guarantee.

Optimize pre-cleaning micro-etch step to create uniform copper surface texture.
Maintain precise chemical concentration, temperature and circulation in the OSP process line.
Use automated optical inspection and selective solderability testing on finished panels.

View Exact Order Case

Design Considerations

Plan symmetric stackups to balance copper distribution and reduce warpage risk. Control dielectric thickness for consistent impedance. Select available FR4 materials to maintain reliable volume production.
