A 12-layer FR4 PCB order with TG170 material and full electrical testing arrived for CAM review. The files included both Gerber and TGZ archives, along with detailed impedance and stackup requirements. During initial data intake, our team identified conflicting copper thickness specifications across the provided documentation. This inconsistency directly impacted the ability to verify and achieve the requested impedance values, prompting a formal Engineering Question before production could proceed.
The board featured 1.6mm finished thickness, immersion gold surface finish, and specific via requirements. With a delivery timeline of 16 days and 100% flying probe testing specified, any misalignment in core manufacturing parameters risked schedule delays and performance deviations. CAM review focused on aligning all inputs to ensure consistent manufacturability.
Understanding the Original Design Intent
The customer design targeted a complex 12-layer PCB ( #FR4-20260430-040 ) construction suitable for electronic applications requiring controlled impedance and reliable multilayer connectivity. Key parameters included TG170 FR4 material, 1oz outer and 0.5oz inner copper, 0.2mm minimum hole size, and full electrical testing. Impedance requirements were documented alongside a proposed stackup, with expectations for precise layer registration and via processing including tree resin plugging where noted.
Fabrication notes called for immersion gold, specific solder mask colors, and white silkscreen. Panelization was single piece with mechanical forming. The overall intent appeared to balance high layer count density with standard high-reliability processing. However, the presence of dual file formats (Gerber and TGZ) and varying copper thickness calls across documents introduced early interpretation challenges.
Engineering Findings During Initial CAM Review
Our CAM engineer immediately noticed discrepancies in the copper thickness specifications between different sections of the provided data. While some areas referenced 1oz outer / 0.5oz inner, other parts of the documentation showed inconsistencies that affected stackup calculations. Further cross-check with the impedance requirements revealed that these variations would require line width adjustments to meet target values.
Verification of file formats confirmed the presence of both Gerber and TGZ files. Production would default to Gerber per standard procedure, but this needed explicit confirmation. Additional observations included via opening inconsistencies on the bottom solder mask and silkscreen numbering requests that required alignment with order notes.
| Observation | Data Source | Initial Concern |
|---|---|---|
| Copper thickness mismatch | Stackup docs vs Impedance table | Impedance calculation impact |
| Dual file formats (Gerber + TGZ) | Order files | Which to use for production |
Core Conflict: Copper Thickness and Stackup Interpretation for Impedance
The primary design-manufacturing conflict was a Documentation Conflict combined with Data-to-Data mismatch regarding copper thickness. The provided materials specified differing copper weights in separate locations, directly affecting the proposed stackup and required impedance line width adjustments. Our engineering analysis showed that without resolution, the calculated impedance values would deviate from customer targets due to variations in conductor geometry.
During verification, the stackup drawing and impedance documentation could not be reconciled consistently with the order parameters for 12-layer construction at 1.6mm thickness. This created uncertainty in layer dielectric thicknesses and overall signal integrity predictions. Production could not proceed because the manufacturing data lacked a single, unambiguous reference for copper configuration, risking boards that would fail electrical testing or impedance verification.

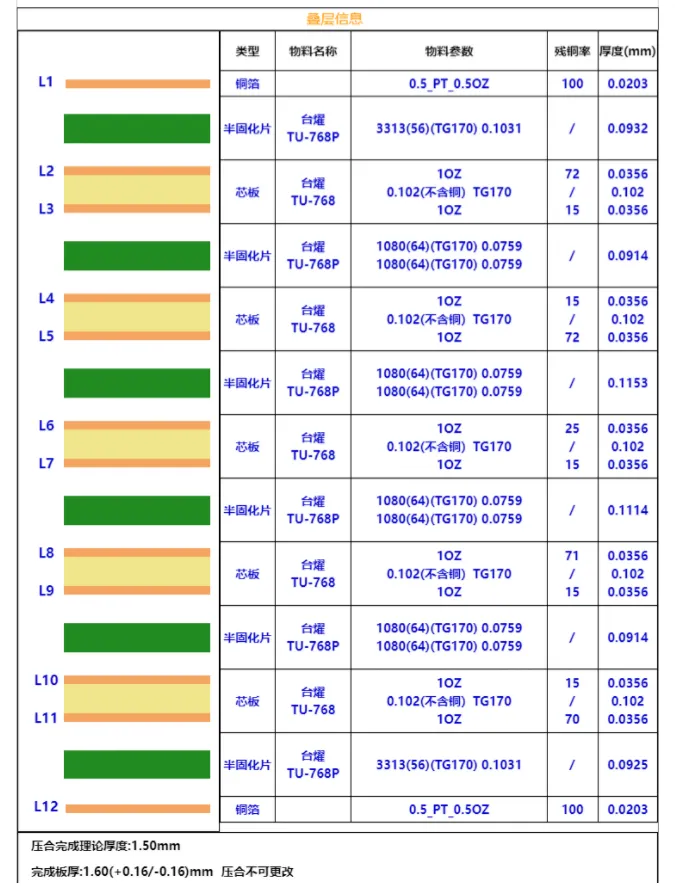

Figure 1: our recommend stackup based on our production status
"Further review revealed that the design intent for copper thickness could not be reliably interpreted across all files," our team documented. According to IPC-2221 principles for conductor thickness in multilayer boards, such inconsistencies can significantly impact controlled impedance tolerances and require explicit confirmation before lamination.
If ignored, this could lead to finished boards with impedance values outside acceptable ranges, potentially causing signal integrity issues in the final application. The conflict was not merely administrative but fundamental to the electrical performance the design sought to achieve.
Supporting File and Process Observations
Secondary findings reinforced the need for full clarification. The dual Gerber and TGZ file sets required confirmation on which would govern production artwork. Bottom layer solder mask openings for vias differed from order via specifications, creating a potential interpretation gap for plating and mask processes. Production serial number addition on top layer silkscreen was proposed but needed customer acceptance to ensure it aligned with overall marking requirements without interfering with other elements.

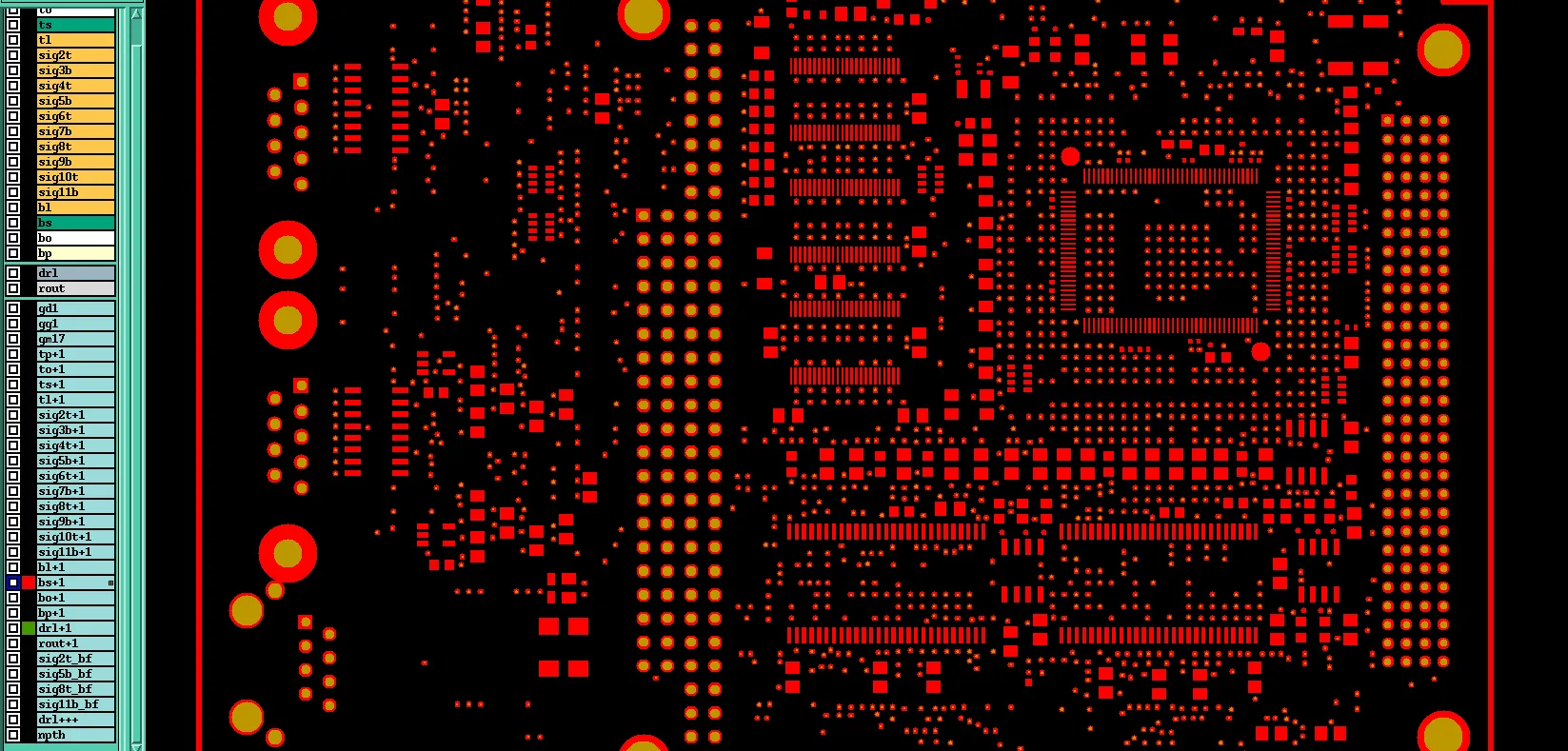

Figure 2: solder mask openings for vias

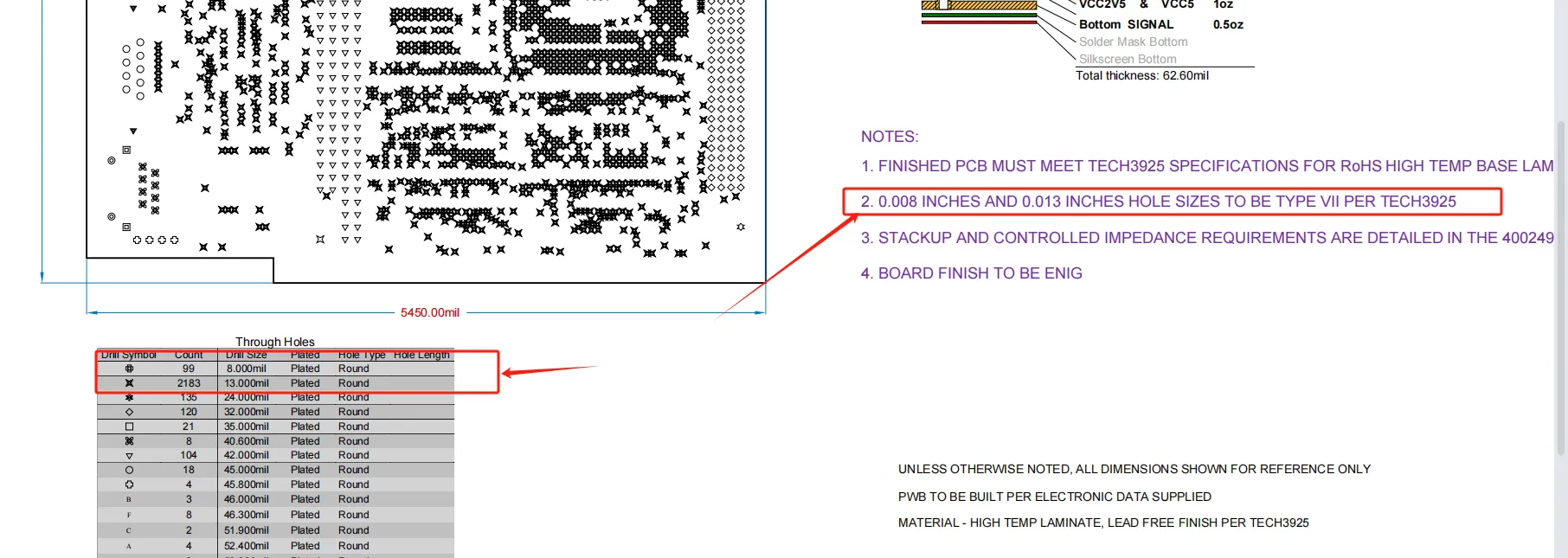

Figure 3: order via specifications
These points, while lower risk individually, highlighted broader documentation alignment challenges that could compound during lamination and testing phases. Our CAM workflow grouped them as supporting evidence for the main stackup resolution.
| Supporting Issue | Evidence | Manufacturing Implication |
|---|---|---|
| File format selection | Gerber vs TGZ presence | Artwork generation consistency |
| Via solder mask openings | Order vs data files | Mask vs plating alignment |
| Silkscreen numbering | Proposed top layer addition | Marking clarity and space |
Engineering Clarification and Resolution Path
We compiled the EQ package with annotated comparisons of the conflicting copper thickness entries, proposed stackup based on factory capabilities, and required impedance line width adjustments. The communication clearly outlined the evidence from each data source and recommended a unified copper configuration to achieve the impedance targets.
Proposed solutions included: confirming Gerber as the master artwork source; accepting our adjusted stackup for the 12-layer build; revising impedance line widths accordingly; aligning via solder mask requirements; and approving top-layer production numbering placement. The customer reviewed the materials and provided confirmation on all points, including acceptance of the revised parameters.

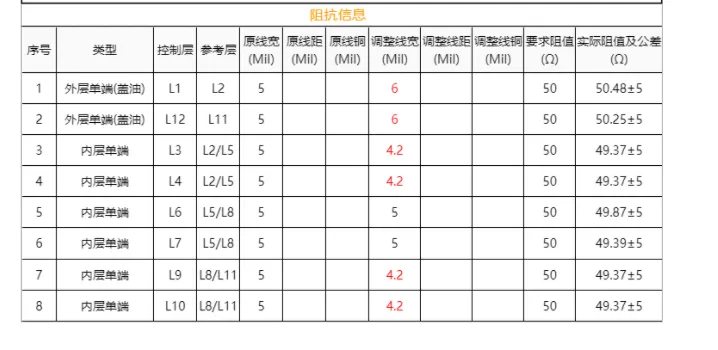

Figure 4: updated impedance control information

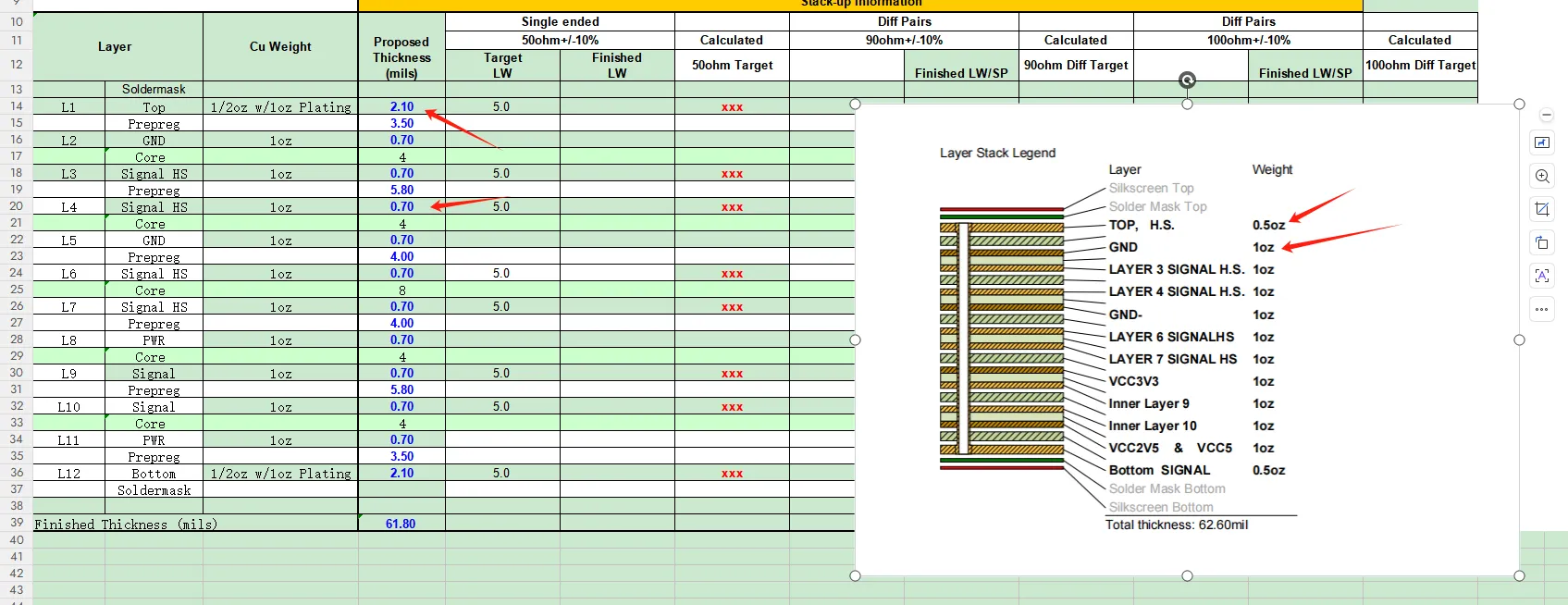

Figure 5: updated stackup information
With updated files reflecting the agreed specifications, the design intent was now consistently interpretable. This allowed progression to full production release with confidence in meeting both mechanical and electrical requirements.
Key Design Lessons for 12 layer FR4 PCB Designers
- Ensure copper thickness specifications are identical across all stackup drawings, impedance tables, and order notes for multilayer boards.
- Provide a single master file format reference when submitting mixed Gerber and compressed archives.
- Cross-verify via mask requirements between order specifications and layer data to prevent plating conflicts.
- Specify exact locations and content for any production markings like serial numbers early in the design phase.
- Anticipate potential line width adjustments when submitting impedance requirements with specific copper weights.
- Maintain consistency in material and thickness calls for high-layer-count designs to facilitate accurate lamination planning.
- Include clear confirmation points for any non-standard via or mask treatments in documentation.
- Review all submitted files for internal contradictions before order submission to reduce EQ cycles.
FAQ
Q1: Why does copper thickness inconsistency trigger an Engineering Question in multilayer PCBs?
A1: Differing copper weights affect dielectric calculations and trace geometry needed for impedance control. Without clarification, the manufactured board may not meet electrical specifications.
Q2: What happens when both Gerber and TGZ files are provided?
A2: CAM teams typically default to Gerber for production. Explicit confirmation ensures the correct artwork source is used and avoids interpretation differences.
Q3: How do via solder mask openings affect manufacturing?
A3: Inconsistencies between order requirements and data files can lead to unexpected mask openings or plating issues, requiring alignment for reliable via performance.
Q4: Why adjust impedance line widths during CAM review?
A4: Proposed stackups based on actual process capabilities often require trace width modifications to achieve the customer's target impedance values after copper thickness confirmation.
Q5: Should designers specify production numbering in advance?
A5: Yes. Early specification prevents placement conflicts with other silkscreen elements and ensures it integrates smoothly with manufacturing files.
Q6: What is the benefit of resolving stackup conflicts before production?
A6: It prevents electrical test failures, reduces material waste, and ensures the final board meets both mechanical dimensions and impedance requirements.
