During routine CAM review of a standard 8-layer FR4 PCB order intended for electronics control applications, our team encountered multiple interpretation challenges that prevented immediate production release. The primary concern centered on impedance control specifications and their alignment with the actual production data files. This engineering investigation highlights how seemingly straightforward design files can contain hidden conflicts that require clarification to ensure reliable manufacturing outcomes.
The PCB featured controlled impedance traces, V-CUT panelization, and stamp holes for depanelization. Customer-provided stackup and impedance tables needed careful cross-verification against Gerber data, drill files, and fabrication notes. Without resolution, production risked deviations in electrical performance and mechanical integrity.
Understanding the Original Design Intent
The 8-layer FR4 PCB ( #FR4-20251224-025 ) design aimed to achieve consistent signal integrity across critical traces in a multi-layer configuration. The customer supplied a detailed impedance table specifying target values for various trace widths on inner layers, along with a lamination diagram outlining the stackup. Fabrication notes emphasized precise impedance control, with expectations for standard FR4 material and typical tolerances.
Panelization included V-CUT and stamp holes measuring 0.3mm, alongside requirements for production numbering. Solder mask and silkscreen specifications appeared standard, with attention to character placement near pads. The overall intent was a manufacturable board meeting electrical and mechanical requirements for assembly and operation.
Our initial review confirmed the board's layer count and basic dimensions aligned with the order parameters. However, discrepancies emerged when mapping the provided impedance references to the production artwork.
Engineering Findings During Initial CAM Data Review
Our CAM engineer noticed an immediate inconsistency between the customer-provided impedance table and the visible traces in the production Gerber files. Several lines referenced in the impedance documentation could not be reliably identified within the manufacturing data set.
Further verification of the drill data and stackup definitions revealed additional points requiring attention, including potential issues with stamp hole sizing and silkscreen proximity to solder mask openings. These observations collectively indicated that the design intent could not be interpreted with sufficient confidence for production.
| Engineering Observation | Data Source | Identified Concern |
|---|---|---|
| Impedance lines missing or unidentifiable | Impedance Table vs Production Gerber | Data-to-Data Conflict |
| Stamp holes at 0.3mm | Drill File & Fabrication Notes | Ink Plugging Risk |
Primary Conflict: Impedance Line Identification and Stackup Interpretation
The dominant design-manufacturing conflict was a clear Data-to-Data Conflict involving the impedance control specifications. The provided impedance table referenced specific trace configurations that did not consistently match the lines present in the production artwork files. According to the customer's lamination diagram, inner layer impedance calculations showed potential deviations up to 2/3 ohm, raising concerns about whether the final board would meet electrical performance requirements.

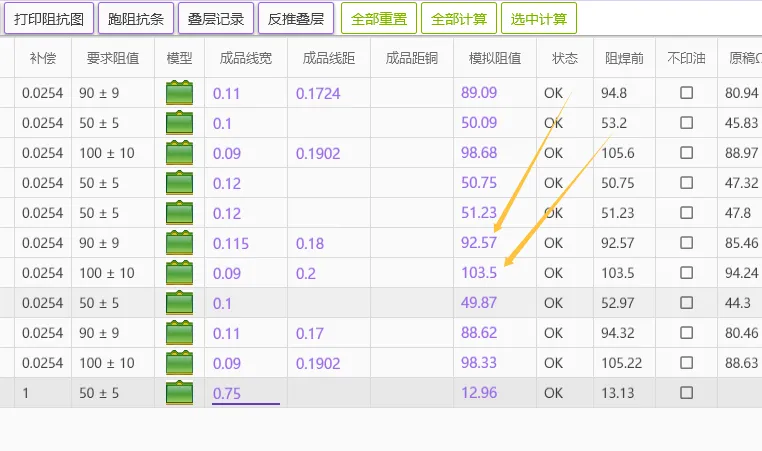

inner layer impedance calculations showed potential deviations up to 2/3 ohm
During data verification, we identified that the fabrication notes assumed default line width compensation after production, yet several highlighted traces in the impedance table lacked corresponding features in the manufacturing gerbers. This ambiguity meant our team could not confidently determine which traces were intended for tight impedance control versus standard routing.

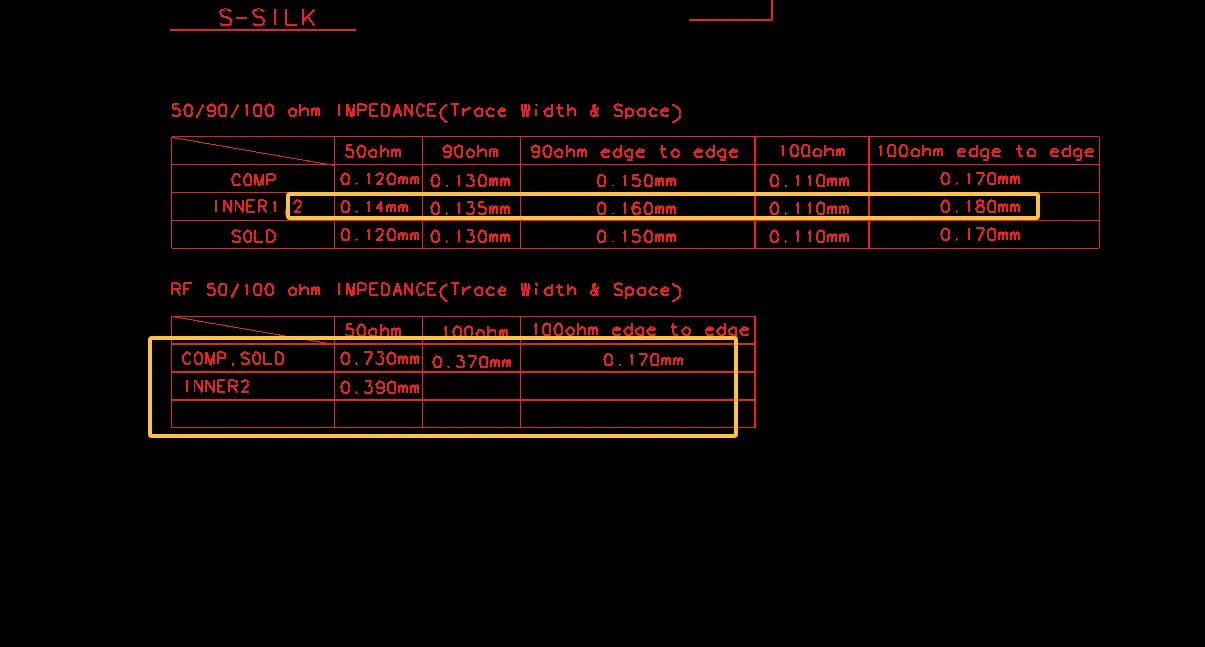

some of the impedance-controlled traces do not exist in the production files

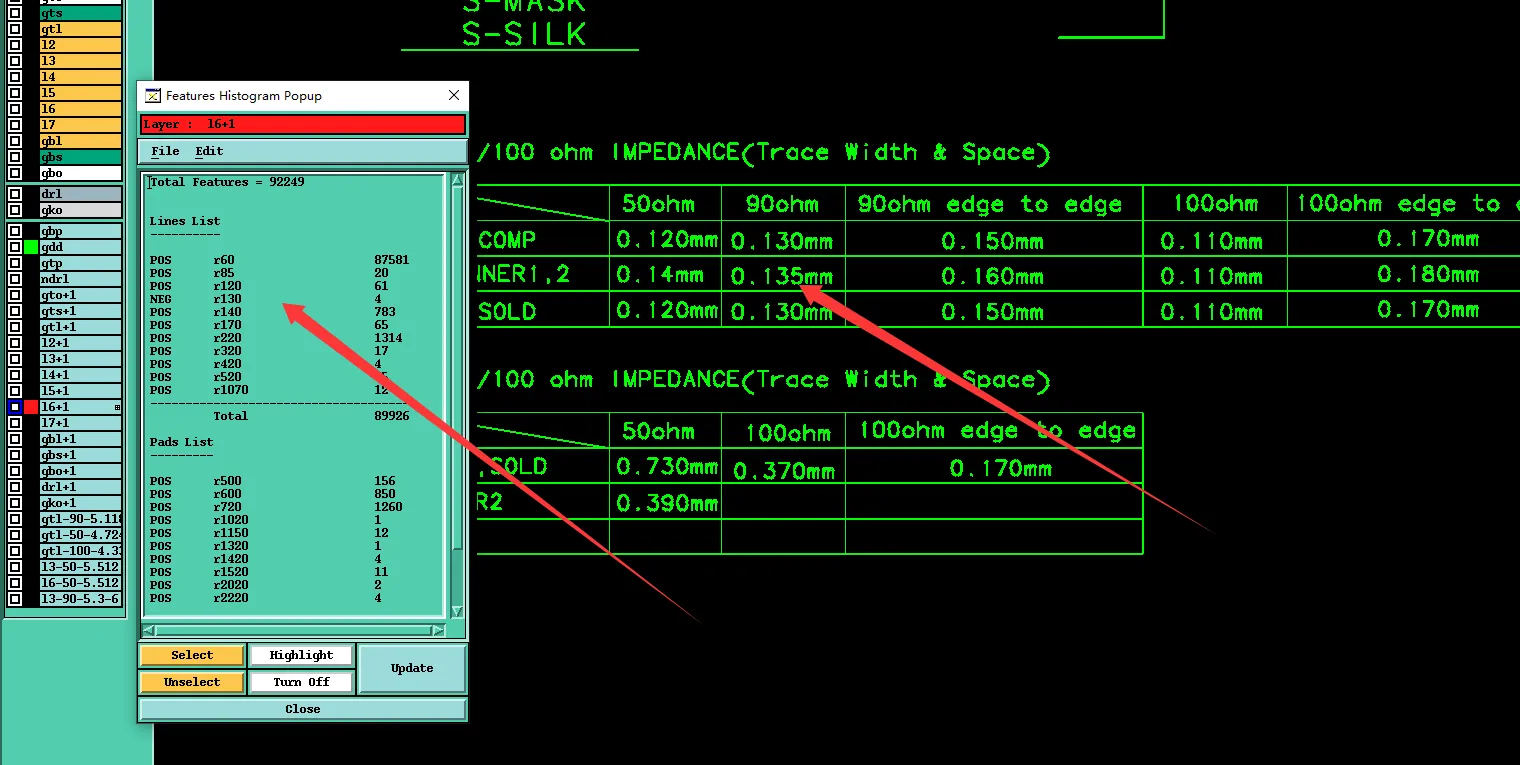

the impedance-controlled traces cannot be accurately identified in your production data
If left unaddressed, this conflict risked producing boards with inconsistent signal integrity. In high-speed applications, even small deviations in controlled impedance can lead to reflections, crosstalk, or timing issues. Our analysis followed IPC-2221 guidelines for trace geometry and spacing, confirming that the observed mismatches approached manufacturability limits for reliable impedance control.
"Further review revealed that the design intent could not be reliably interpreted for manufacturing without customer confirmation on the exact impedance traces," noted our CAM team. Production could not proceed because the engineering evidence from the files pointed to multiple possible interpretations.
Supporting Mechanical and Documentation Concerns
During the deeper investigation, our CAM engineer identified several supporting issues that reinforced the overall need for clarification, even though the impedance identification remained the primary conflict. These mechanical and documentation points emerged directly from cross-checking the production panel files, drill data, fabrication notes, and customer order specifications.
First, the panelization outline contained multiple sharp internal corners where the router tool could not fully access during depanelization. The production gerber showed these acute angles in the routing path, which would likely leave residual sharp protrusions on the finished boards. This observation stemmed from standard V-CUT and routing process verification — if ignored, it could result in cosmetic defects or minor handling issues during assembly, though not a critical electrical failure.

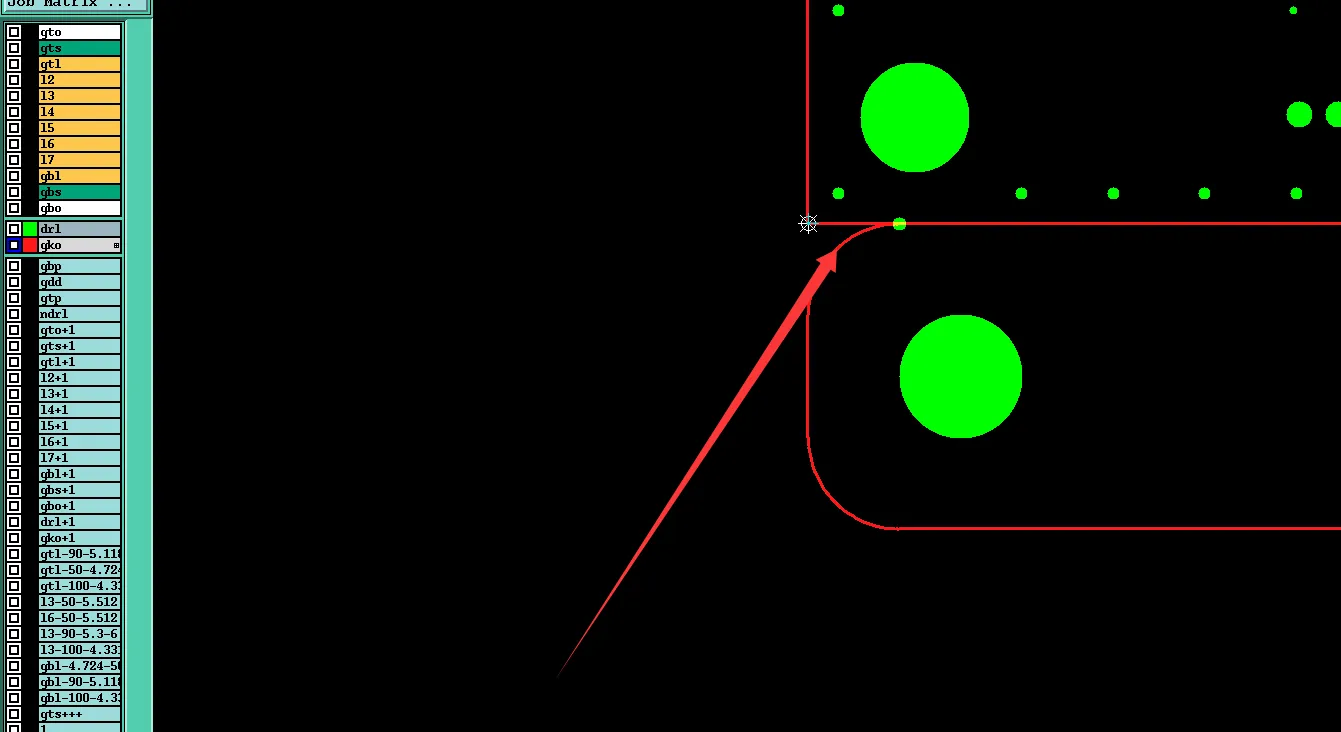

sharp corners on the processing rails
Next, silkscreen characters in several areas were positioned too close to solder mask openings. Our review confirmed distances insufficient for reliable processing; the plan was to shift legible ones where space allowed and remove others entirely where movement was impossible. The customer would need to accept potential partial incompleteness or blurring on affected markings. Similarly, a white oil bridge area measured only about 1mil separation from the solder mask boundary, falling well below the 4mil minimum required for our process to reliably prevent ink encroachment onto pads. This could lead to solder mask defects impacting SMT assembly yield.

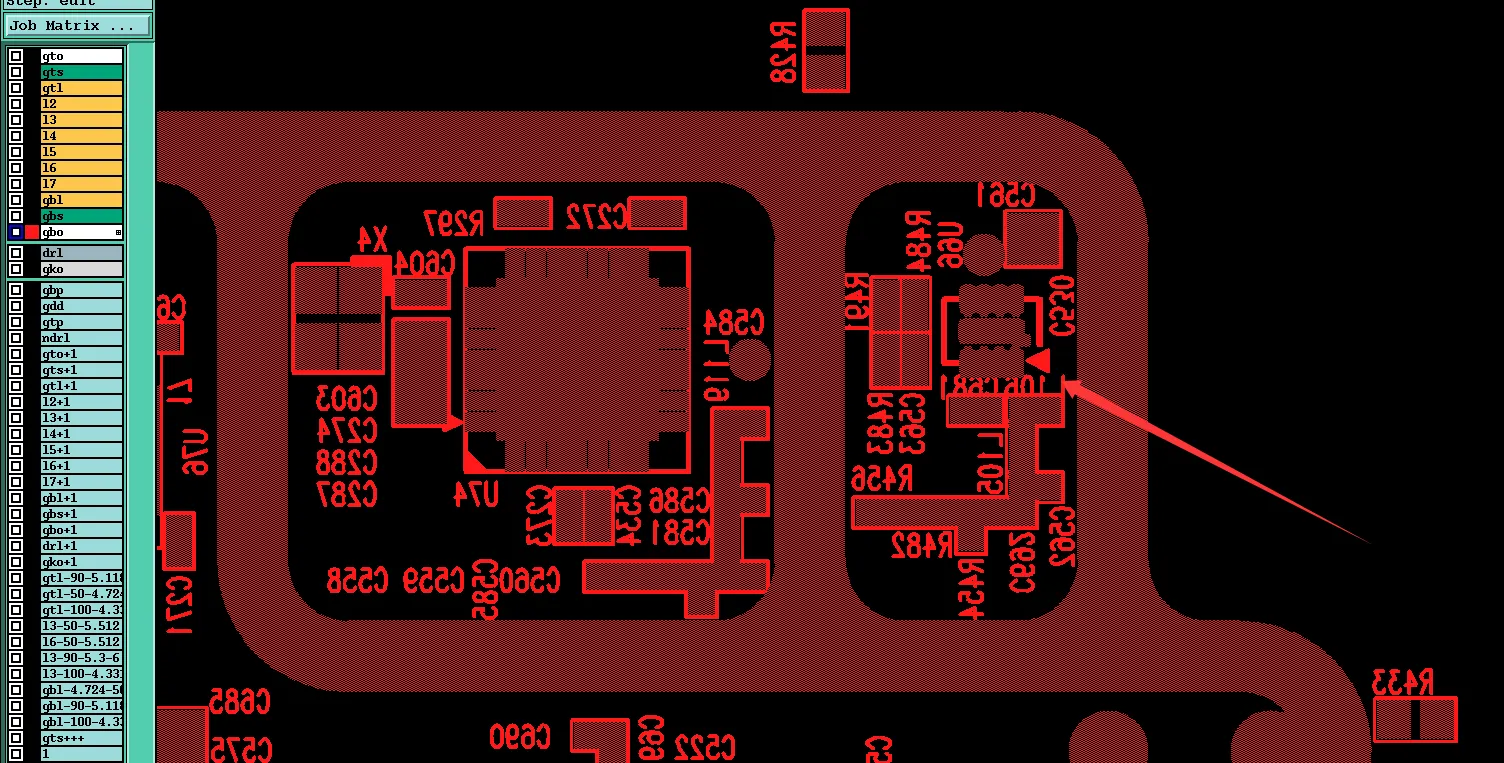

some silkscreen characters are too close to the solder mask pads

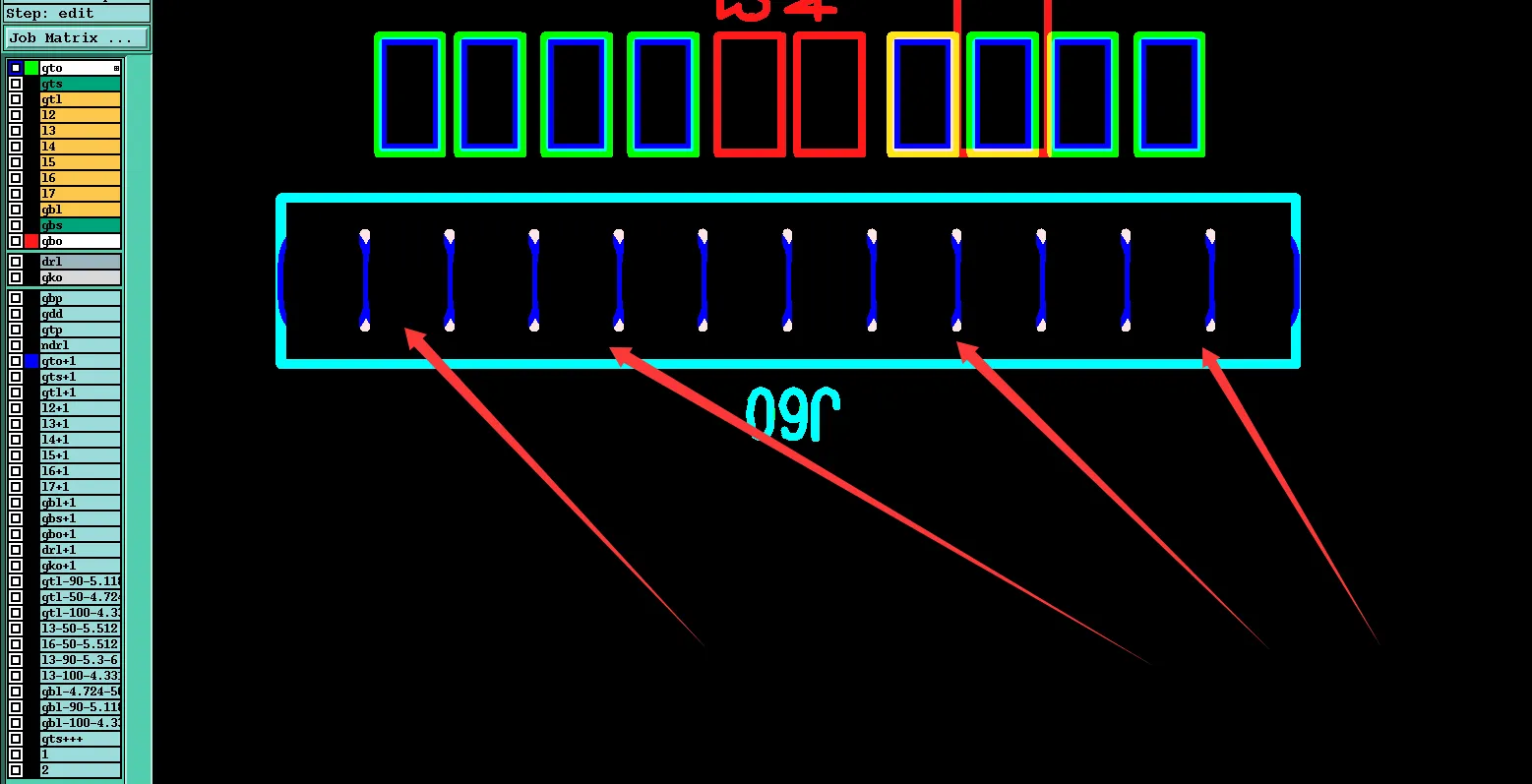

the distance between the white silkscreen and the solder mask is only 1 mil
Stamp holes specified at 0.3mm diameter raised a clear manufacturability flag. Drill data verification showed these small openings carried a realistic risk of solder mask ink flowing in during application, potentially causing plugged or partially blocked holes that complicate plating or cleaning. This conflicted with typical process capabilities for reliable depanelization features.

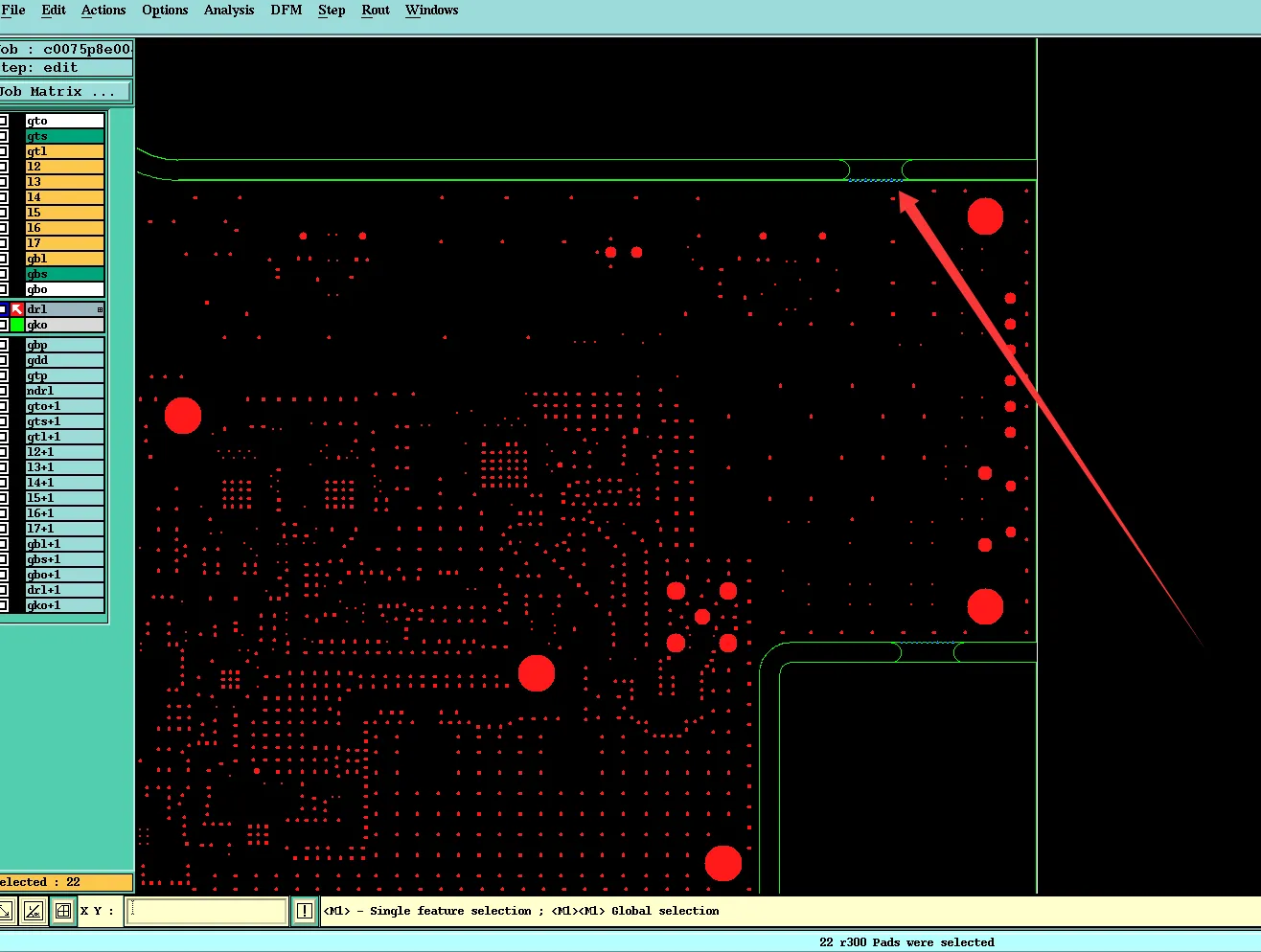

the diameter of the stamp holes is 0.3 mm
On the documentation side, the request to incorporate production serial numbering directly contradicted the order notes stating no modifications to production files. This created an interpretation gap between the intended identification method and the provided manufacturing instructions.
The table below summarizes the secondary engineering observations identified during CAM review. These issues reinforced the primary impedance conflict and required customer clarification.
| Engineering Observation | Source Data | Specific Concern | Potential Manufacturing Impact | Proposed Handling |
|---|---|---|---|---|
| Sharp corners in production panel outline | Gerber routing paths / V-CUT data | Router tool cannot fully access acute angles | Residual sharp edges on finished boards | Panelization adjustment review |
| Silkscreen characters near solder mask pads | Silkscreen layer vs Solder mask openings | Insufficient clearance in multiple locations | Ink overlap or assembly interference | Move where possible; remove if necessary (accept partial legibility) |
| White oil bridge spacing | Solder mask data review | Only 1mil separation (process requires 4mil) | Solder mask ink on pads | Increase bridge spacing or confirm design adjustment |
| Stamp holes diameter | Drill file & fabrication notes | 0.3mm (too small for reliable processing) | Ink ingress and hole plugging risk | Increase diameter to reduce plugging risk |
| Production serial number requirement | Order notes vs fabrication instructions | Conflicting instructions on file modifications | Documentation interpretation gap | Confirm implementation method without core file changes |
Engineering Clarification Process and Resolution
We issued a formal Engineering Question (EQ) package detailing the primary impedance conflicts along with supporting mechanical concerns. The communication outlined our observations, provided annotated screenshots of the production files versus customer references, and proposed specific adjustments.
Our proposed solutions included: redefining the impedance-critical traces with clear layer and width specifications in revised gerbers; increasing stamp hole size to a manufacturable dimension with reduced ink risk; adjusting silkscreen placement or accepting selective character removal; and confirming acceptance of minor production numbering implementation without altering core files.
The customer promptly reviewed the EQ and provided confirmation on the impedance lines, updated stackup calculations, and approvals for the mechanical adjustments. Revised design files incorporated the agreed modifications, ensuring alignment between documentation and production data.
With all conflicts resolved, the job was released for production. The final stackup and impedance parameters now matched verifiable manufacturing capabilities, minimizing risks of electrical or mechanical defects.
Key Design Lessons for PCB Designers
- Always ensure impedance tables include explicit references to specific net names, layers, and trace locations visible in Gerber outputs.
- Cross-verify stackup diagrams against actual production layer definitions before submission to avoid calculation deviations.
- Specify minimum stamp hole diameters considering solder mask application processes to prevent ink-related defects.
- Maintain adequate clearance (typically 4mil or more) for solder mask bridges near pads and consider silkscreen proximity during layout.
- Clearly document any production identification requirements and their impact on manufacturing files in advance.
- Provide panelization details including V-CUT and router path considerations to avoid outline processing issues.
- Use consistent units and annotations across all fabrication notes, drill files, and supporting documentation.
- Anticipate CAM review by simulating production data interpretation prior to order placement.
Conclusion
This case demonstrates how targeted engineering clarification during CAM review transforms potential manufacturing uncertainties into a reliable production release. By focusing on evidence from the actual data files, our team ensured the customer's design intent was accurately realized.
FAQ
Q1: Why did impedance line references in the table trigger an Engineering Question?
A1: The lines specified in the impedance table could not be consistently identified in the production Gerber files, creating ambiguity in applying compensation and verification for controlled impedance manufacturing.
Q2: What risks arise from small stamp holes in PCB panelization?
A2: Holes around 0.3mm increase the likelihood of solder mask ink entering and plugging during application, which can affect plating quality or require additional processing steps.
Q3: How should designers handle silkscreen near solder mask pads?
A3: Maintain sufficient clearance to allow for any necessary movement or removal during CAM review. Close proximity often requires adjustment to prevent ink on pads affecting assembly.
Q4: What happens when fabrication notes conflict with actual production data?
A4: CAM engineers issue clarification requests to align interpretations. Unresolved conflicts can lead to production delays or boards that deviate from intended electrical and mechanical performance.
Q5: Why verify stackup and impedance before production release?
A5: Discrepancies between lamination diagrams and calculated values can result in impedance deviations. Confirmation ensures the manufactured board matches design expectations per relevant IPC guidelines.
Q6: How can designers avoid V-CUT and outline processing issues?
A6: Account for tool access limitations in panel designs, avoiding sharp internal corners where routing tools cannot fully engage, and clearly specify panelization methods.
