Introduction
FR-4 PCBs form the backbone of most electronic projects for hobbyists, offering a reliable and cost-effective substrate for circuit assembly. Soldering these boards correctly ensures strong electrical connections that withstand everyday use and environmental stresses. Poor soldering can lead to failures like intermittent contacts or component damage, which frustrate builders and require rework. This guide explores FR-4 PCB soldering techniques, from manual methods suitable for home setups to industrial processes like reflow and wave soldering. By mastering these approaches, hobbyists can achieve professional-grade results in their prototypes and custom builds. Understanding the unique properties of FR-4, such as its glass transition temperature, helps prevent common pitfalls during the soldering process.

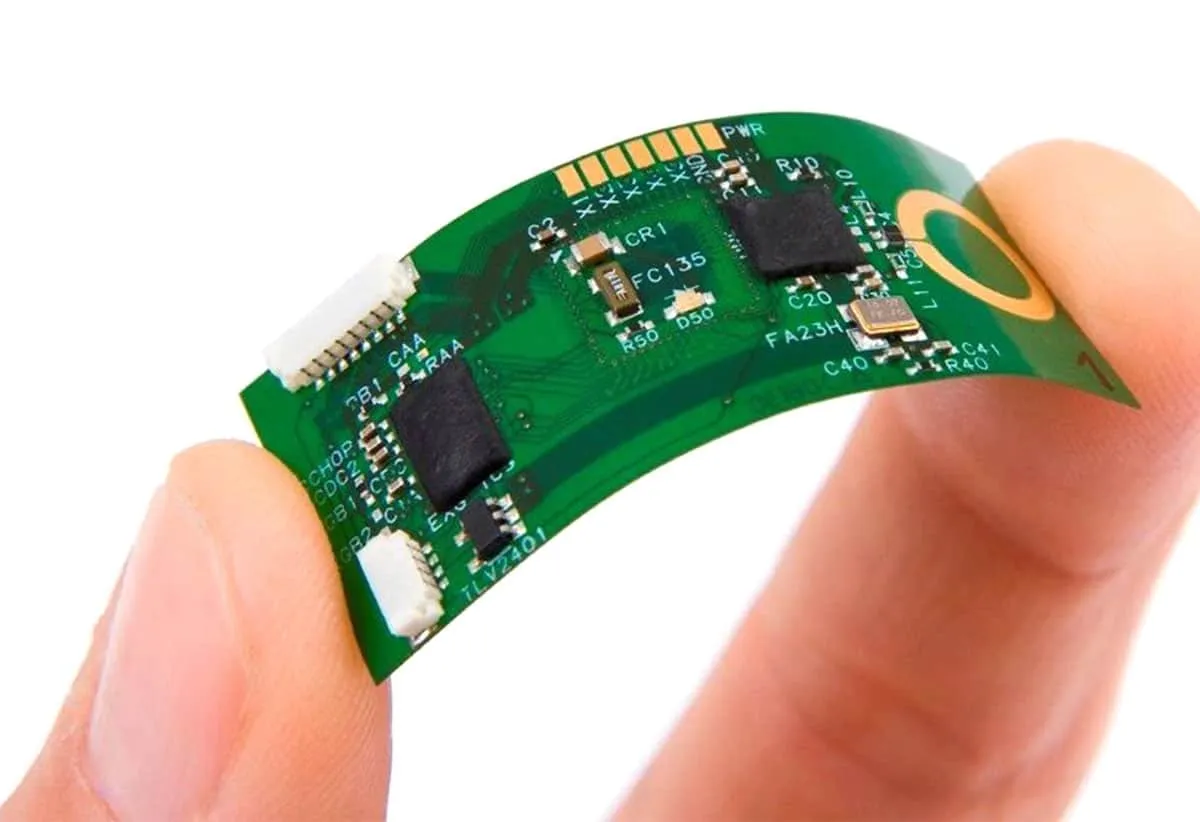

What Is FR-4 PCB Soldering and Why It Matters
FR-4 PCB soldering involves joining electronic components to the copper traces on FR-4 laminate using molten solder alloy. FR-4, a fiberglass-reinforced epoxy material, provides mechanical stability and insulation but requires careful heat management to avoid delamination or warpage. Reliable solder joints ensure low resistance, mechanical strength, and resistance to vibration, which is crucial for hobbyist projects like Arduino shields or audio amplifiers. Inadequate techniques lead to defects that compromise circuit performance, increasing failure rates in long-term applications. For electronic hobbyists, proper FR-4 PCB soldering translates to durable prototypes that perform consistently without frequent repairs. Adhering to guidelines from standards like IPC J-STD-001 helps maintain quality across different assembly methods. For a deeper dive into material selection, see our guide on FR1 vs FR2 vs FR3 vs FR4 PCB materials.
Technical Principles of FR-4 PCB Soldering
Soldering on FR-4 PCBs relies on the interplay of heat, flux, and solder to form metallurgical bonds between component leads and pads. Heat melts the solder, which wets the surfaces after flux removes oxides, creating an intermetallic layer for durability. FR-4's thermal expansion differs from metals, so controlled heating prevents stress cracks in the board or joints. In manual FR-4 PCB soldering, direct iron contact localizes heat, while wave and reflow methods apply uniform profiles across the entire board. Flux plays a key role by preventing oxidation during heating and improving flow. These principles apply universally, but FR-4's standard glass transition around industry norms demands profiles that stay below prolonged high temperatures.
Key FR-4 PCB Soldering Techniques
Below are the primary approaches hobbyists and professionals use to solder FR-4 PCBs effectively. Learn advanced SMT-specific tips in our comprehensive FR-4 PCB soldering guide.

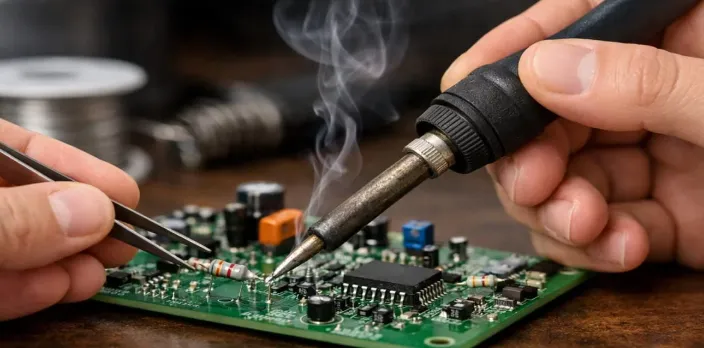

FR-4 PCB Manual Soldering
Manual soldering suits hobbyists for through-hole and surface-mount components on FR-4 PCBs, using a temperature-controlled iron for precision. Start by applying flux to pads and leads to clean surfaces, then add a small amount of solder wire while heating the joint evenly. Hold the iron tip at the pad-lead interface for a few seconds until solder flows smoothly, forming a concave fillet. Avoid excessive heat to prevent FR-4 scorching or pad lift-off, which weakens the board structure. Clean residues post-soldering with isopropyl alcohol for longevity. This technique excels for low-volume builds, offering immediate visual inspection of joint quality.
FR-4 PCB Wave Soldering
Wave soldering immerses the bottom of a fluxed FR-4 PCB into a molten solder wave, ideal for high-volume through-hole assembly. The process includes flux application, preheating to activate flux and reduce thermal shock, and solder contact for rapid wetting. Preheat temperatures prepare the FR-4 board, minimizing warpage from the solder pot's higher heat. Conveyor speed controls dwell time, ensuring complete fill without bridging. Post-wave cleaning removes flux residues that could cause corrosion over time. Though less common for hobbyists, understanding wave soldering aids in evaluating professionally assembled FR-4 PCBs.
FR-4 PCB Reflow Soldering

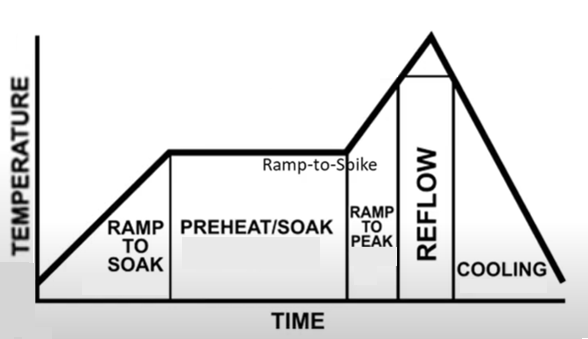

Reflow soldering heats the entire FR-4 PCB in an oven following a profile with preheat, soak, reflow, and cool-down phases for surface-mount devices. Solder paste, containing flux and alloy particles, is stencil-printed onto pads before component placement. The preheat ramps gently to evaporate solvents without bubbling, while the reflow peak melts the solder for joint formation. FR-4 boards benefit from profiles compliant with JEDEC J-STD-020 to handle moisture sensitivity and avoid popcorn effects. Hobbyists can replicate this with toaster ovens or hot plates, monitoring temperatures closely. Proper cooling solidifies joints without thermal stress.
FR-4 PCB Soldering Defects and How to Avoid Them
Common FR-4 PCB soldering defects include cold joints, bridges, and insufficient wetting, often from improper heat or contamination. Cold joints appear dull and grainy due to rapid cooling, leading to high resistance; prevent them by ensuring steady heat application per IPC J-STD-001 guidelines. Solder bridges connect adjacent pads, causing shorts, typically from excess solder or poor spacing; use minimal amounts and inspect visually. Tombstoning lifts small components during reflow from uneven heating on FR-4; balance paste volume and profiles mitigate this. Voids or dewetting occur without adequate flux, trapping air or repelling solder; select compatible flux types. Regular inspection using magnification catches issues early, saving rework time.
- Cold Joint — Cause: Insufficient heat or movement; Prevention: Steady iron contact, no disturbance.
- Solder Bridge — Cause: Excess solder; Prevention: Precise application, clean pads.
- Tombstoning — Cause: Uneven reflow heating; Prevention: Optimized temperature profile.
- Dewetting — Cause: Poor flux or dirty surfaces; Prevention: Proper flux, pre-cleaning.
Best Practices for FR-4 PCB Soldering Temperature and Flux
Control FR-4 PCB soldering temperature to match the alloy and board capabilities, starting low and adjusting based on joint formation. For manual work, use irons with adjustable settings to avoid exceeding FR-4 limits during prolonged contact. In reflow or wave, follow ramp rates that preheat gradually, preventing delamination. FR-4 PCB soldering flux selection depends on residue tolerance: no-clean for minimal post-work, water-soluble for thorough cleaning. Apply flux sparingly to prevent excess that traps moisture. Always store flux properly to maintain activity, and pair it with lead-free alloys common in modern components. These practices ensure reliable connections without compromising the FR-4 substrate. Surface finish choice also affects soldering outcomes—explore options in our article on FR-4 PCB surface finishes.
Troubleshooting FR-4 PCB Soldering Issues
When joints fail on FR-4 PCBs, systematic checks reveal root causes like oxidized pads or wrong tip size. Test continuity with a multimeter; high resistance signals cold joints, fixed by reheating with fresh flux. For bridges, wick away excess solder using braided copper and flux. If components desolder easily, suspect pad damage from overheating; reinforce with jumper wires if viable. Moisture in FR-4 can cause reflow defects, so bake boards before assembly if stored humidly. Document profiles and settings for repeatability in future projects. Patience and practice turn troubleshooting into second nature for hobbyists.
Conclusion
Mastering FR-4 PCB soldering techniques empowers hobbyists to build robust electronics with confidence. From manual precision to reflow profiles, each method offers tools for reliable connections when applied thoughtfully. Prioritizing flux, temperature control, and defect prevention aligns with industry best practices. Avoid common pitfalls through preparation and inspection for projects that last. Experiment safely within guidelines to refine skills. Reliable FR-4 PCB soldering elevates hobby projects to professional standards.
FAQs
Q1: What is the ideal FR-4 PCB soldering temperature for manual assembly?
A1: For FR-4 PCB manual soldering, use an iron set between typical ranges for the solder alloy, ensuring the joint reaches melt point without scorching the board. Preheat components slightly if needed. Monitor for smooth flow and shiny finish. Adjust based on tip size and joint mass. Follow IPC J-STD-001 for process controls to avoid defects like cold joints.
Q2: How does FR-4 PCB soldering flux improve connections?
A2: FR-4 PCB soldering flux removes oxides from copper pads and leads, allowing solder to wet surfaces evenly. It prevents new oxidation during heating and aids flow into tight spaces. Choose no-clean types for hobbyist ease, cleaning only if residues affect performance. Proper application reduces defects like dewetting. Always match flux to solder type for best results.
Q3: What are common FR-4 PCB soldering defects in reflow processes?
A3: In FR-4 PCB reflow soldering, tombstoning and voids often occur from uneven heating or excess paste. Bridges form if stencil apertures are too large. Prevent by optimizing profiles per JEDEC J-STD-020 and inspecting paste deposition. Post-reflow X-ray or visual checks catch issues early. Controlled cooling minimizes stress on FR-4.
Q4: Can hobbyists perform FR-4 PCB wave soldering at home?
A4: FR-4 PCB wave soldering requires specialized equipment like solder pots, making it challenging for home use. Manual dipping mimics it for small batches, with flux and preheat. Focus on safety with ventilation and stable setups. Professional services handle volumes better. Learn principles to assess assembled boards.
References
IPC J-STD-001 — Requirements for Soldered Electrical and Electronic Assemblies. IPC, 2017
JEDEC J-STD-020E — Moisture/Reflow Sensitivity Classification. JEDEC, 2014
IPC-A-610 — Acceptability of Electronic Assemblies. IPC, 2020
