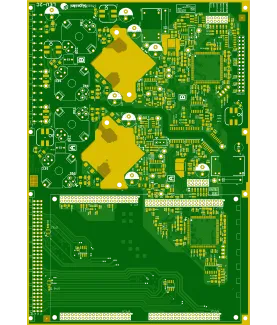

6 Layer FR4 PCB Production Record #FR4-20260119-027
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| PCB Type | FR4 PCB | Quantity | 5 pcs |
| Layers | 6 Layers | Board Type | Single PCB |
| Dimensions | 233 x 160.15 mm | Copper Weight | 1oz |
| Thickness | 1.6 mm | Min Track / Spacing | 5/5mil |
| Surface Finish | ENIG (Immersion Gold) | Min Hole Size | 0.3mm↑ |
| Solder Mask | Green | Silkscreen | White |
| Stack-up | Default | Impedance Control | No |
For this production run of five 6-layer FR4 PCBs, boards were processed with dimensions of 233 x 160.15 mm, 1.6 mm thickness, and 1 oz copper. The 5/5 mil minimum track and spacing presented tighter geometry that required precise inner layer imaging, accurate etching, and careful layer stack alignment to maintain feature integrity throughout the multilayer build. Following the default stackup without impedance control, high pressure lamination ensured solid bonding between layers.
Green solder mask and white silkscreen were applied to provide clear component identification. The surface was finished with immersion gold ENIG through electroless nickel deposition and gold immersion, delivering a durable and oxidation-resistant pad surface suitable for assembly. Every board then underwent comprehensive electrical testing to verify connectivity.
The manufacturing was completed over 11.1 days, resulting in a consistent set of boards that met all specified requirements for this larger-format 6-layer design with ENIG finish.
Six layer FR4 boards provide optimized routing density and power distribution. They require precise lamination and plating process control to maintain yield and reliability.
Real multilayer FR4 PCB CAM review cases covering stack-up confirmation, impedance control, copper balance, via tenting, and edge clearance EQs. Discover practical DFM best practices for 4-layer and higher boards to reduce engineering queries, prevent warpage, and improve first-pass yield.
