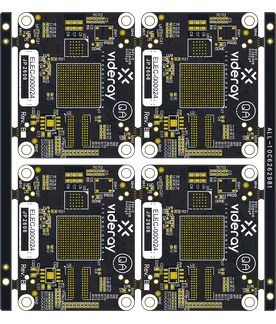

High Layer Count FR4 PCB Production Record #FR4-20260330-013

Start FR4 PCB Quote

PCB Specifications

Parameter Value Parameter Value
PCB Type FR4 PCB Quantity 100 pcs
Layers 10 Layers Board Type Panel PCB
Dimensions 50 x 40 mm Copper Weight 1oz
Thickness 1.6 mm Min Track / Spacing 5/5mil
Surface Finish ENIG (Immersion Gold) Min Hole Size 0.2mm
Solder Mask Matte Black Silkscreen White
Stack-up Custom Impedance Control Yes

Manufacturing Timeline

Order Created
Jan 14 15:00
Files Ready
Jan 14 15:00
Engineering Review Completed
Jan 14 15:16
Payment down
Feb 06 22:27
Production Started
Feb 09 15:35
Production Completed
Mar 09 16:43
Progress: 0/6
Engineering Review time: 0.3 h
Production time: 28.1d

Logistics Information

Production Completed→Shipping : 2.8d
Carrier
UPS
Destination
UNITED STATES OF AMERICA
Shipping Method
Express Air
Shipping Time
Mar 12 11:13

Key Manufacturing Processes

01
Engineering Review
02
Stackup Impedance Engineering
03
Trace Width Compensation
04
Material Preparation
05
Inner Layer Imaging
06
Circuit Imaging & Etching
07
Layer Stack Alignment
08
High Pressure Lamination
09
Solder Mask Application
10
Electroless Nickel Deposition
11
Immersion Gold Deposition
12
TDR Impedance Testing
13
Electrical Testing

Manufacturing Summary

The order called for 100 panels of a 10-layer impedance controlled PCB built on FR4 with 1.6 mm thickness and 1 oz copper weight. Featuring a custom stackup, 5/5 mil minimum track and spacing, and 0.2 mm holes, the job demanded careful engineering. We completed stackup impedance engineering and applied trace width compensation during the imaging and etching stages to meet the specified impedance values accurately.



High pressure lamination secured layer alignment across the multilayer construction before proceeding to solder mask application in matte black with white silkscreen. The immersion gold ENIG surface finish was achieved through controlled electroless nickel deposition followed by gold immersion, providing reliable connectivity for this panelized run.



TDR impedance testing and comprehensive electrical testing followed on the completed panels. This execution for the 10-layer impedance controlled PCB with matte black soldermask resulted in all 100 panels meeting the tight tolerances and performance criteria without deviation.
